90-Degree Duplex Connector 3/8", Die Cast Zinc
SKU: #329516
Part: #830-DC2
UPC: 781747158307
90-Degree Duplex Connector 3/8", Die Cast Zinc
SKU: #329516
Part: #830-DC2
UPC: 781747158307
Description

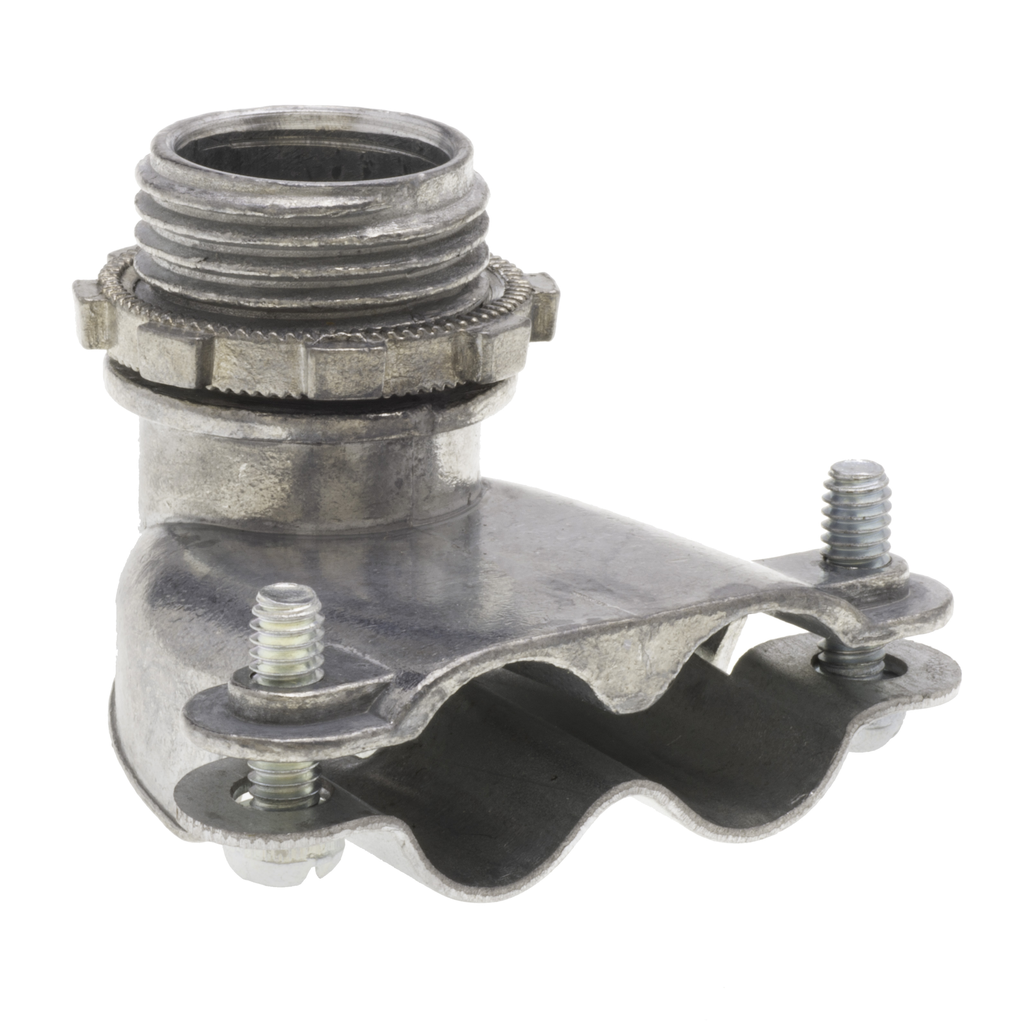

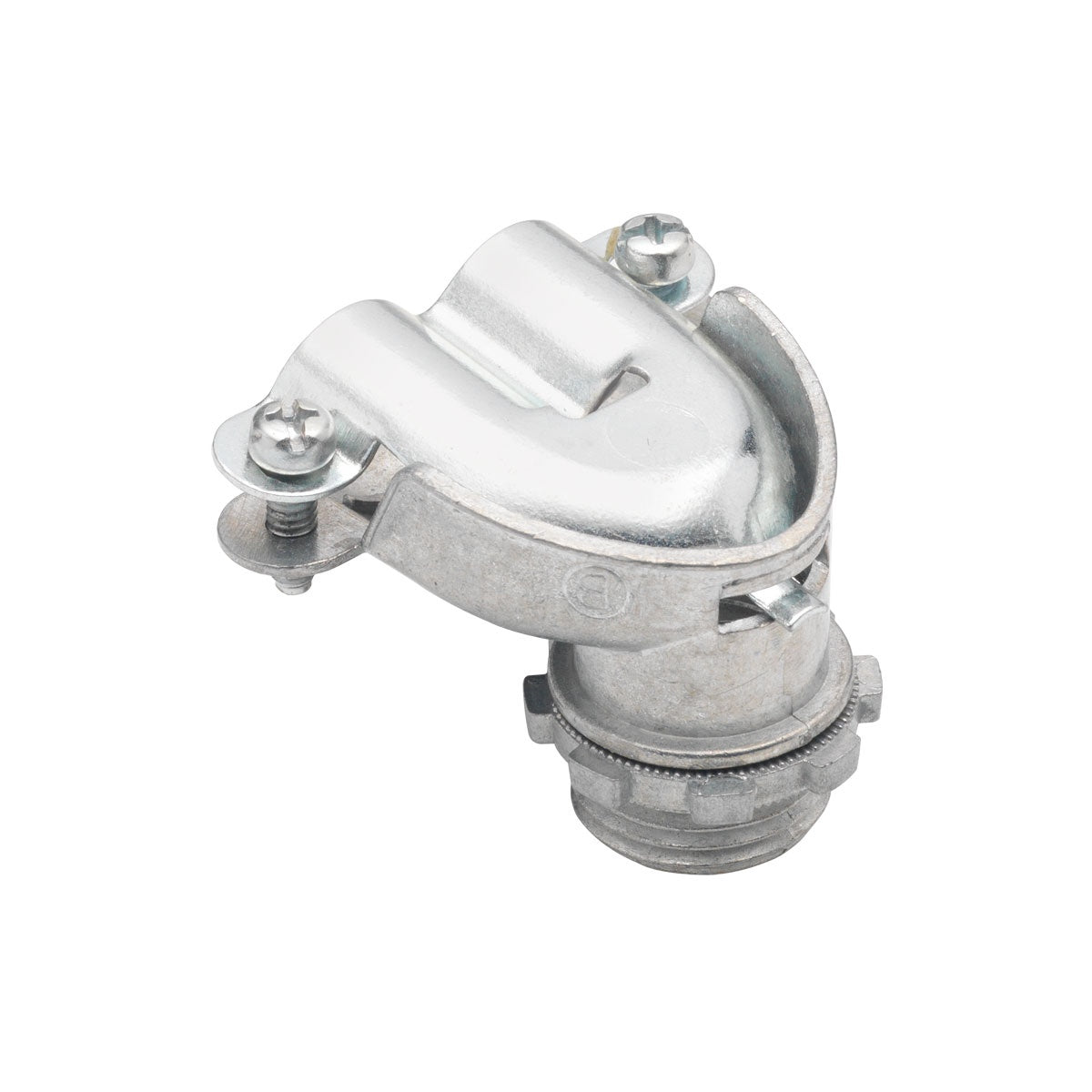

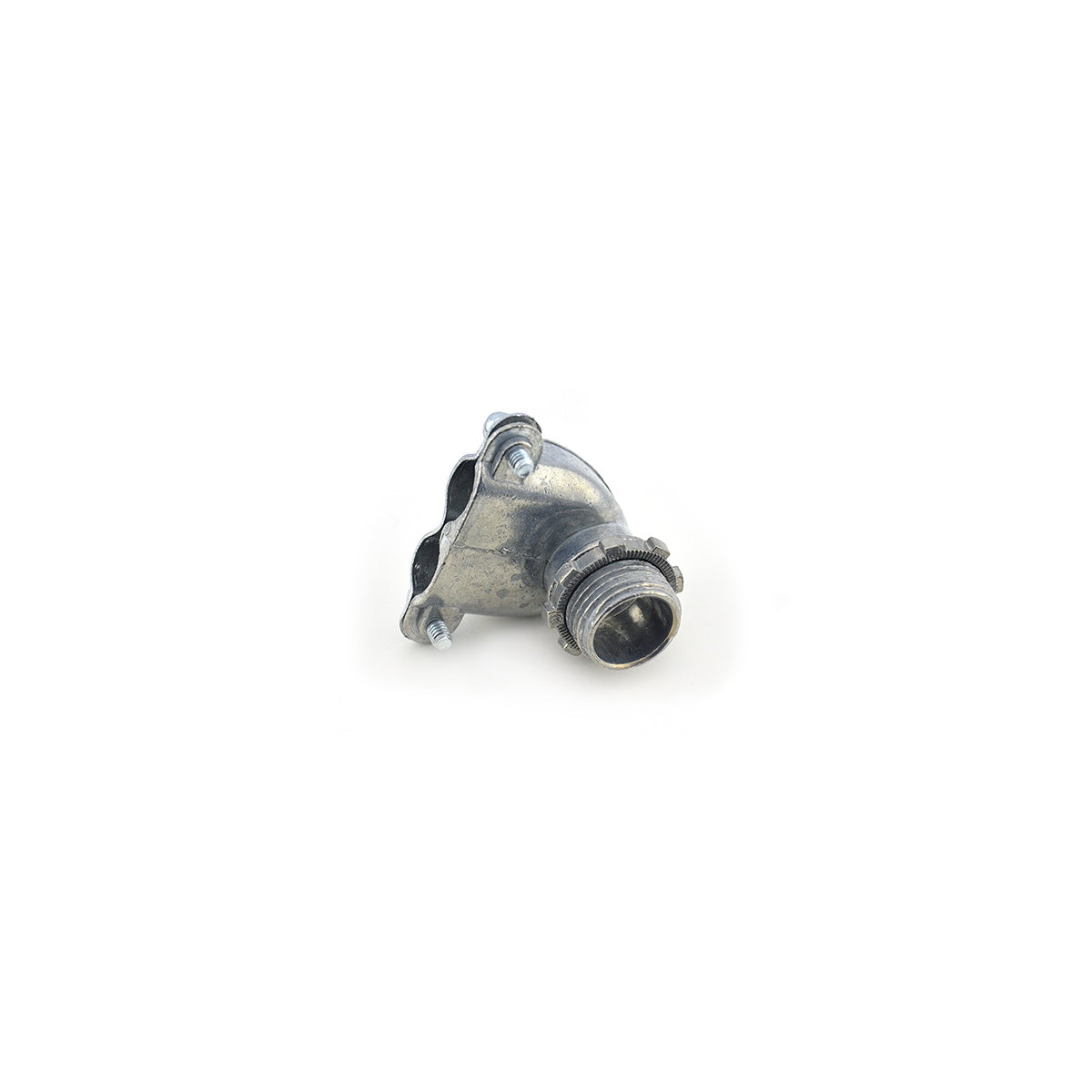

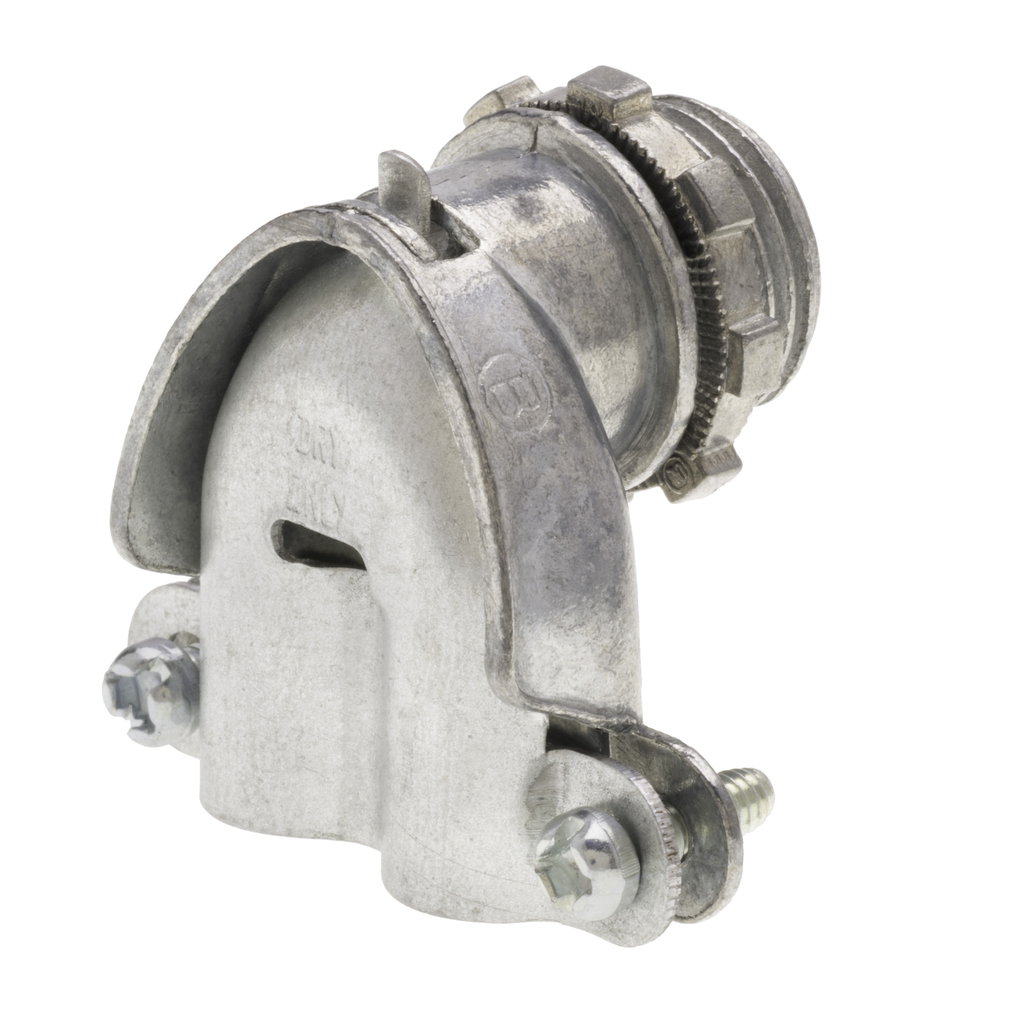

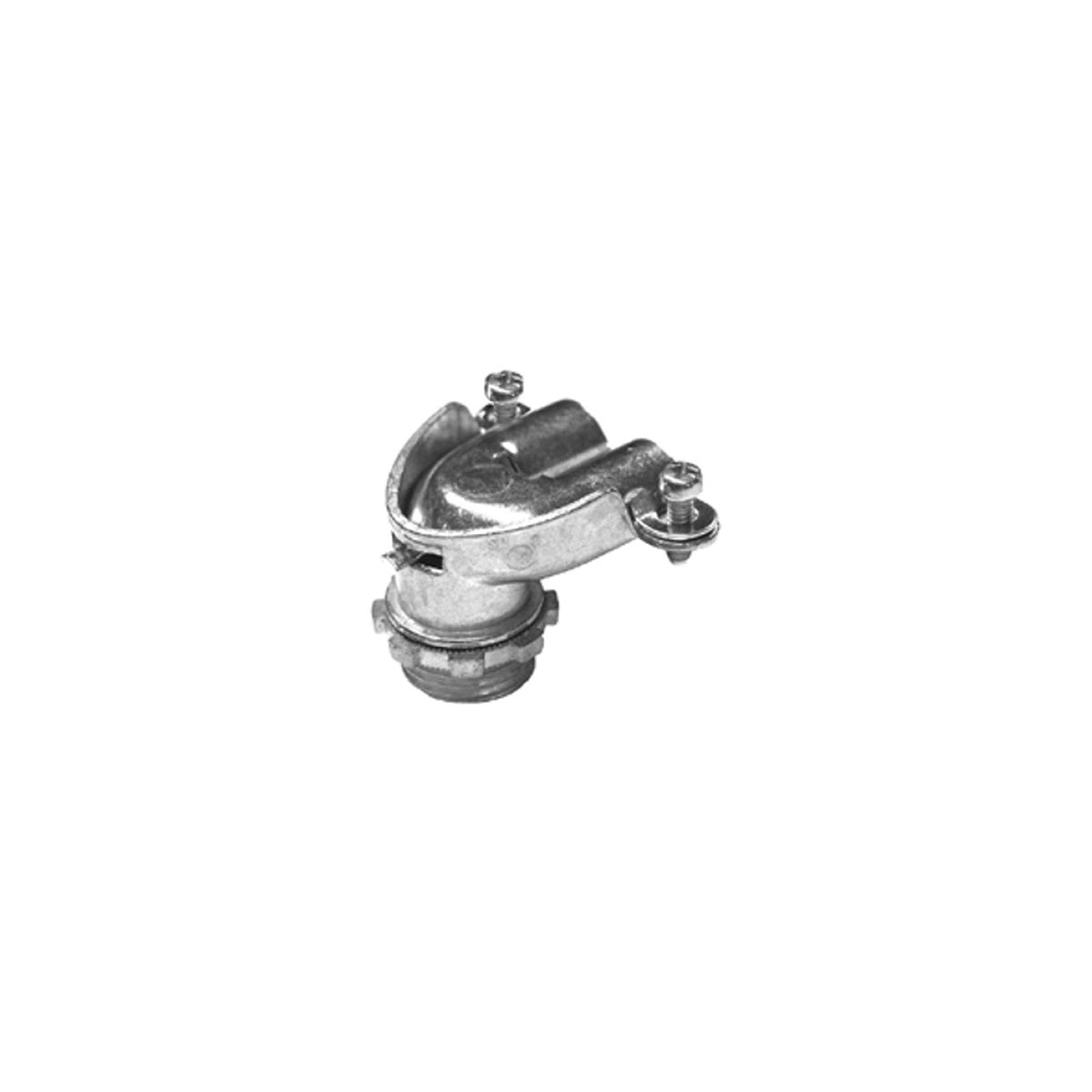

90-Degree Duplex Connector 3/8" Die Cast Zinc
The 90-Degree Duplex Connector by Bridgeport Fittings is designed to connect two individual lengths of flexible metal conduit or AC/MC/HCF cable to an electrical box or enclosure at a 90-degree angle. Suitable for use with 3/8" steel or aluminum flexible metal conduit, it accommodates cable diameters ranging from 12/2 (.44") to 10/3 (.61"). This product is ideal for electrical distributors and switchgear suppliers seeking reliable conduit connections in lighting solutions and wire and cable installations.
Specifications
- Material: Zinc Die Cast
- Finish: Ball Burnish, Mirror Smooth
- Trade Size: 3/8"
- Conductor Range: 12/2 - 10/3
- Length: 1.5 in
- Width: 1.25 in
- Depth: 0.615 in
- Number of Conductors: 1 Cable
- Product Weight: 0.1315 lbs
- Manufacturer Part #: 830-DC2
- Country of Origin: China
- UL File Number: E20534
- Federal Specification Number: A-A-50552
- UL Standard: UL-514B
- NEMA Standard: FB-1
Features
- Duplex design allows connection of two conduit runs to a single knockout
- Die cast zinc construction provides excellent corrosion resistance for harsh environments
- Steel cover protects and secures conduit or cable
- Includes two screws for secure installation
- Compatible with 3/8" flexible metal conduit and 12/2 to 10/3 AC/MC/HCF cable
- Ball burnish finish ensures a mirror-smooth surface
- Designed for quick and secure connection to electrical boxes or enclosures
