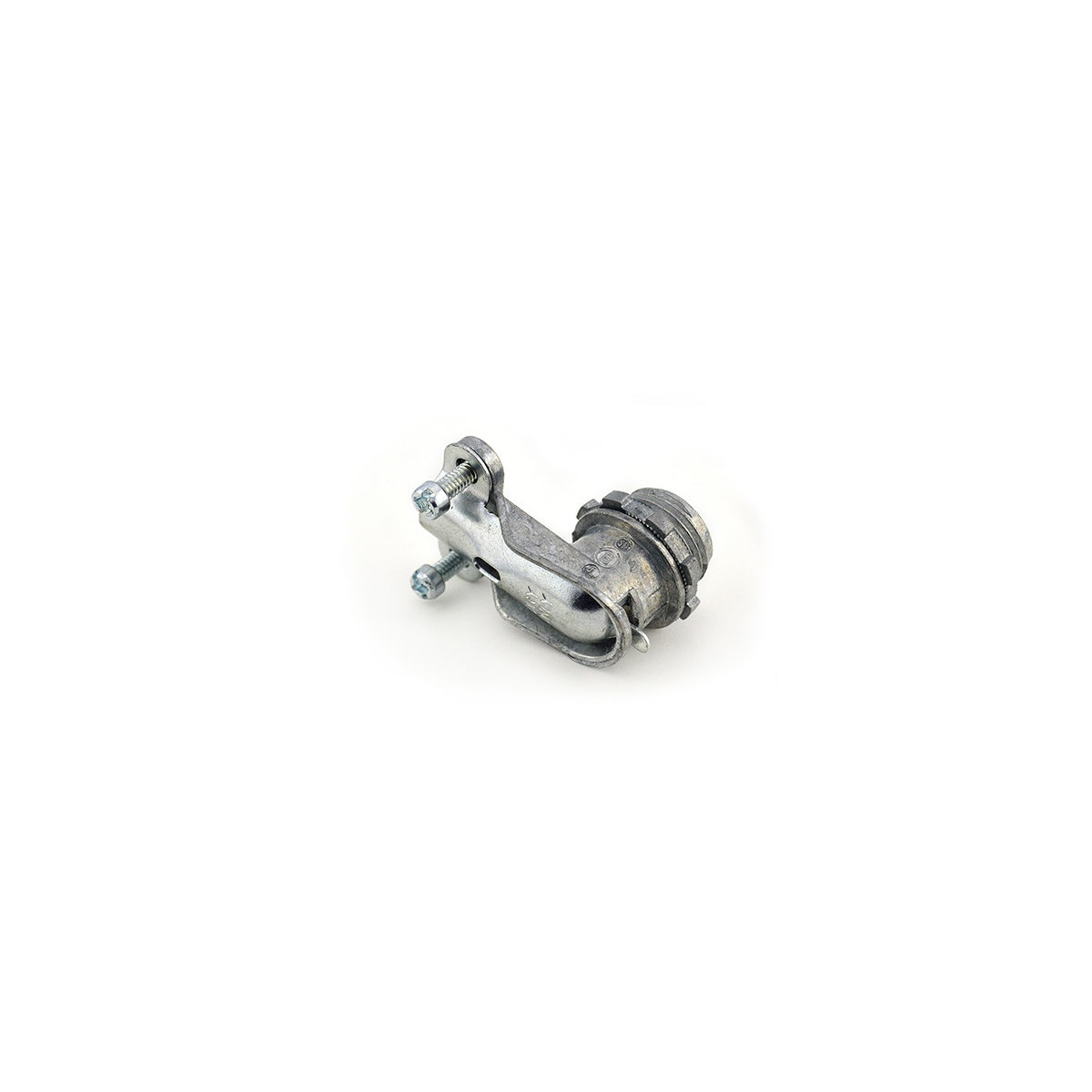

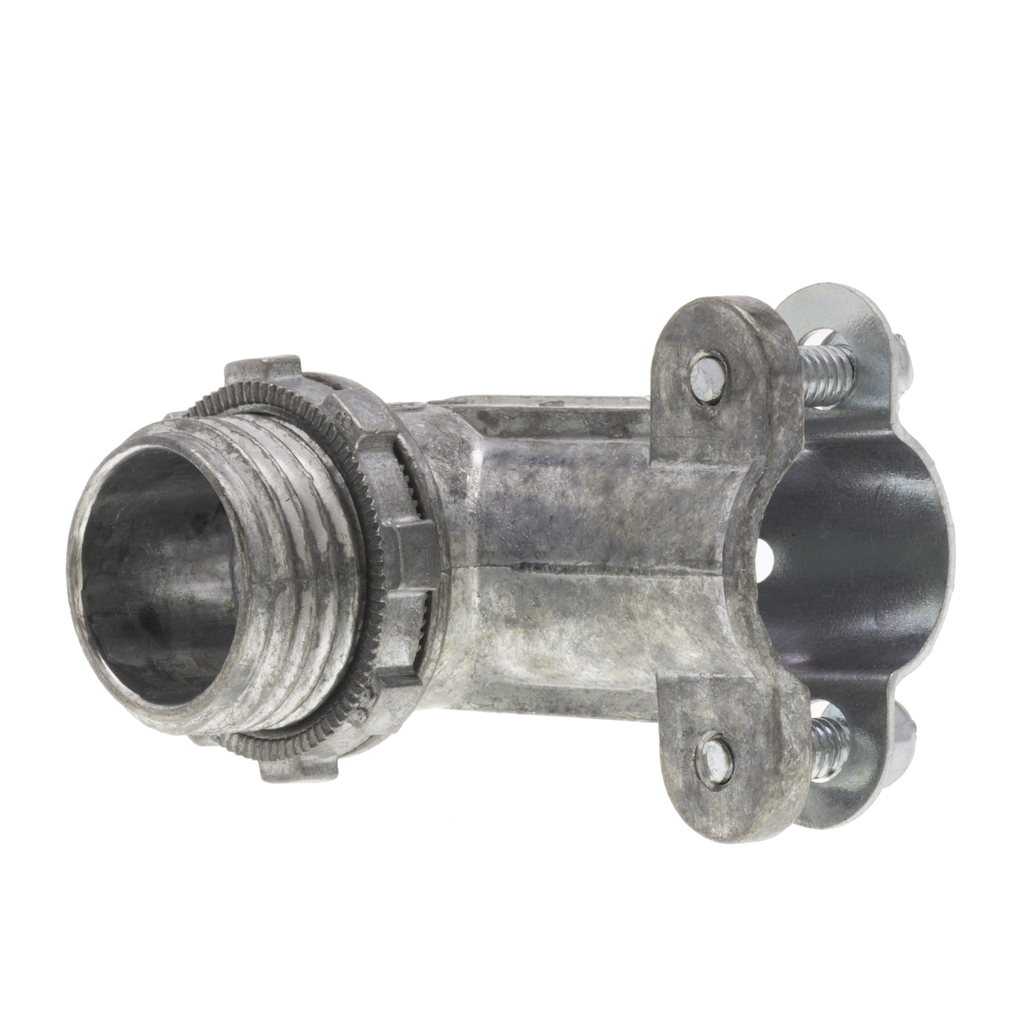

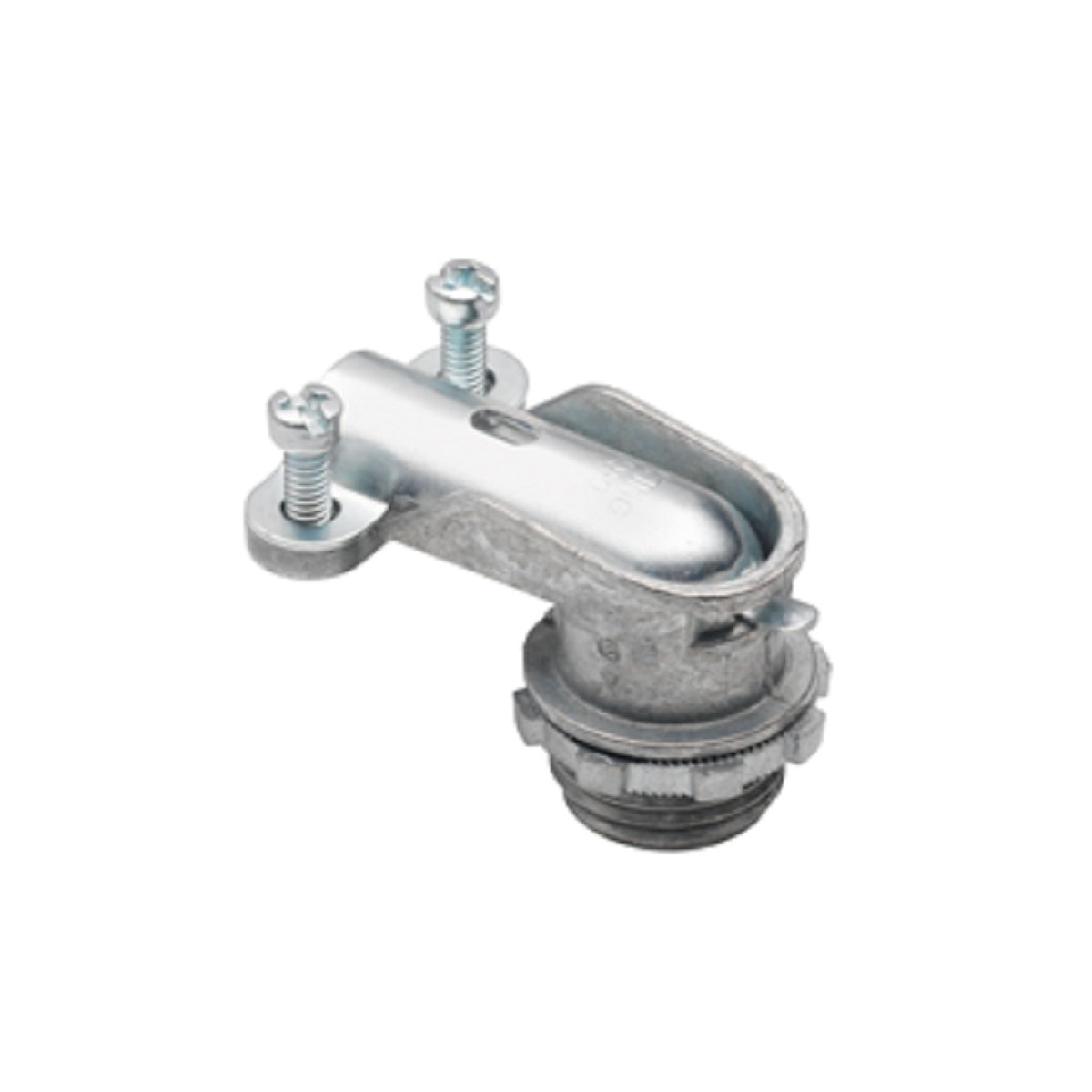

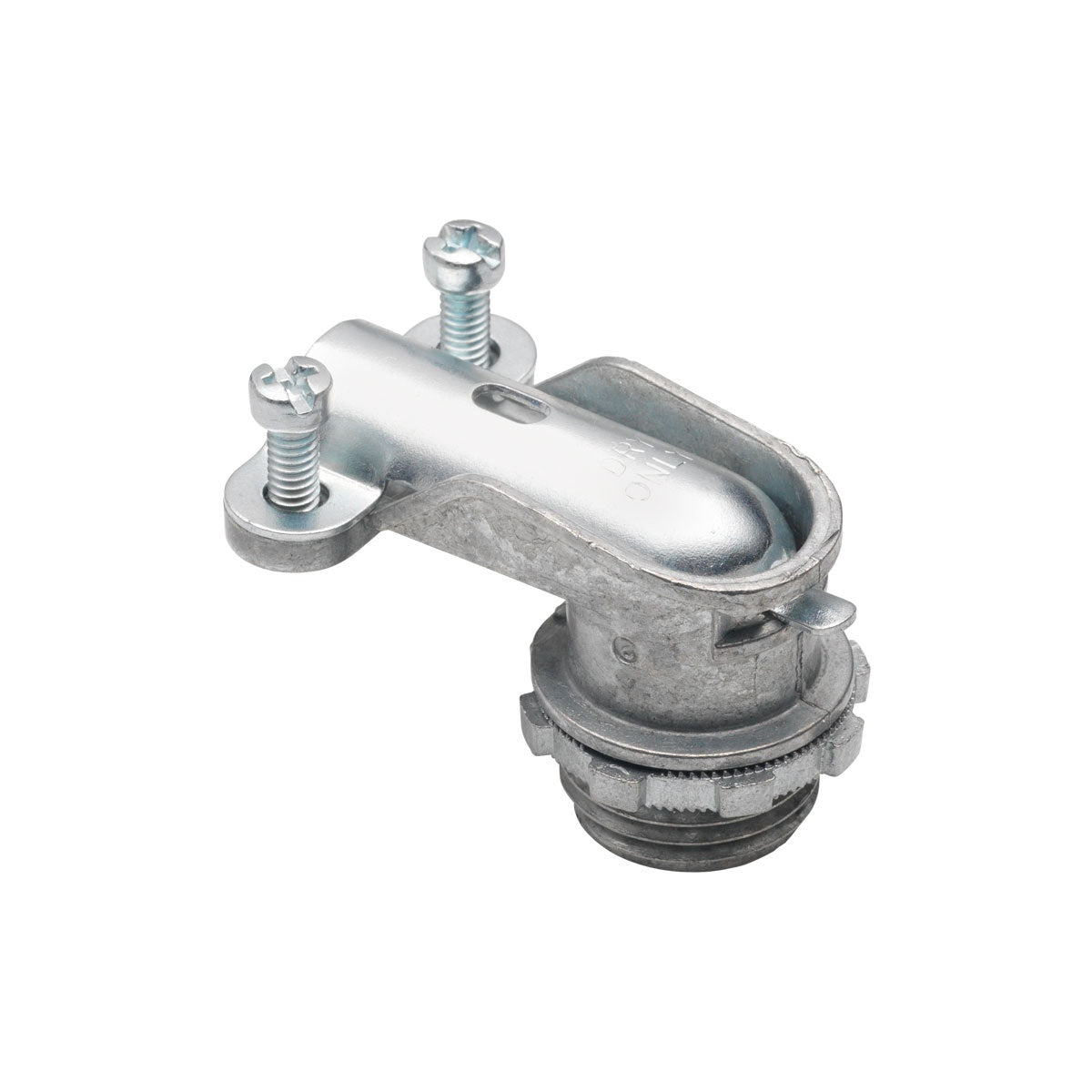

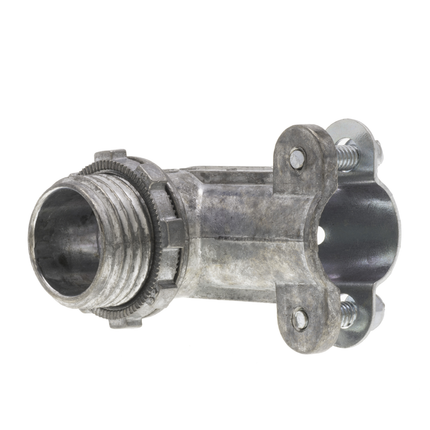

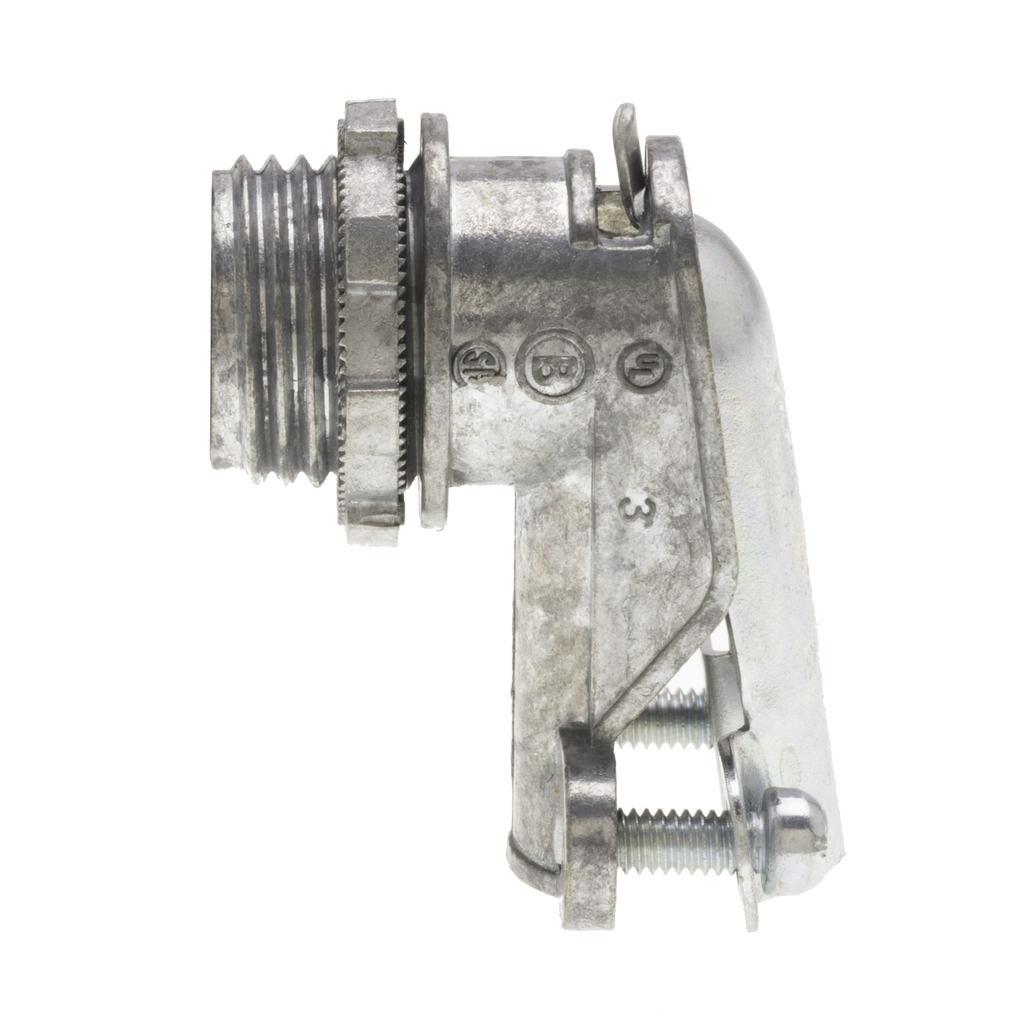

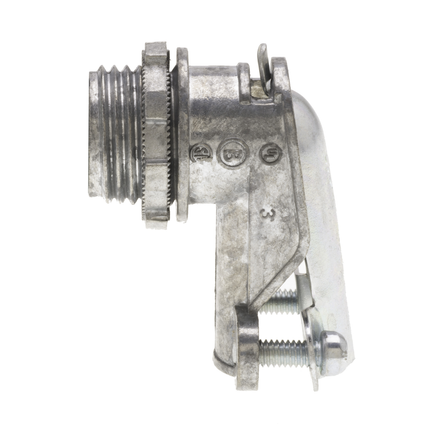

90-Degree Connector 3/8" Die Cast Zinc for Flexible Metal Conduit

The Bridgeport Fittings 90-Degree Connector 3/8" is designed to connect flexible metal conduit (FMC), AC, MC, and MC-PCS cables to electrical boxes or enclosures at a right angle. This die cast zinc fitting provides a durable and corrosion-resistant solution for secure conduit connections in electrical installations. Ideal for electrical distributors and switchgear suppliers, this connector supports cable ranges from 14/4 (.450") to 10/4 (.625") and fits a 1/2" knockout.

Specifications

• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: 801-DC2
• Material: Zinc Die Cast
• Finish: Ball burnish
• Dimensions: Length 1.375 in, Width 1.0625 in, Depth 0.625 in
• Conductor Range: 14/4 (.450" min) to 10/4 (.625" max)
• Number of Conductors: 1 Cable
• Weight: 0.0964 lbs
• Country of Origin: United States
• Made in USA: Yes
• Order Minimum: 1 unit

Features

• 90-degree fitting with steel cover for secure connection of flexible metal conduit or armored cable to boxes or enclosures
• Two-screw design with steel cover to fasten cable firmly to the connector
• Die cast zinc construction offers excellent corrosion resistance for harsh environments
• Compatible with flex trade size 3/8" conduit and 14/4 to 10/4 AC/MC/MC-PCS cables
• Includes Bridgeport‚Äôs patented locknut for fastening connector to box knockout
• Ball burnished finish enhances durability and appearance
