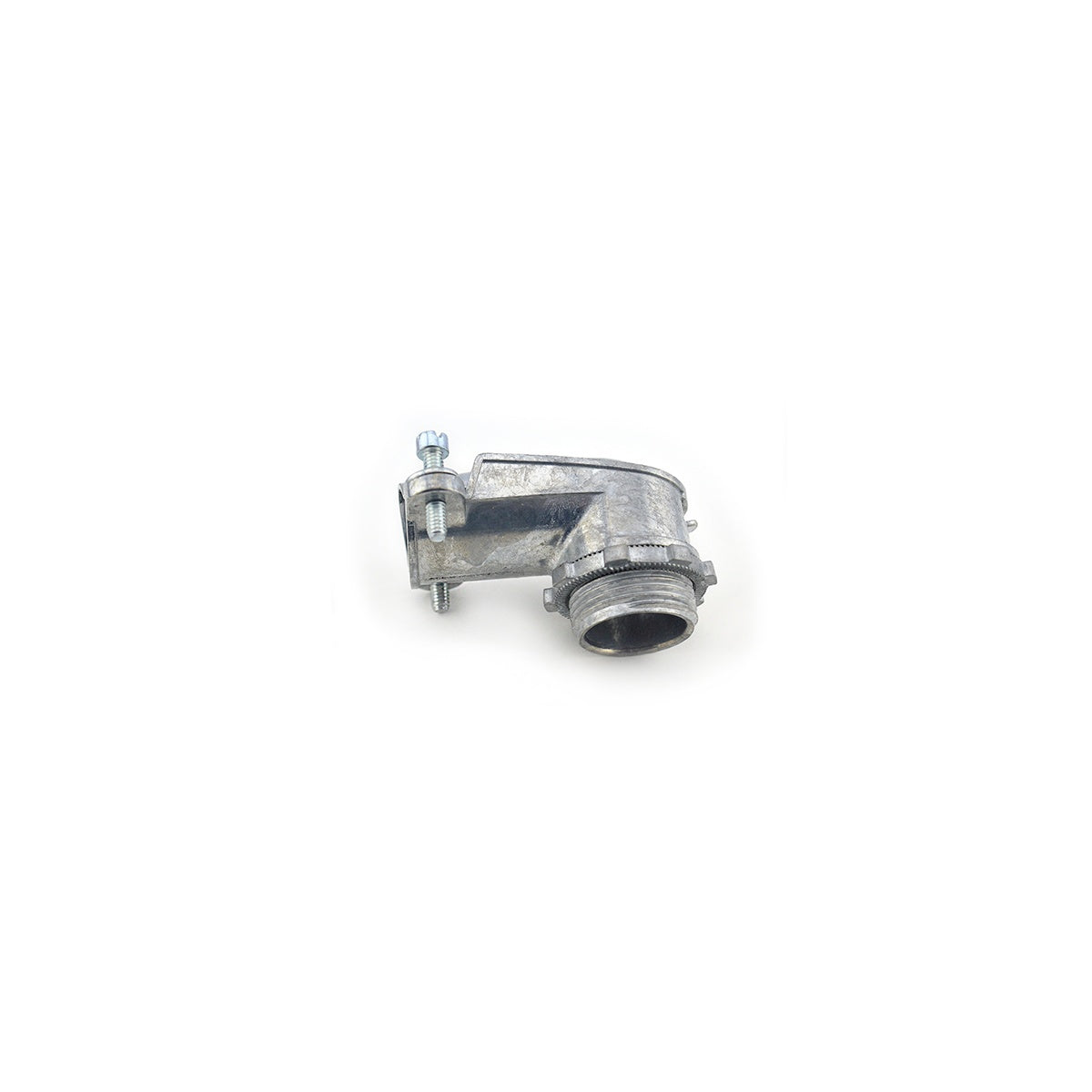

90-Degree Connector 3/4", Die Cast Zinc - Flexible Metal Conduit Fittings

The Bridgeport Fittings 806-DC2 3/4" 90-Degree Connector is designed for securely joining flexible metal conduit (FMC) or AC/MC cable to electrical boxes or enclosures at a right angle. This connector facilitates reliable conduit and cable connections for electrical distributors and switchgear suppliers, ensuring compliance with industry standards. It is suitable for flex trade size 3/4" conduit or cables with diameters ranging from 0.875" to 1.000" when installing into a 3/4" knockout.

Specifications

• Material: Zinc Die Cast
• Finish: Ball burnish
• Dimensions: Length 1.9375 in, Width 1.75 in, Depth 0.812 in
• Conductor Range: 0.875" - 1.00"
• Number of Conductors: 1 Cable
• Product Weight: 0.2360 lbs
• Manufacturer: Bridgeport Fittings
• Manufacturer Part #: 806-DC2
• Country of Origin: United States
• Made in USA: Yes
• Order Minimum Quantity: 1

Features

• 90-degree angle design for connecting MC/FMC cable to boxes or enclosures
• Die cast zinc construction provides excellent corrosion resistance for harsh environments
• Steel cover with two set screws securely fastens conduit or cable to connector
• Legendary locknut ensures firm attachment to box knockout
• Compatible with flexible metal conduit and armored cable within specified diameter range
• Ball burnish finish enhances durability and appearance
