9 Watt T8 LED; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1150 Lumens; Type B; Ballast Bypass; Double Ended Wiring
SKU: #258863
Part: #S29902
UPC: 045923299025
9 Watt T8 LED; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1150 Lumens; Type B; Ballast Bypass; Double Ended Wiring
SKU: #258863
Part: #S29902
UPC: 045923299025
Description

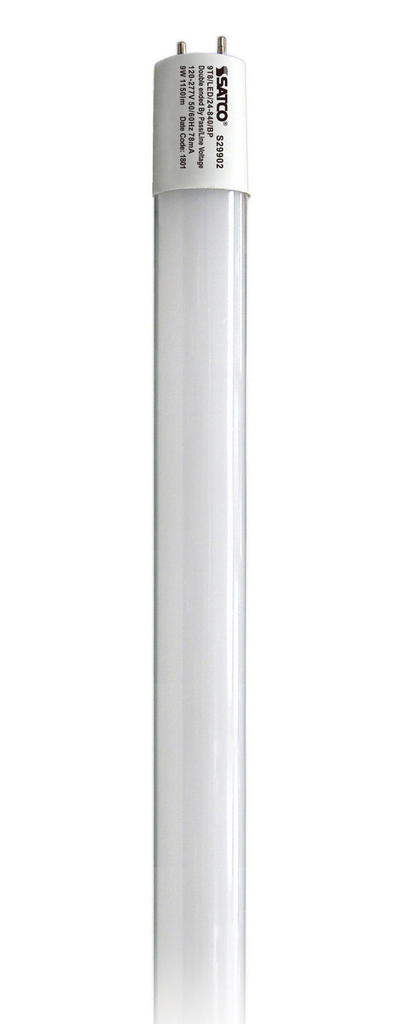

9 Watt T8 LED Tube – Energy Efficient Lighting Solutions
This 9 Watt T8 LED tube by Satco is designed for use in electrical distribution and lighting solutions requiring ballast bypass installations. It provides efficient, cool white illumination suitable for commercial and industrial applications where reliable, long-lasting linear LED lighting is needed. The tube features a medium bi-pin base and operates with existing wiring on both shunted and non-shunted sockets, making it compatible with typical wire and cable setups in switchgear and lighting systems.
Specifications
- Manufacturer Part #: S29902
- Wattage: 9W
- Length: 24 In.
- Lumens: 1150 lumens
- Color Temperature: 4000 kelvins (Cool White)
- Beam Spread: 210°
- Finish: Frosted
- Lens Material: Glass
- Base Type: Medium Bi Pin (G13)
- Amperage: 0.075-0.032 amperes
- Average Rated Life: 50,000 hours
- Operating Temperature: -20°C to +45°C
- Power Factor: 0.9
- Ballast Type: Type B (Ballast Bypass)
- CRI: 82
- Weight: 0.24 lb.
- Technology: LED
- Safety Listing: cULus Classified
- Location Rating: Damp
- DLC Approved: Yes
- RoHS Compliant: Yes
- FCC Compliant: Yes
- NSF Approved: Yes
Features
- Double-ended wiring for ballast bypass applications
- Built-in shock resistant circuit ensures safety; tube is not live until both ends are installed
- Frosted glass tube for even light diffusion
- Approved for use with tube guards
- Compatible with existing wiring on both shunted and non-shunted sockets
- 5 Year Limited Warranty
- Energy efficient replacement for 17W fluorescent tubes
