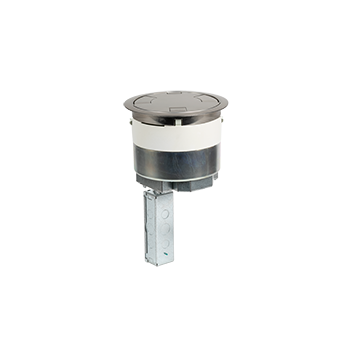

8IN UNWIRED SURF STYLE ASSEMBLY SN SATIN NICKEL Poke-Thru Device

The Evolution Series 8” Poke-Thru Device by Wiremold provides recessed access to power, communications, and A/V services below floor level, ensuring maximum device protection. Suitable for retrofit and new construction, this device is ideal for meeting rooms, classrooms, healthcare facilities, and commercial buildings with open-space architecture. It features a durable metal cover with sliding doors for neat cable egress, reducing tripping hazards. This product supports configurable service placement within five gangs of capacity, accommodating the specific needs of your workspace.

Specifications

• Product Weight: 11.7 lbs
• Dimensions: 9.25 in (Width) x 16.25 in (Height) x 9.25 in (Length)
• Cubic Capacity: 2578.88 in¬≥
• Cable Entry: Knockouts
• Construction: Assembled
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Wiremold
• Manufacturer Part #: 8ATC2SN
• UPC: 786564096825

Features

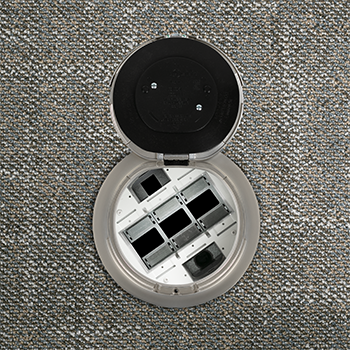

• Five gangs of recessed compartments, each recessed 4" below floor level for device protection

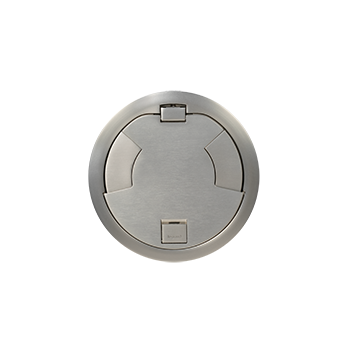

• Durable die-cast aluminum cover with satin nickel finish, designed to match any space

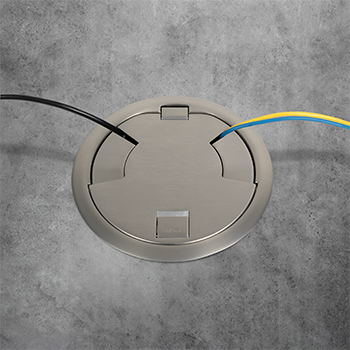

• Sliding egress doors lock open and automatically close around cables to minimize opening size and reduce trip hazards
• Low-profile surface style cover suitable for finished floor surfaces including carpet, tile, wood, polished concrete, or terrazzo
• ‚ÄúStep-on-it‚Äù installation for quick and easy setup without additional fasteners or a second installer
• Pre-pour sleeve included for positioning before concrete pouring, eliminating coring labor and costs
• TopGuard‚Ñ¢ protection meets and exceeds UL scrub water exclusion requirements for tile, carpet, and wood floors
• Meets ADA Accessibility Guidelines with beveled trim flange designed for floor level transitions
• UL Listed and Classified for up to 2-hour fire rated floors, maintaining the fire classification of the floor
• Compatible with Legrand AVIP Series, Extron Electronics MAAP and AAP Series devices, and other A/V manufacturer decorator style devices

Downloads & Links

• Poke-Thru Flip Covers Brochure
• Evolution Series 8"" Poke-Thru Devices"
• Open Spaces Brochure
• cULus Fire Classification
• Evolution Series Poke-Thru Div 16
• BIM Models Evolution Series 8 Poke-Thru Devices
• Evolution Series Poke-Thru Devices Brochure
• Evolution Series Poke-Thru - 6AT, 8AT, 10AT | Div 26"
• Evolution Series 8"" Poke-Thru Devices"
• Evolution Series Sell Sheet
• Evolution Series 8" Poke-Thru Devices BIM Device Plate
• ULC Fire Classification
• Evolution Series Poke-Thru Part List - COO
• Spec Sheet
• Evolution Series Poke-Thru Devices Pre-Pour Sleeve
• Evolution Series Recessed and Furniture Feed Poke-Thru Devices
