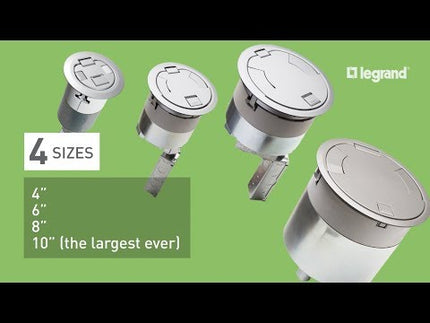

8AT Prewired Evolution‚Ñ¢ Poke Thru Device, Flush Style Cover, Nickel - Electrical Distributor Lighting Solutions

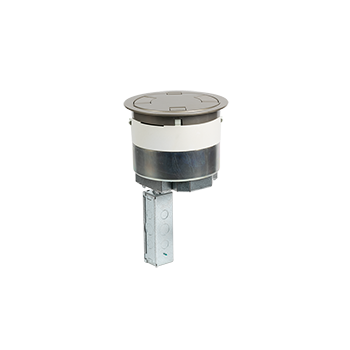

The 8AT Prewired Evolution‚Ñ¢ Poke Thru Device is designed for retrofit and new construction projects, providing recessed access to power, communications, and audio/video services below floor level. This device is ideal for a variety of commercial applications including kiosks, meeting rooms, training rooms, classrooms, healthcare facilities, and open-space architecture buildings. Suitable for installation in carpet, tile, wood, laminate, and concrete floor coverings, it ensures maximum protection and seamless integration with the environment.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 8AT2PNK
• Country of Origin: United States
• Made in USA: Yes
• Core Hole Size: 8 in
• Cubic Capacity: 24.5 in¬≥
• Dimensions (W x H x D): 9.25 in x 9.25 in x 16.25 in
• Cable Entry: Knockouts & Pass Through
• Product Weight: 14.07 lbs
• UPC: 786564089971
• Order Minimum: 1 unit

Features

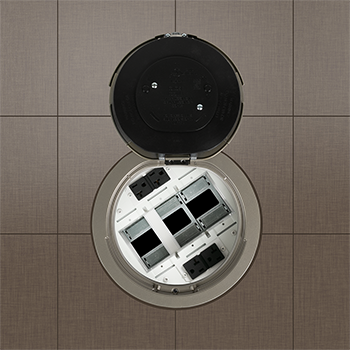

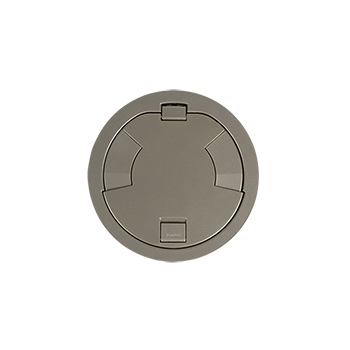

• Flush style cover available in brushed aluminum, satin brass, satin nickel, and multiple powder-coated finishes to match any space
• 5 gang capacity allowing flexible configuration of power, communications, and A/V services
• Low-profile metal covers with trip-resistant design for durability and safety
• Suitable for use in air handling spaces per National Electrical Code (NEC) Section 300-22(C)
• Compatible with carpet, tile, wood, laminate, and concrete floor installations
• UL Listed and Classified for use in 1-, 1 1/2-, or 2-hour fire-rated concrete floors and floors with suspended ceilings
• Designed to maintain fire classification when installed per manufacturer instructions
• Supports power circuits, data, and audio/video cables with specified conductor sizes and capacities
