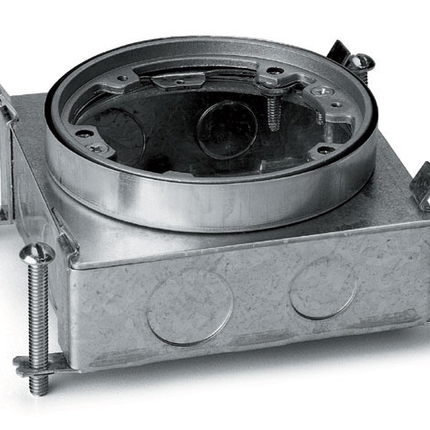

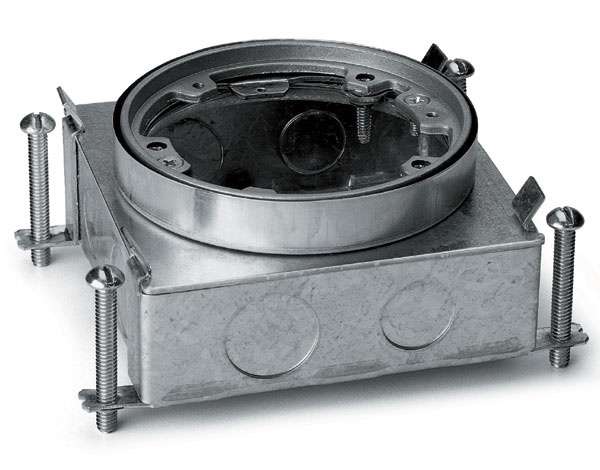

880 Series‚Ñ¢ Shallow Steel Single Service Floor Box - Floor Box for Electrical Distribution

Wiremold® 880 Series™ Shallow Steel Single Service Floor Box provides a flexible solution for power, A/V, or communication services in open-space areas. Designed for use by electrical distributors and switchgear suppliers, it is suitable for malls, shopping centers, airports, hospitals, and office buildings. The floor box supports single- and dual-service capability and is cULus Listed for installation in both on-grade and above-grade concrete construction.

Specifications

• Material: Steel
• Color: Silver
• Dimensions: 4.8 in (Width) x 4.8 in (Depth) x 2.44 in (Height)
• Cubic Capacity: 29.5 in¬≥
• Cable Entry: Knockouts
• Construction: Assembled
• Product Weight: 2.02 lbs
• Country of Origin: Mexico
• Manufacturer Part #: 885B

Features

• Single-service floor box designed for shallow installations
• Allows flexible power, A/V, or communication service provision
• Easy installation with adjustable screws to set concrete pour level
• Includes four adjusting screws for precise leveling during installation
• Compatible with conduit adaptors (not supplied)
• Anchoring options include securing with wire, nails, or screws depending on catalog number
• cULus Listed for safety and code compliance

Downloads & Links

• 880 Series Single-Service Floor Box
• 895 & 896 Series Floor Box Covers
• Spec Sheet
• 880 Series Floor Boxes
• OmniBox 885B Stamped Steel Floor Box BIM Model
