874-N5 Vibrating Horn for Industrial Signaling

The 874-N5 Vibrating Horn from Edwards Signaling is a surface mount audible signaling device designed for heavy-duty indoor use. It delivers low current consumption with high decibel output, making it suitable for industrial electrical distributors, lighting solutions providers, wire and cable applications, and switchgear suppliers requiring reliable signaling devices. The horn is supplied complete with a mounting plate for straightforward installation on various box types.

Specifications

• Operating Voltage: 120V AC
• Current: 0.13 amperes
• Mounting Type: Surface
• Housing Material: Heavy Duty Die-Cast
• Sound Output: Adjustable 88 to 113 dB at 1 meter (78 to 103 dB at 10 feet)
• Operating Range: -20% to +10% of nominal voltage

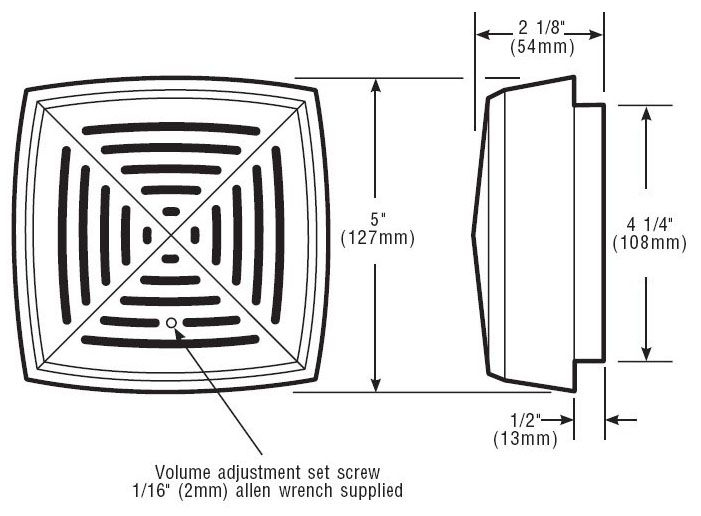

• Dimensions: 5" (127mm) height, 4 1/4" (108mm) width, 2 1/8" (54mm) depth, projects 2" (51mm) from mounting surface
• Weight: Approximately 2.6 lbs (net)
• Approvals: FM Approved

Features

• Low current consumption suitable for PLC-compatible systems
• Corrosion resistant finish for durability in industrial environments
• Volume adjustable via set screw with supplied 1/16" (1.6mm) allen wrench
• Completely assembled and ready for installation
• Mounts on single gang, 3 1/4" (83mm), 3 1/2" (89mm), 4" (102mm) octagon, or 4" (102mm) square boxes
