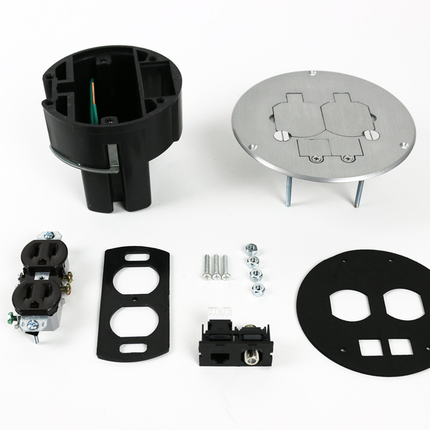

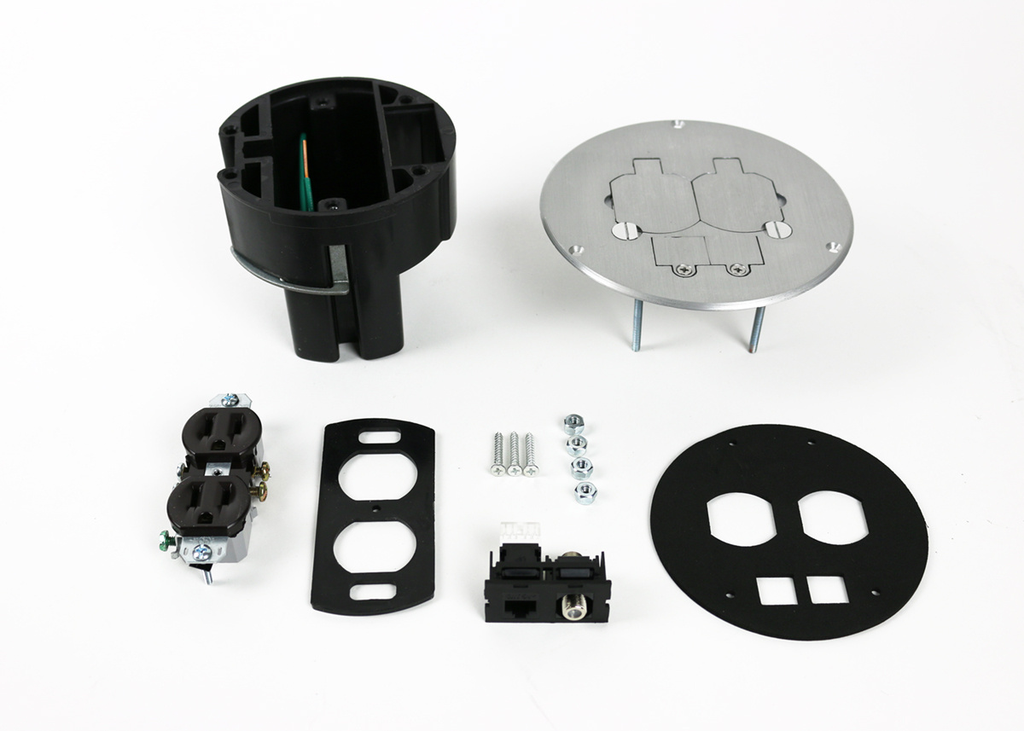

863DPCOMAL Series Dual Service Floor Box Kit - Residential Floor Box

The 863DPCOMAL Series Dual Service Floor Box Kit by Wiremold provides a compact and unobtrusive solution for power and communication needs in residential wood floor applications. Designed for electrical distributors and lighting solutions providers, this round floor box kit supports dual service capability, combining duplex power and communication ports in a single unit. It is ideal for open space areas and adaptable to wood, carpet, or tile-covered floors, making it suitable for wire and cable installations in residential settings.

Specifications

• Material: PVC
• Dimensions: 5.75 in (Width) x 5.75 in (Depth) x 4.0 in (Height)
• Cable Entry: Through Floor
• Construction: Not Assembled
• Weight: 1.32 lbs
• Country of Origin: China
• Manufacturer: Wiremold
• Manufacturer Part Number: 863DPCOMAL

Features

• Dual service box providing duplex power and two ports of communication services in one round PVC box
• Available with brushed aluminum duplex opening cover plate with two flip lids for aesthetic finish
• TopGuard protection to keep out water, dirt, and debris from the power compartment
• Individual communication device covers for protection when not in use
• Round design for better aesthetics and ease of installation without orientation concerns
• Suitable for residential wood floor applications including open floor plans
• UL listed to standards UL514A, 514C, 514D, and Canadian standard C22.2

Downloads & Links

• Spec Sheet
• Residential Floor Box
• 863 Series Wood Floor Boxes
• 863 Series Outlet Boxes - 863DRGFICOM, 863DRGFICOMAL, 863DPCOM, 863DPCOMAL"
