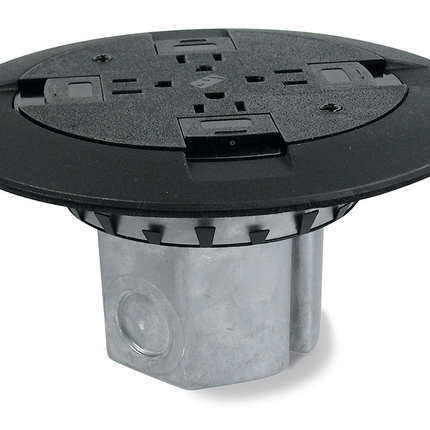

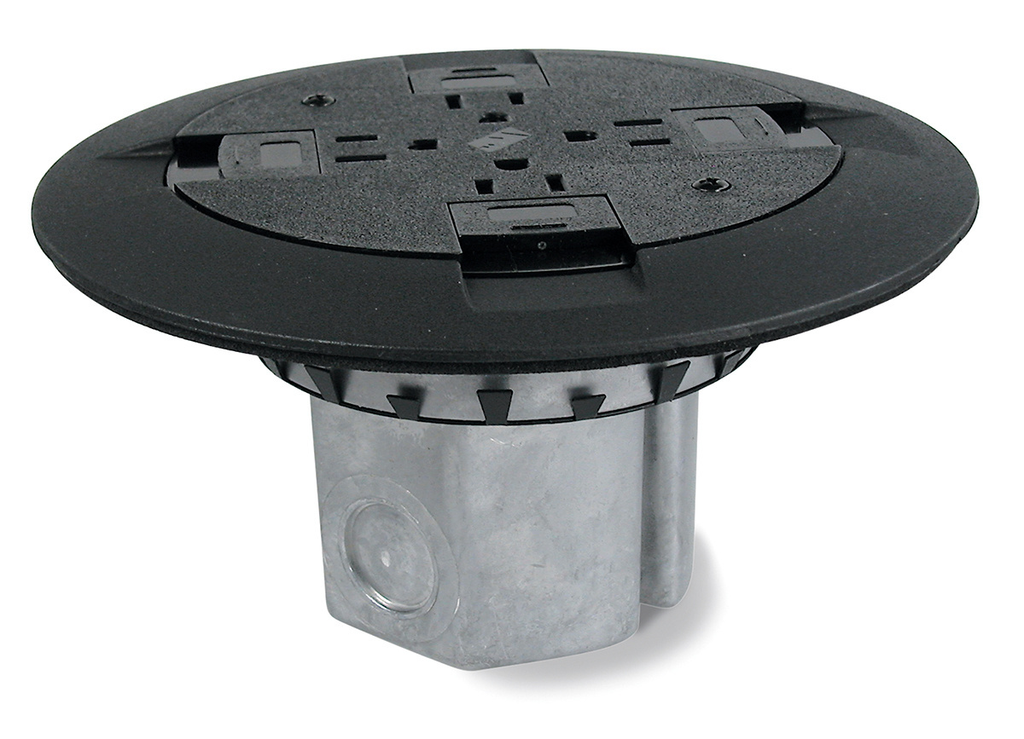

861QTC Series Wood Floor Box Assembly - Floor Box for Electrical Distribution

The 861QTC Series Wood Floor Box Assembly by Wiremold is designed to provide power or communication services directly at the point-of-use for open space applications. Suitable for use in wood and raised floor constructions, this floor box supports various cover options and is compatible with Wiremold flush-style poke-thru covers for power, communication, or pass-through applications. It is ideal for board rooms, commercial offices, and upscale residences. This product meets and exceeds UL scrub water exclusion requirements with its TopGuard protection, making it a reliable solution for electrical distributors and lighting solutions providers seeking durable wire and cable management in floor installations.

Specifications

• Material: Die-Cast Aluminum
• Construction: Assembled
• Cable Entry: Knockouts
• Cubic Capacity: 18 in³
• Country of Origin: Mexico
• Manufacturer Part #: 861QTCBK
• Product Weight: 2.5 lbs
• Order Minimum: 1 unit

Features

• Designed for use in both raised and wood-constructed floors
• Accepts Wiremold flush-style poke-thru cover assemblies in power, communication, or pass-through versions
• Compatible with 895 and 896 Series Single Service Covers in brass, brushed aluminum, and nonmetallic materials
• Includes TopGuard protection exceeding UL scrub water exclusion standards for tile, wood, and carpeted floors
• Knockout cable entry for flexible wiring system installation
• Assembled construction for ease of installation
