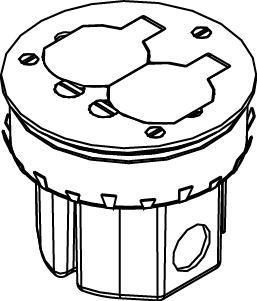

861DB Series Wood Floor Box Assembly - Floor Box for Electrical and Communication Wiring

The 861DB Series Wood Floor Box Assembly by Wiremold is designed to bring power and communication services directly to the point-of-use in open space applications. Ideal for electrical distributors and switchgear suppliers, this floor box is suitable for both raised and wood-constructed floors, supporting a variety of cover options and wiring configurations. It is commonly used in boardrooms, commercial offices, and upscale residences to provide convenient access to power and communication wiring while maintaining a clean floor surface.

Specifications

• Material: Die-Cast Aluminum
• Dimensions: 4.25 in (Width) x 4.25 in (Depth) x 3.5 in (Height)
• Cubic Capacity: 18 in¬≥
• Cable Entry: Knockouts
• Construction: Assembled
• Order Minimum: 1 unit
• Product Weight: 2 lbs
• Country of Origin: Mexico
• Manufacturer: Wiremold
• Manufacturer Part Number: 861DB

Features

• Compatible with Wiremold flush-style poke-thru cover assemblies for power, communication, or pass-through applications
• Accepts 895 and 896 Series Single Service Covers in brass, brushed aluminum, and nonmetallic materials
• Includes TopGuard protection that exceeds UL scrub water exclusion requirements for tile, wood, and carpeted floors
• Designed for easy installation in wood and raised floor constructions with 3/4" subflooring
• Suitable for use in air handling spaces in compliance with NEC section 300-22(C)
• Provides a secure, non-rotating fit ensuring receptacle alignment parallel or perpendicular to adjacent walls

Downloads & Links

• Wood Floor Box Sell Sheet
• 861 Series Outlet Boxes for Wood & Raised Floor
• Spec Sheet
• 861 Series Floor Boxes
