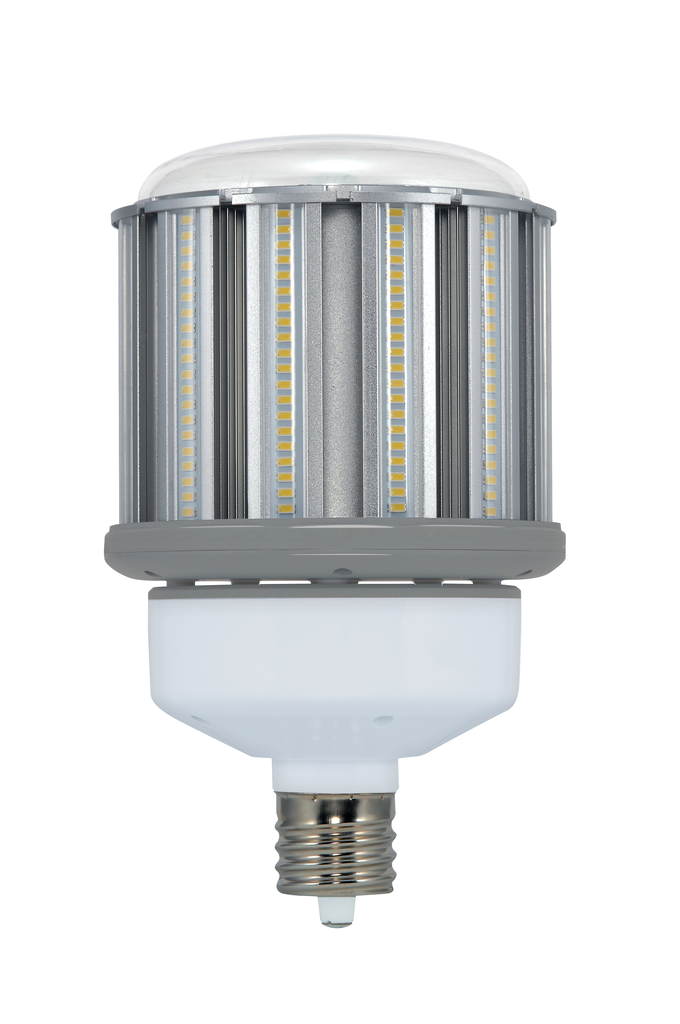

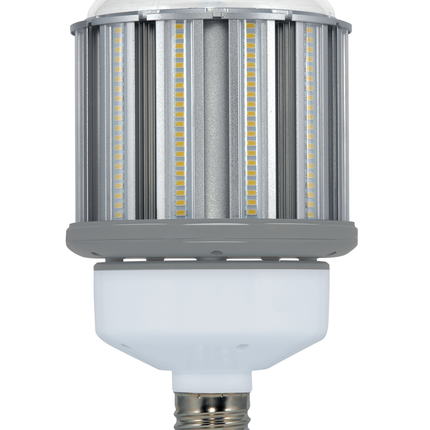

80 Watt LED HID Replacement - Satco S29395 Lighting Solution

This 80 Watt LED HID replacement lamp by Satco is designed for indoor lighting applications, providing an efficient alternative to traditional HID, CFL, and incandescent bulbs. With a mogul extended base and a wide voltage range of 100-277 volts, it is suitable for various commercial and industrial lighting needs. Electrical distributors and switchgear suppliers will find this product useful for retrofitting and new installations requiring durable, high-performance lighting solutions.

Specifications

• Manufacturer Part #: S29395
• Wattage: 80W
• Incandescent Equivalent: 400 watts
• Voltage: 100-277V
• Lumens: 10,640 lumens
• Color Temperature: 5000 kelvins (Natural Light)
• Beam Spread: 300¬∞
• IP Rating: IP65
• Operating Temperature: -20¬∞C to +40¬∞C
• Average Rated Life: 50,000 hours
• Amperage: 0.800-0.289 amperes
• Technology: LED
• Base Type: Mogul Extended (ANSI EX39)
• Lamp Shape: Corncob
• Finish: Clear
• Lens Color: Clear
• Housing Color: White/Grey
• Weight: 3.5 lb
• Safety Listing: cULus
• Location Rating: Wet
• DLC Approved: Yes
• Ballasting Requirements: Ballast Bypass - Direct wire only
• Power Factor: 0.9
• Surge Protection: Built-in 5KV
• Burning Position: Up or Down operation only
• Rated for Enclosed Fixtures: Yes

Features

• High lumen output for industrial and commercial applications
• Replaces HID, CFL, and incandescent lamps with lower energy consumption
• Durable IP65 rated for protection against dust and water
• Non-dimmable design for consistent performance
• Thermal management circuit for temperature control and extended life
• Emits no UV light and contains no mercury
• Includes safety chain for secure installation
• RoHS and FCC compliant
• 5-year limited warranty under Hi-Pro program

Downloads & Links

• Spec Sheet
