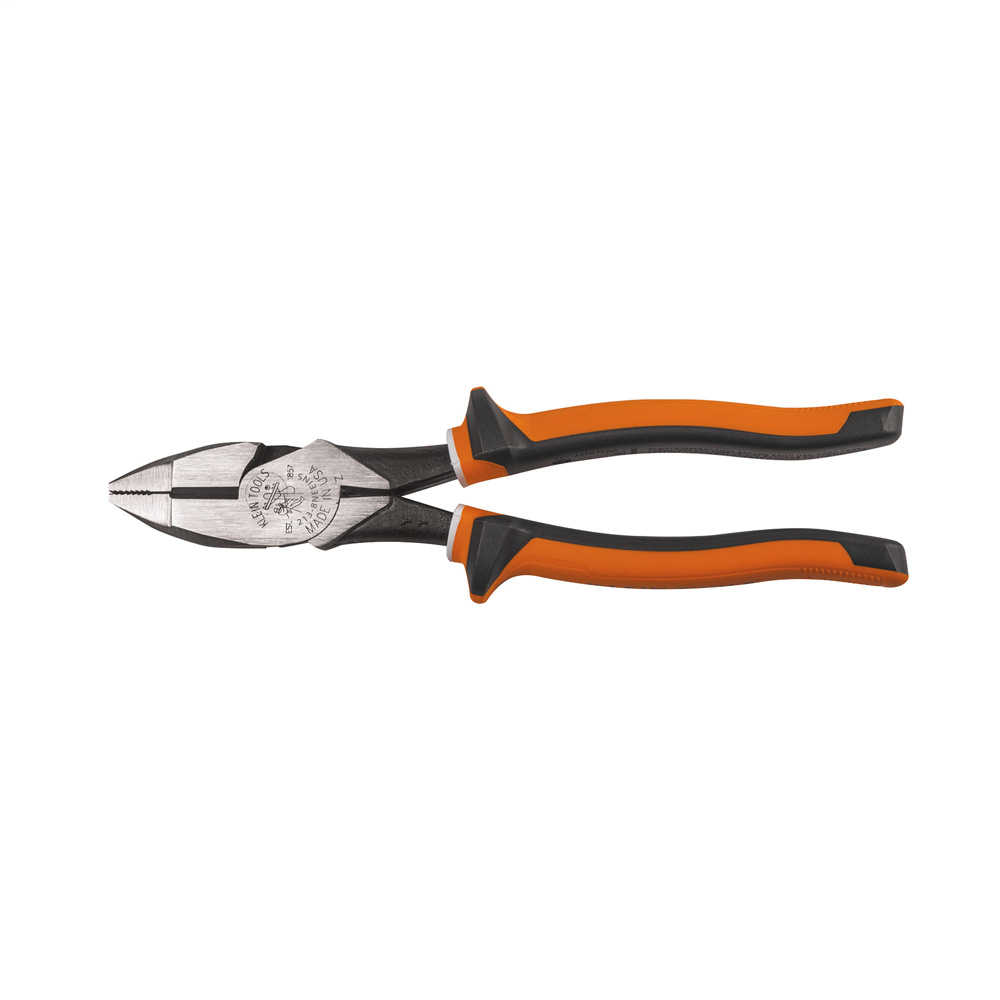

Product Features

• Streamlined design with sure-gripping, cross-hatched knurled jaws
• Durable, molded insulation meets or exceeds ASTM F1505 and IEC 60900 standards for insulated tools
• Hot-riveted joint for smooth action
• New England nose type
• Weight: 1 pound
• WARNING! Cancer and reproductive harm. See www.P65Warnings.ca.gov for more information.

Specs

• Nose Type: New England
• Overall Length: 8-13/16'' (223.8 mm)
• Jaw Length: 1-7/16'' (36.5 mm)
• Jaw Width: 1-7/64'' (28.2 mm)
• Jaw Thickness: 5/8'' (15.9 mm)
• Knife Length: 3/4'' (19.1 mm)
• Weight: 1.0 lb (0.5 kg)
• Application: ACSR, Screws, Nails and Most Hardened Wires
• Handle Color: Orange/Gray
• Handle Material: High-Dielectric Plastic
• Handle Type: Slim
• Material: Induction Hardened Steel
• Special Features: Integral Guards Help Prevent Hand Contact With Conductive Parts
• Standard: IEC 60900 and ASTM F1505
• Type: High-Leverage

Videoss

Warnings

• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Always inspect your tools before use.
• Always wear approved eye protection.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Keep tool clean, dry and free of any surface contaminants.
• Destroy tool if the insulation is damaged in any way.

Accessories

• TT1: Tool Tether, 10 lbs Max
• TT2: Triple-Locking Tool Tether, 15 lbs Max
