8-Button Control Panel Wallplate - HDMI Control Interface

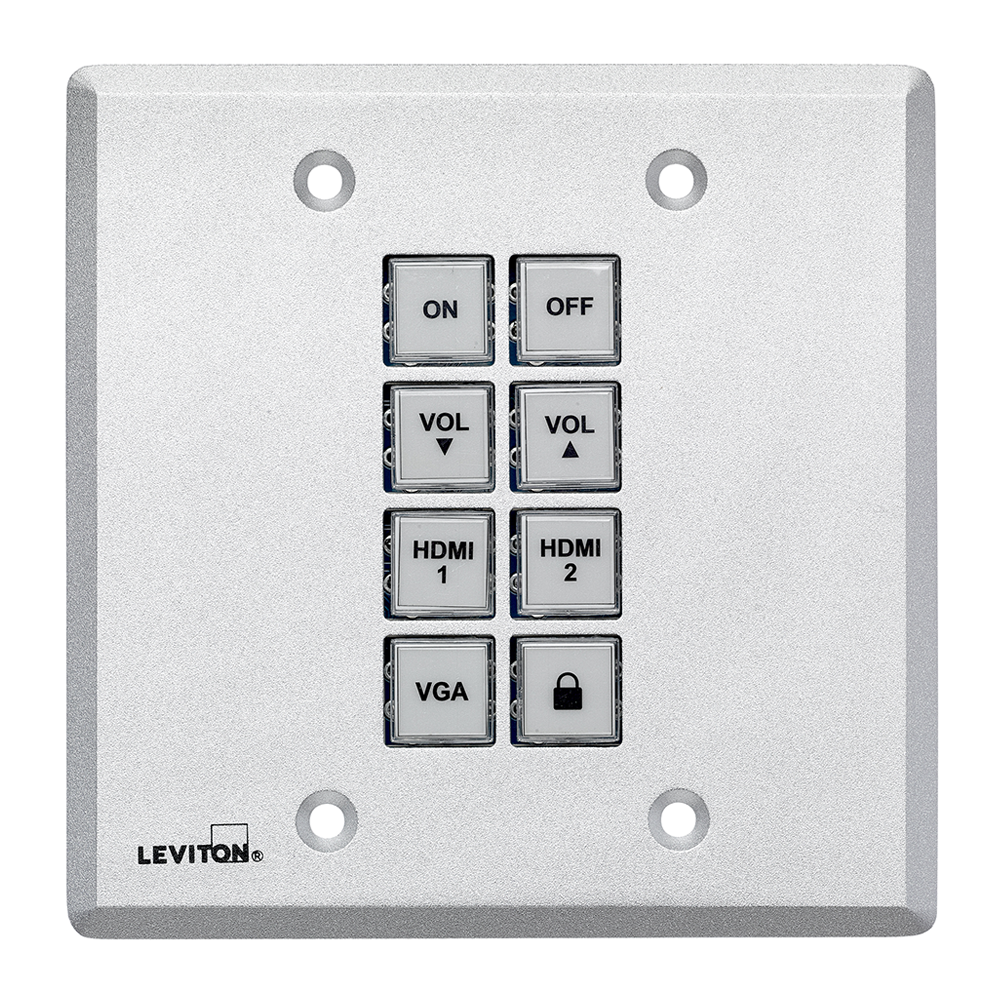

The Leviton 8-Button Control Panel Wallplate (Model 41920-CP8) is designed to control HDMI® and VGA audiovisual systems, specifically suited for classrooms, conference rooms, and other meeting spaces. As a component complementary to the Leviton HDMI and VGA Autoswitching HDBaseT Extender Wallplate (41920-HRC), it provides a user-friendly interface for managing display or projector power, volume, and source selection. This control panel is powered via category cable from the Autoswitching Wallplate and communicates seamlessly to enable efficient audiovisual system control, making it a practical solution for electrical distributors and lighting solutions providers incorporating wire and cable or switchgear supplier offerings.

Specifications

• Product Name: 8-Button Control Panel Wallplate
• Manufacturer Part #: 41920-CP8
• Country of Origin: China
• Product Weight: 46.9968 oz
• Form Factor: Dual gang Decora
• Finish: Matte anodized aluminum
• Dimensions: 4.50" x 4.50" faceplate, 1.44" depth (refer to dimensional drawing)

Features

• Eight backlit buttons: seven pre-configured and one custom programmable for integration with Leviton 41920-HRC
• Pre-configured button functions include:
  • Power On/Off
  • Volume Up/Down
  • Source Selection: HDMI 1, HDMI 2, VGA
  • Control Panel Lock
• Simple IR learning setup for customized control
• Copy/Paste function for quick deployment of IR codes across multiple rooms
• Powered and communicates via category cable connection to the Autoswitching Wallplate
• Includes adapter cable and IR emitter for installation
