7694-S-4 Outdoor Termination Kit – Medium Voltage Termination

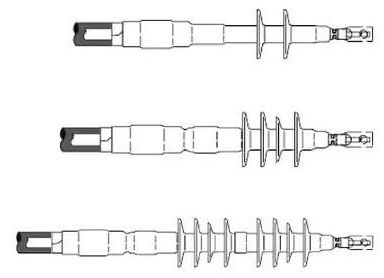

The 7694-S-4 Outdoor Termination Kit by 3M is a cold shrink, skirted silicone rubber termination designed for medium voltage applications ranging from 5 to 25 kilovolts. It is suitable for terminating single conductor, solid dielectric shielded power cables with tape shield, wire shield, or UniShield® constructions. This kit is intended for outdoor use and is compliant with IEEE standards, making it a reliable choice for electrical distributors and switchgear suppliers requiring durable and weather-resistant termination solutions.

Specifications

• Voltage Rating: 5 to 25 kV
• BIL Rating: 150 kV
• Cable Insulation Outer Diameter Range: 0.83 to 1.53 inches (21.1 to 38.9 mm)
• Conductor Size Range:
  • 5 kV: 500 to 750 kcmil
  • 8 kV: 350 to 700 kcmil
  • 15 kV: 4/0 to 500 kcmil (120–240 mm²)
  • 25 kV: 2/0 to 250 kcmil (70–150 mm²)
• Number of Terminations per Kit: 3
• Maximum Installed Length: 12.25 inches (311 mm)
• Number of Conductors: 1
• Insulator Material: Silicone Rubber
• Insulator Type: Skirted (4 skirts)
• Connector Type: Compression Lug
• Product Weight: 4.3 lbs
• Applicable Standard: IEEE

Features

• Cold shrink technology eliminates the need for heat or flame during installation
• One-piece, skirted silicone rubber insulator with excellent tracking resistance and hydrophobic properties
• Built-in high-dielectric constant (Hi-K) stress control tube with conformable stress controlling compound
• Includes constant force springs and mastic seal strips for superior environmental sealing
• Pre-formed ground braid and copper foil shielding tape included for effective grounding and shielding
• Complete assembly is prestretched and loaded onto a removable core for ease of installation and recycling
• Suitable for outdoor weather-exposed applications
• Designed for use with compression lugs (ordered separately)
