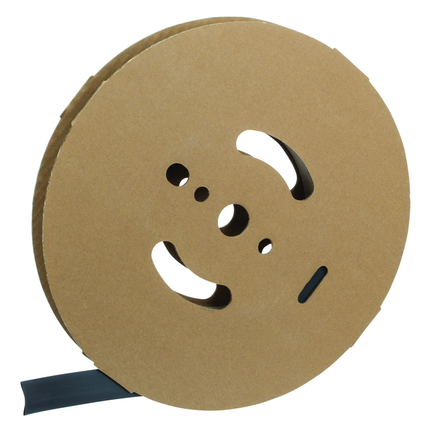

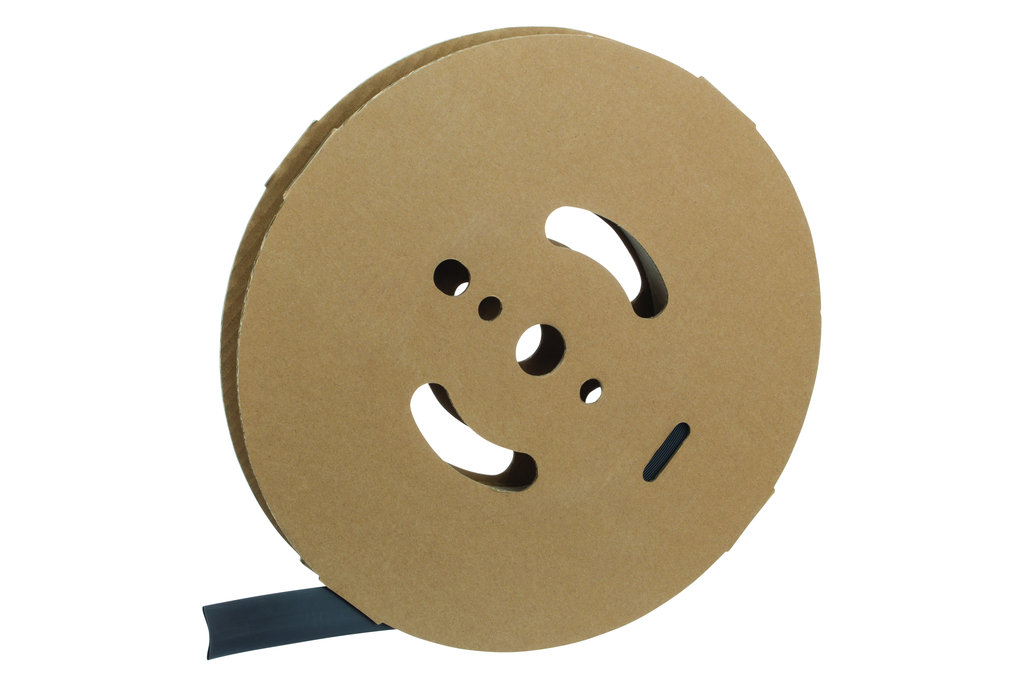

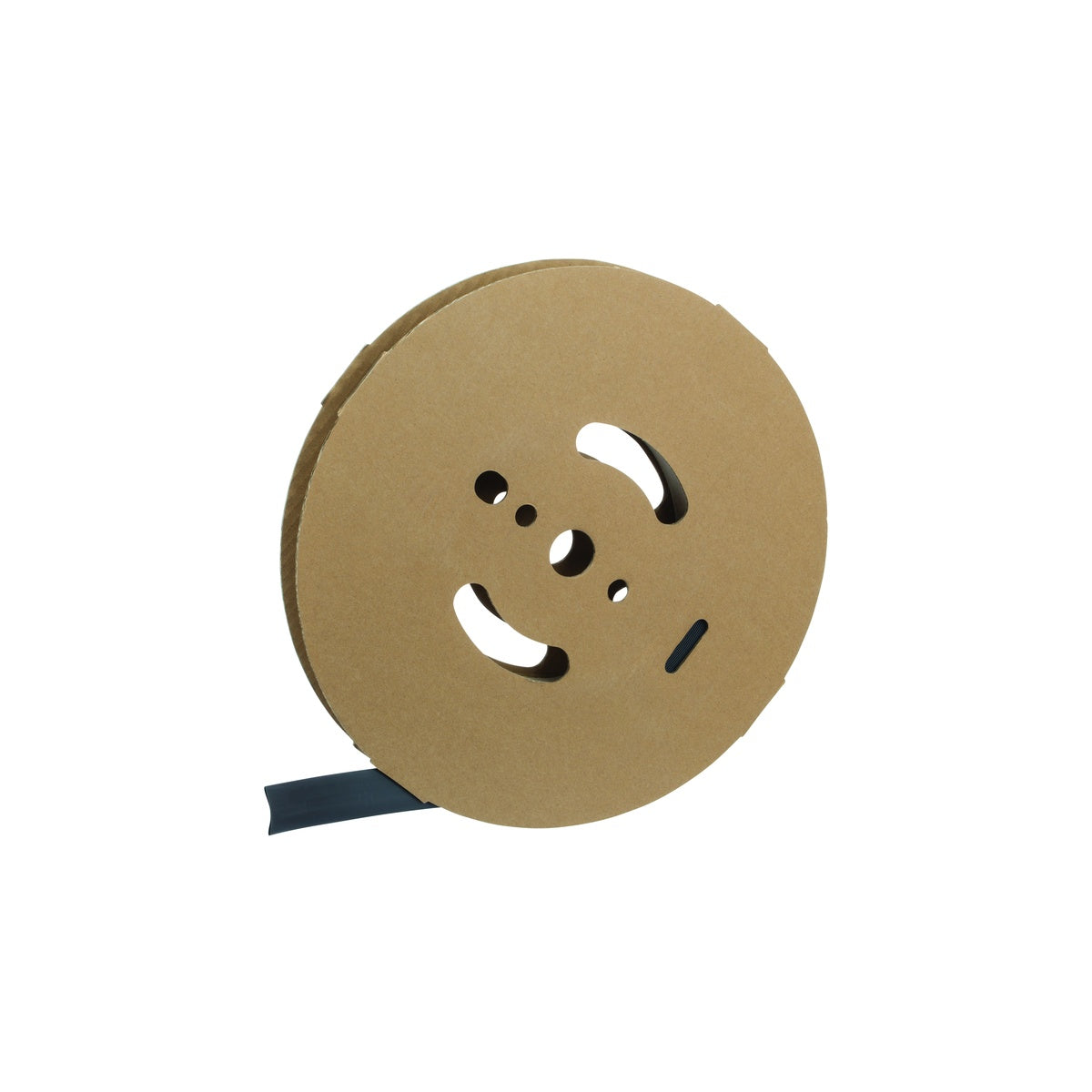

.750/375 Thin Shrink 100' Heat Shrink Tubing for Electrical Insulation

This product is a flexible, flame-retardant, thin wall heat shrinkable polyolefin tubing designed for electrical insulation, wire harness bundling, wire jacket marking, color coding, and splice cover applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable management solutions. The tubing features a 2:1 shrink ratio and is supplied on a 100-foot spool.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: TWHS-750
• Material: Polyolefin
• Expanded Inside Diameter: 0.750 in
• Recovered Inside Diameter: 0.375 in
• Nominal Recovered Wall Thickness: 0.030 in
• Length: 100 ft
• Operating Temperature: 125 °C
• Voltage Rating: 600 Volts
• UL Recognized to Standard 224
• Compliance: Black, white, and colored tubing meets MIL-DTL-23053/5, Class 1; clear tubing meets MIL-DTL-23053/5, Class 2 (not flame retardant)
• Country of Origin: China
• Product Weight: 2.912 lbs

Features

• Flexible flame-retardant thin wall construction
• General purpose heat shrinkable tubing with 2:1 shrink ratio
• Suitable for electrical insulation, wire harness bundling, and wire jacket marking
• Also functions as splice cover and for making functional terminations
• Available in multiple colors including black, white, red, green, blue, and clear
• Standard packaging on 100-foot spools for economical use

Downloads & Links

• Spec Sheet
