75 Watt LED HID Replacement Lamp – LED Lighting Solutions

This 75 Watt LED HID replacement lamp by Satco is designed for indoor lighting applications, offering an energy-efficient alternative to traditional HID and incandescent bulbs. Featuring a Mogul Extended base and adjustable beam angle, it provides broad 360-degree illumination with a natural light color temperature of 5000K. Suitable for use in totally enclosed fixtures, this lamp supports both up and down burning positions and is ideal for electrical distributors and lighting solutions providers focusing on wire and cable and switchgear supplier markets.

Specifications

• Manufacturer: Satco
• Manufacturer Part #: S29769
• Wattage: 75W
• Incandescent Equivalent: 750W
• Voltage Range: 100-277V
• Lumens: 9800 lumens
• Beam Spread: 360 degrees
• Color Temperature: 5000K (Natural Light)
• CRI: 80+
• Base Type: Mogul Extended (EX39)
• IP Rating: IP65
• Rated Life: 50,000 hours
• Operating Temperature: -13¬∞F to +113¬∞F (-25¬∞C to +45¬∞C)
• Weight: 2.54 lbs
• Lens Finish: Clear
• Housing Color: White
• Dimmable: No
• Safety Listing: cULus
• Location Rating: Damp
• Burning Position: Up or Down Operation Only
• Surge Protection: Built-in 3KV
• Minimum Compartment Size: Length 8.27 in., Width 9.25 in., Depth 9.25 in.

Features

• Approved for use in totally enclosed fixtures
• Emits no UV light and contains no mercury (Hg)
• Suitable for indoor applications with damp location rating
• High power factor greater than 0.9 for efficient electrical performance

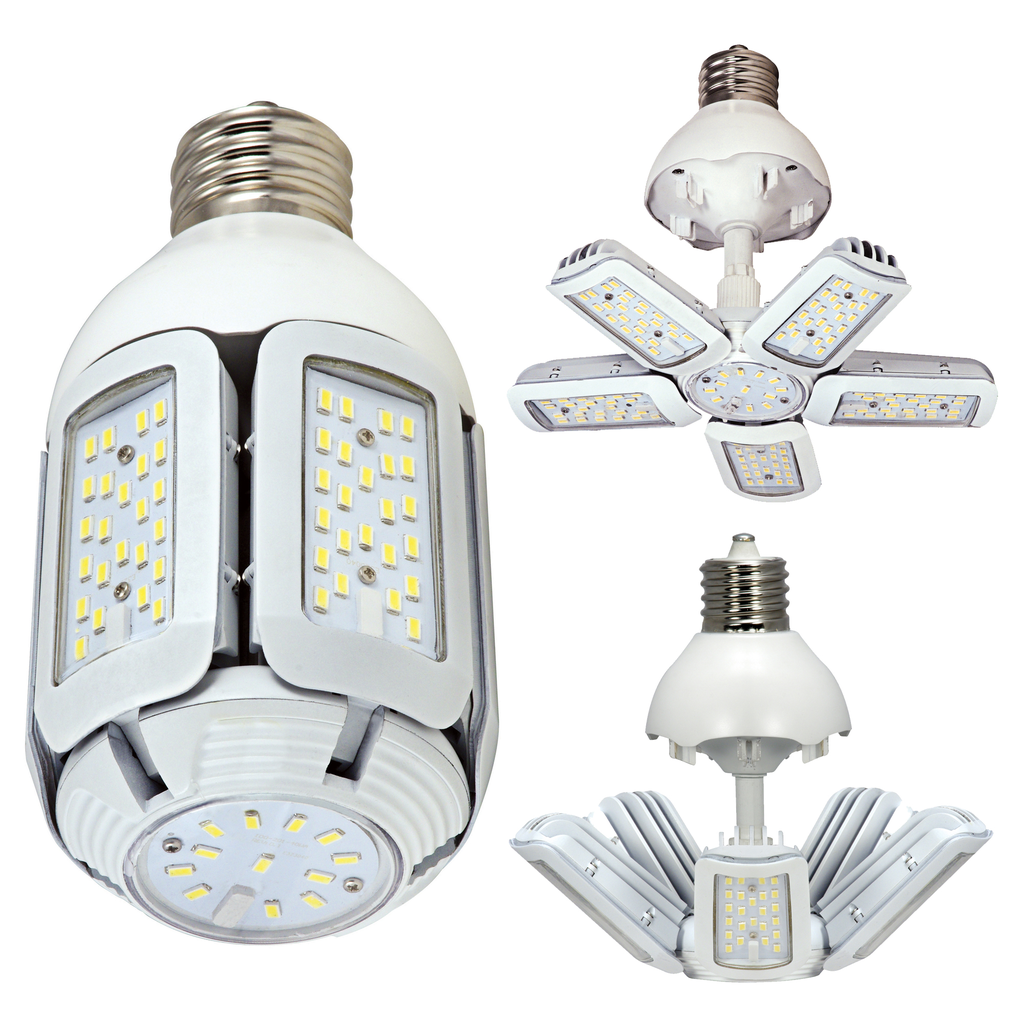

• Adjustable beam angle with foldable panels for customizable lighting distribution
• RoHS and FCC compliant
• 5 Year Limited Hi-Pro Warranty

Downloads & Links

• Spec Sheet
