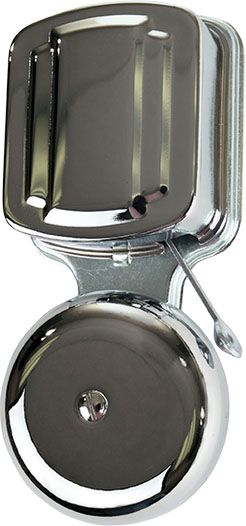

744 General Purpose Vibrating Bell – Audible Signal for Electrical and Security Applications

The Edwards 744 General Purpose Vibrating Bell is designed for residential, commercial, and OEM applications requiring reliable audible signaling. This vibrating bell features an exposed gong and operates on 6-8V AC or 3-6V DC power, making it suitable for use in electrical distributor setups, lighting solutions, wire and cable systems, and security switchgear with battery standby. Its corrosion-resistant chrome finish and enclosed binding posts provide durability and ease of installation.

Specifications

• Operating Voltage: 6-8V AC / 3-6V DC
• Current: 1.0 amperes max
• Power Consumption (VA): 10.0
• Sound Level: 100 dB at 1 meter (90 dB at 10 feet)
• DC Coil Resistance: 1.5 Ohms
• Housing Material: Metallic
• Color: Chrome
• Approximate Weight: 0.52 lb (net), 0.58 lb (shipping)
• Dimensions: 4" (A) x 1 3/4" (B) x 6 7/8" (C)

Features

• Exposed gong for clear audible signaling
• Attractive snap-on chrome covers
• Corrosion-resistant finish for long-term durability
• Enclosed binding posts for secure electrical connections
• Compatible with AC or DC power sources including transformers and battery standby systems
