740 Pipe Sleeve Positioner - Hammer-On Pipe Positioning Fastener

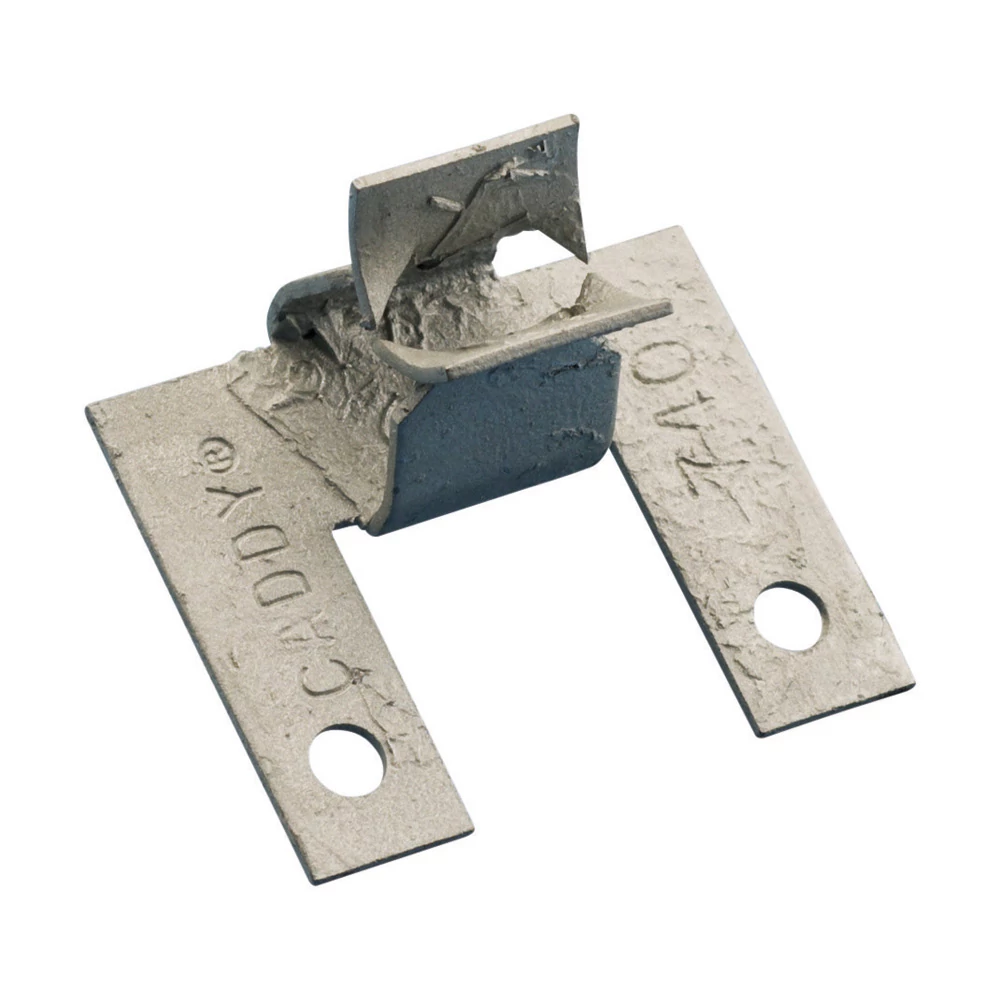

The 740 Pipe Sleeve Positioner is a hammer-on fastener designed for precise positioning of pipe sleeves during concrete pours. It is suitable for use by electrical distributors and switchgear suppliers who require reliable pipe positioning solutions in construction and electrical installations. This device facilitates worry-free concrete pours by preventing pipe sleeve movement and includes two holes for securement to concrete forms.

Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• Dimensions: 31.80 mm (Width) x 20.80 mm (Height) x 26.90 mm (Length)
• Weight: 6.4 grams
• Compatible Pipe Sizes: Schedule 40 pipe with sleeve diameters from 2" to 6"
• Wall Thickness Compatibility: Up to 5/16" thickness for all sleeve diameters
• Made in USA: Yes

Features

• Easy installation requiring only a hammer
• Prevents movement of pipe sleeves during concrete pours
• Includes two holes for secure attachment to concrete forms
• No load rating; intended for positioning only
• Recommended for pipe sleeves 2" through 6"; for larger pipe sizes (6" to 14"), use 4H Hammer-On Flange Clip, Side Mount
