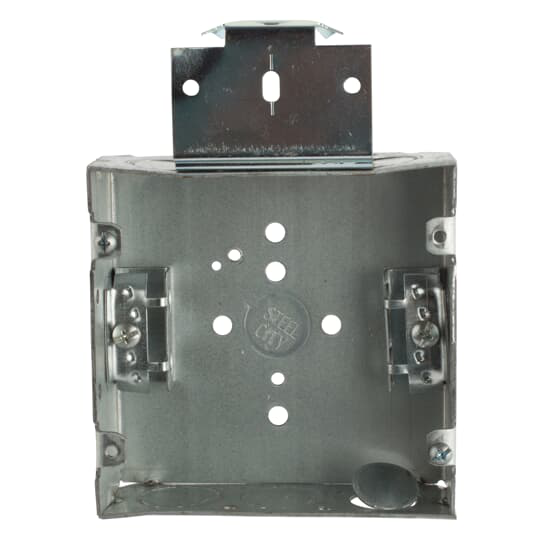

72171 MSX, Two Gang Outlet Box Electrical Distributor

The 72171 MSX is a pre-fabricated, two gang outlet box designed for electrical distribution and wire management applications. It features a 42 cubic inch capacity with dimensions of 4-11/16 inches square by 2-1/8 inches deep, suitable for use in lighting solutions and switchgear supplier installations. Constructed from galvanized steel with a gray finish, it includes a metal stud bracket for mounting and is equipped with 1/2 inch knockouts for cable entry. The box also comes with a 3/4 inch raised device box cover, an armored cable clamp (C-3), and a pre-installed 10-1/2 inch insulated grounding pigtail for secure grounding.

Specifications

• Product Weight: 41.5750 lbs
• Cubic Capacity: 42 cu in
• Dimensions: 4-11/16 inches square x 2-1/8 inches deep
• Material: Steel
• Color: Gray
• Mounting: Bracket
• Cable Entry: Knockouts (1/2 inch)
• Number of Outlets: 2
• Box Cover: 3/4 inch raised device box cover
• Armored Cable Clamp: C-3 type
• Grounding: Pre-installed 10-1/2 inch insulated pigtail

Features

• Pre-fabricated assembly reduces installation time and labor costs
• Galvanized steel construction ensures durability and corrosion resistance
• Metal stud bracket allows secure mounting in various electrical installations
• Multiple 1/2 inch knockouts provide flexible cable entry options
• Includes armored cable clamp for secure cable management
• Pre-installed insulated grounding pigtail enhances safety and compliance
