71440A, LED Wall Pack - Large Classic WallPack Lighting Solution

The 71440A LED Wall Pack by Morris Products is designed for exterior lighting applications, providing efficient and reliable illumination for commercial and industrial environments. This large classic wall pack is suitable for use by electrical distributors and lighting solution providers seeking durable, high-performance fixtures. It features a bronze die-cast aluminum housing and delivers 14,475 lumens at 120 watts, making it ideal for wire and cable installations requiring robust and energy-efficient lighting. The fixture supports 120-277V input voltage with 0-10V dimming capability and is cETLus listed for safety and performance.

Specifications

• Manufacturer: Morris Products
• Model Number: 71440A
• Wattage: 120 watts
• Input Voltage: 120-277V
• Lumens: 14,475
• Housing Material: Aluminum
• Finish: Bronze

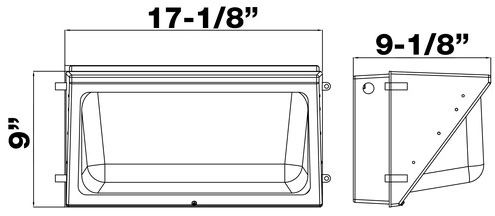

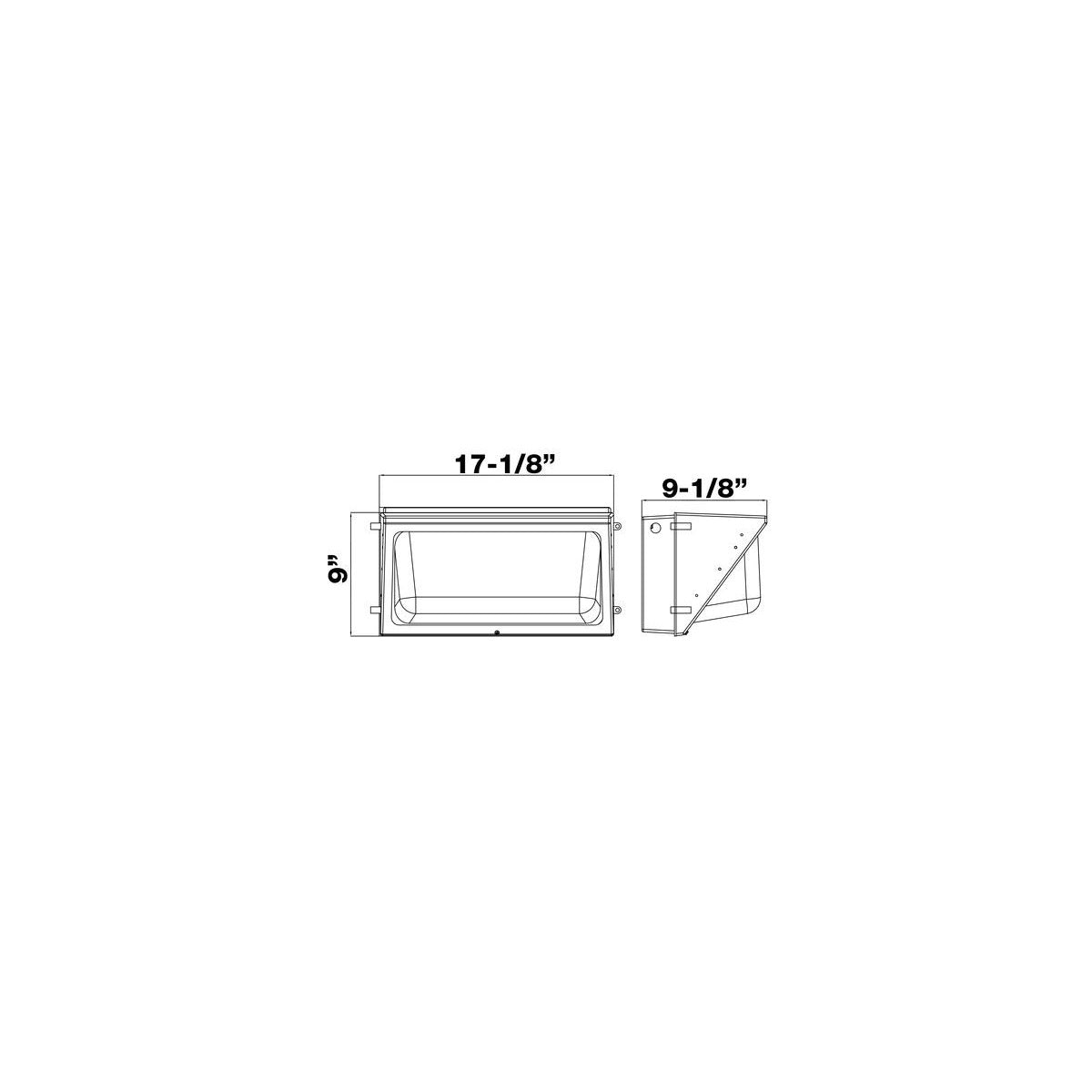

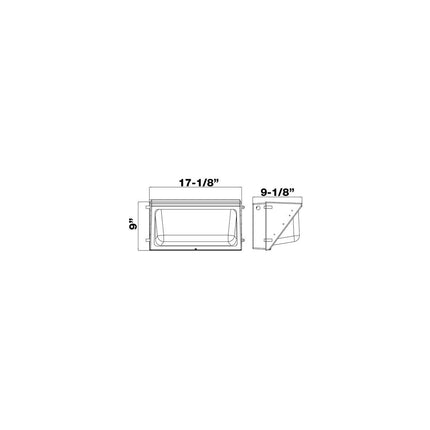

• Length: 9 inches
• Weight: 20 lbs
• Certification: cETLus Listed

Features

• Die-cast aluminum housing with polyester powder-coated bronze finish for durability
• Prismatic borosilicate glass lens providing UV resistance and fire resistance
• 0-10V dimmable driver for adjustable lighting levels
• Compatible with 120-277V input voltage
• Heat sink and customized fin design for optimal heat dissipation
• IP54 rated for wet location suitability
• 4KV surge protection for electrical robustness
• Beam angle: Horizontal 90¬∞ x Vertical 109¬∞ for wide area coverage
• Operating temperature range: -4¬∞F to 131¬∞F
• Emergency battery backup available (sold separately)
• 5-year limited warranty
