7050US, EMT Conduit Connector
SKU: #313355
Part: #7050US
UPC: 687855050406
7050US, EMT Conduit Connector
SKU: #313355
Part: #7050US
UPC: 687855050406
Next day delivery
Description

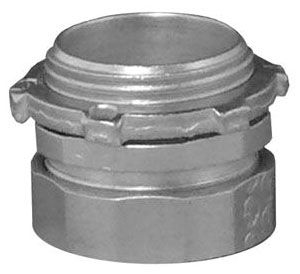

7050US, EMT Conduit Connector - Steel EMT Compression Connector
The 7050US EMT Conduit Connector is designed to ground and securely fasten Electrical Metallic Tubing (EMT) raceways to boxes and enclosures. Manufactured by O-Z Gedney in the United States, this connector is part of the ETP‚Ñ¢ 7000US Series and is suitable for use by electrical distributors and switchgear suppliers seeking reliable conduit fittings for wire and cable installations. It features a male NPS threaded hub for secure connection and is finished with zinc electroplating for corrosion resistance, making it appropriate for commercial and industrial electrical applications.
Specifications
- Application: To ground and secure EMT Raceways to boxes and enclosures
- Material: Steel
- Finish: Zinc Electro Plated
- Color: Metallic
- Connection: Male NPS Thread
- Insulation: Non-Insulated
- Length: 1.44 Inch
- Diameter: 0.97 inches
- Product Weight: 0.1180 lbs
- NEMA Rating: FB-1
- Manufacturer: O-Z Gedney
- Manufacturer Part #: 7050US
Features
- Made in the U.S.A.
- Male hub threads (NPS) for secure conduit connection
- Zinc electroplated finish for corrosion resistance
- Designed to ground EMT raceways effectively
- Non-insulated construction suitable for grounding applications
- Compact dimensions facilitate installation in tight spaces
