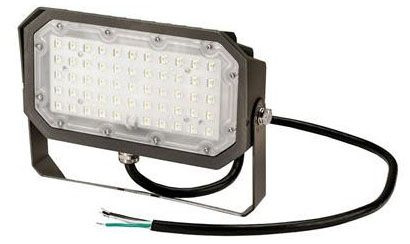

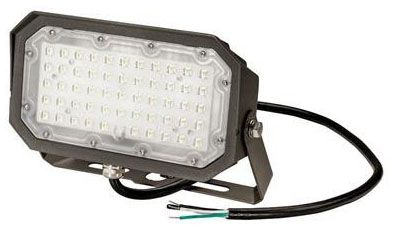

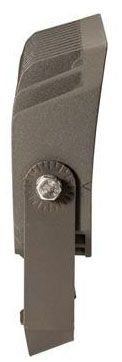

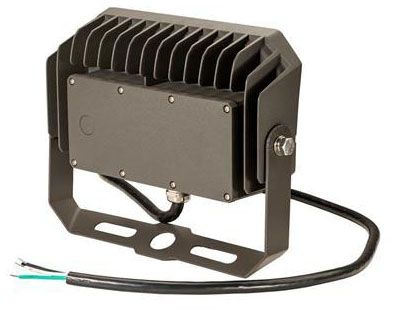

70270, LED Flood Light Fixture – LED Flood Light

The 70270 LED Flood Light Fixture by Southwire is a durable, energy-efficient lighting solution designed for outdoor applications such as pedestrian walkways, building facades, signage, and monuments. Featuring a bronze finish and aluminum housing, this fixture is suitable for commercial and industrial electrical distributors and lighting solution providers seeking reliable flood lighting with a long functional life. Its yoke mounting type allows flexible installation options.

Specifications

• Manufacturer Part #: 70270
• Lamp Wattage: 50 watts
• Housing Material: Aluminum
• Finish: Bronze
• Mounting Type: Yoke
• Product Weight: 3.25 lbs
• Input Voltage: 120-277V, 50/60Hz
• Power Factor: >0.9
• THD: <20%
• Dimmable: 1-10V
• Beam Angle: 115°H x 90°V
• Field Angle: 160°H x 140°V
• CRI: 80
• Functional Life (L70): 50,000 hours
• IP Rating: IP65 (Wet Location)
• Ambient Operating Temperature: -40°F to 113°F

Features

• Die-cast aluminum housing with thermal management
• IK10 impact rated polycarbonate lens for durability
• Wide distribution pattern (NEMA 7H x 7V) for broad area coverage
• Yoke mounting for versatile installation
• Includes 4-foot power cord
• Surge protection rating of 3kV
• Compatible with standard 0-10V dimmers
• Energy-efficient LED technology with up to 120 lumens per watt efficacy
