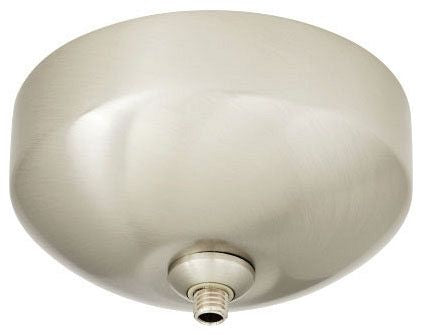

700FJSF4S Freejack Pendant Lighting Canopy - Surface Canopy Lighting Solution

The 700FJSF4S Freejack Pendant Lighting Canopy by Tech Lighting is designed for ceiling mounting to provide a clean and functional surface canopy solution for low-voltage pendant lighting. It mounts to a standard 4" junction box with a round plaster ring, suitable for electrical distributors, lighting solutions providers, and switchgear suppliers integrating wire and cable for low-voltage systems. The canopy includes an electronic transformer housed inside a compact 2" high, 4.5" diameter enclosure. It features one FreeJack port and is compatible with 12 or 24 volt halogen FreeJack pendants or heads (sold separately). The vaulted version supports ceilings up to 45°.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJSF4S
• Mounting Type: Ceiling
• Color: Nickel (Satin Nickel finish)
• Weight: 1 lb (0.45 kg)
• Dimensions: 4.5" diameter, 2" height
• Voltage Options: 120V in / 12V out, 120V in / 24V out, 277V in / 12V out
• Driver Wattage: LED 60W, Halogen 75W
• Installation: Mounts to standard 4" junction box with round plaster ring (provided by electrician)

Features

• Electronic transformer integrated inside canopy housing
• One FreeJack port for flexible pendant or head attachment
• Vaulted version available for angled ceilings up to 45°
• Compatible with 12 or 24 volt halogen FreeJack pendants or heads
• Can be installed for ceiling or wall mounting (head length limit for wall mount: 6")
