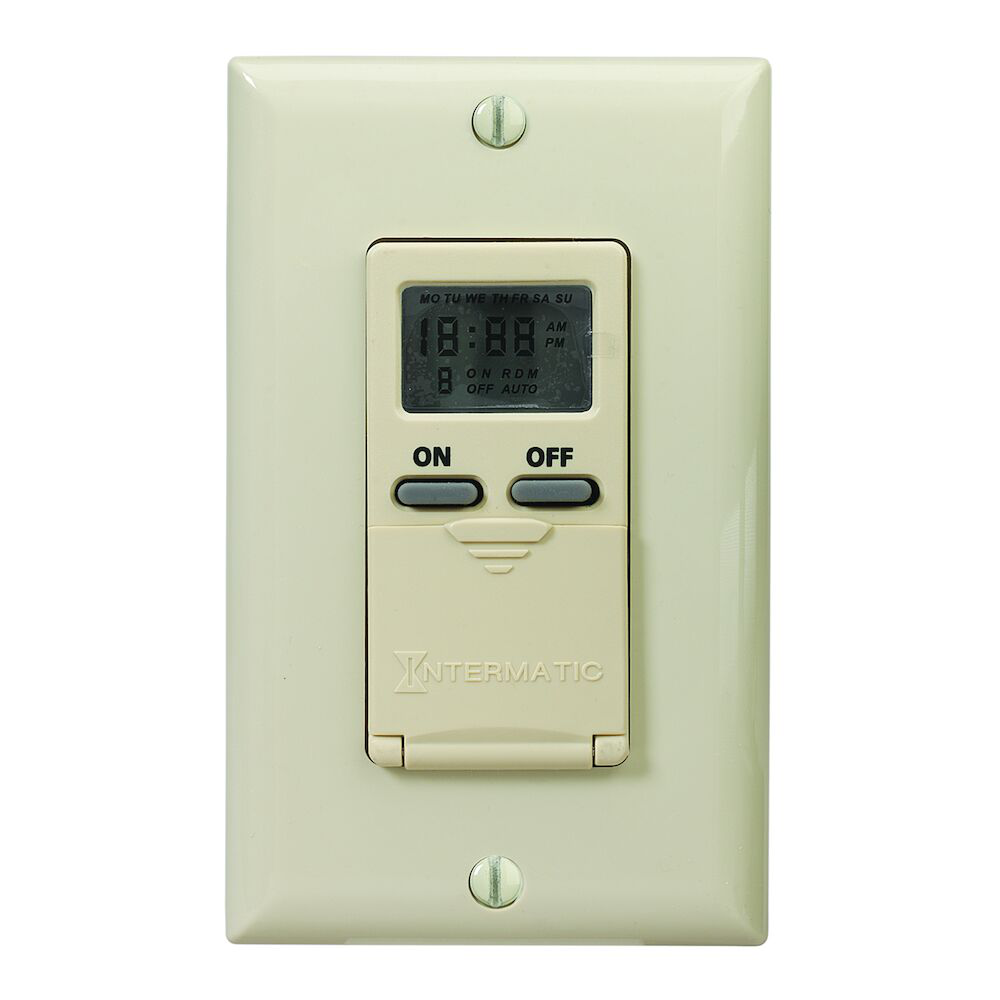

7-Day Standard Programmable Timer, 125 VAC, 15A, Ivory – Programmable In-Wall Timer

This 7-Day Standard Programmable Timer from Intermatic is designed for installation on 15 A circuits to provide precise 24-hour or 7-day control of electrical loads such as lights, fans, pumps, and other medium-duty devices. It is suitable for use by electrical distributors and lighting solutions providers seeking a reliable timer compatible with incandescent, fluorescent, CFL, and LED loads. The timer requires a neutral connection and fits a single-gang wall plate configuration, making it ideal for indoor and outdoor lighting control as well as air movement and ventilation applications.

Specifications

• Model Number: EI500C
• Voltage: 125 VAC, 60 Hz
• Current Rating: 15 A General Purpose
• Resistive Heater Rating: 15 A / 1875 W
• Tungsten (Incandescent) Rating: 8 A / 1000 W
• Ballast Fluorescent Rating: 8 A / 1000 VA
• Electronic Ballast LED Rating: 4 A / 500 VA
• Motor Load Rating: 1/4 HP
• Inductive Load Rating: 1000 VA
• Operation Mode: 24-hour
• Maximum ON/OFF Events: 14 per week
• Wiring Configuration: Single pole with neutral required
• Dimensions (H x W x D): 4.125 x 1.75 x 1.4375 inches
• Color: Ivory
• Operating Temperature Range: 32 to 104 °F
• Country of Origin: China
• UL Certification: cULus
• Warranty: 1-Year Limited

Features

• 7-day programmable schedules with up to 14 ON/OFF events
• Automatic Daylight Saving Time (DST) adjustment
• Random mode varies ON/OFF schedule to create a "lived-in" appearance for enhanced security
• Compatible with incandescent, fluorescent, CFL, and LED lighting
• Built-in rechargeable, non-serviceable battery backup ensures programming retention during power outages
• Backlit LCD display for easy programming and status viewing
• Single-pole circuit design suitable for standard residential and commercial installations
• Requires neutral wire connection for proper operation
