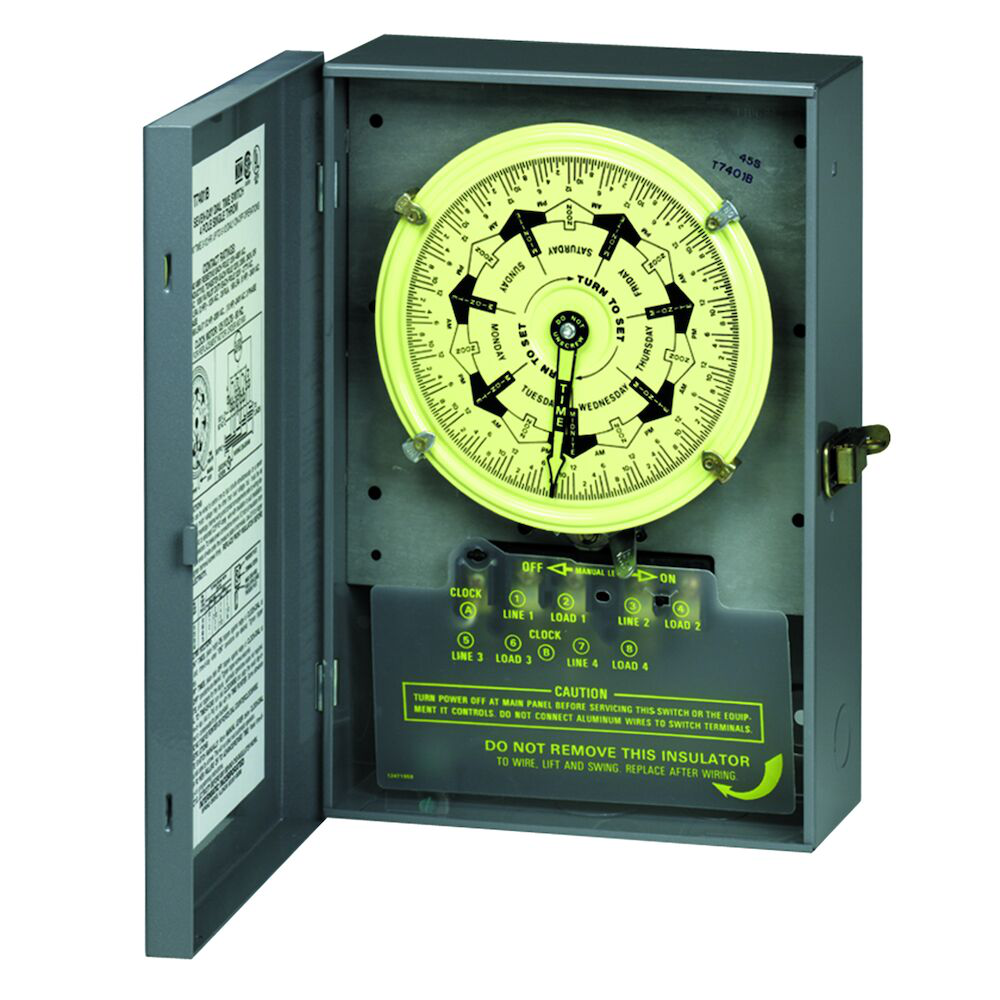

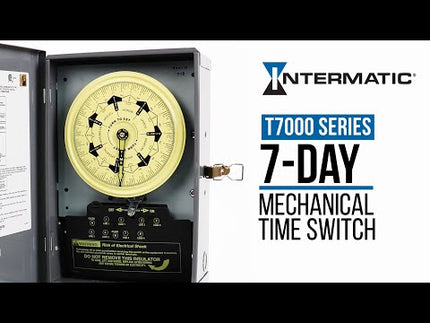

7-Day Mechanical Time Switch, 120 VAC, 60Hz, 2 NO/2 NC, Indoor Metal Enclosure, 3.5 Hour Interval

This 7-Day Mechanical Time Switch is designed for precise scheduling of electrical loads, offering a separate schedule for each day of the week. It supports up to 40 A per circuit and can control up to four loads per clock, simplifying installation and operation. Suitable for indoor use, this time switch is ideal for electrical distributors and lighting solutions requiring reliable timed control within wire and cable and switchgear applications.

Specifications

• Manufacturer: Intermatic
• Manufacturer Part #: T7801B
• Voltage: 120 VAC, 60 Hz
• Number of Circuits: 2
• Contact Configuration: 2 Normally Open / 2 Normally Closed
• Maximum Load: 40 A resistive per pole
• Minimum "On" Time: 3.5 hours
• Operating Temperature Range: -40 °C to 130 °F
• Dimensions: 13.125 in (Height) x 3.75 in (Depth)
• Product Weight: 8.75 lbs
• Country of Origin: Mexico
• Enclosure Type: Indoor Metal

Features

• Separate schedules for each day of the week with 7 ON and 7 OFF trippers
• Capable of controlling up to four loads per clock
• Separate terminals for powering the clock motor
• Manual lever for manual operation without affecting automatic schedule
• Durable metal enclosure designed for indoor use
• Clock motor rated at 120 VAC, 60 Hz
• Supports multiple load types including resistive, inductive, tungsten, and electronic ballast

Downloads & Links

• Instruction Sheets
