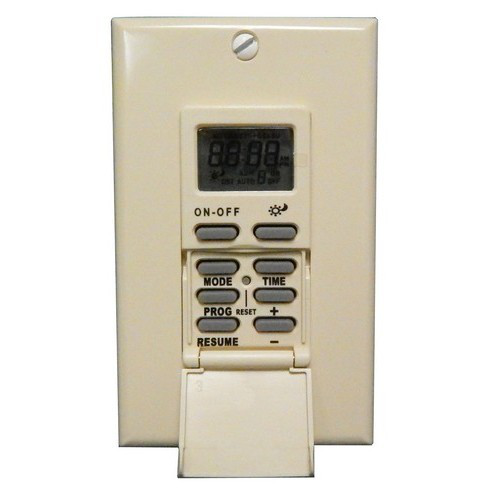

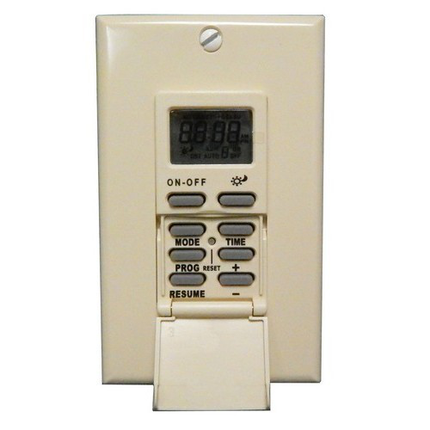

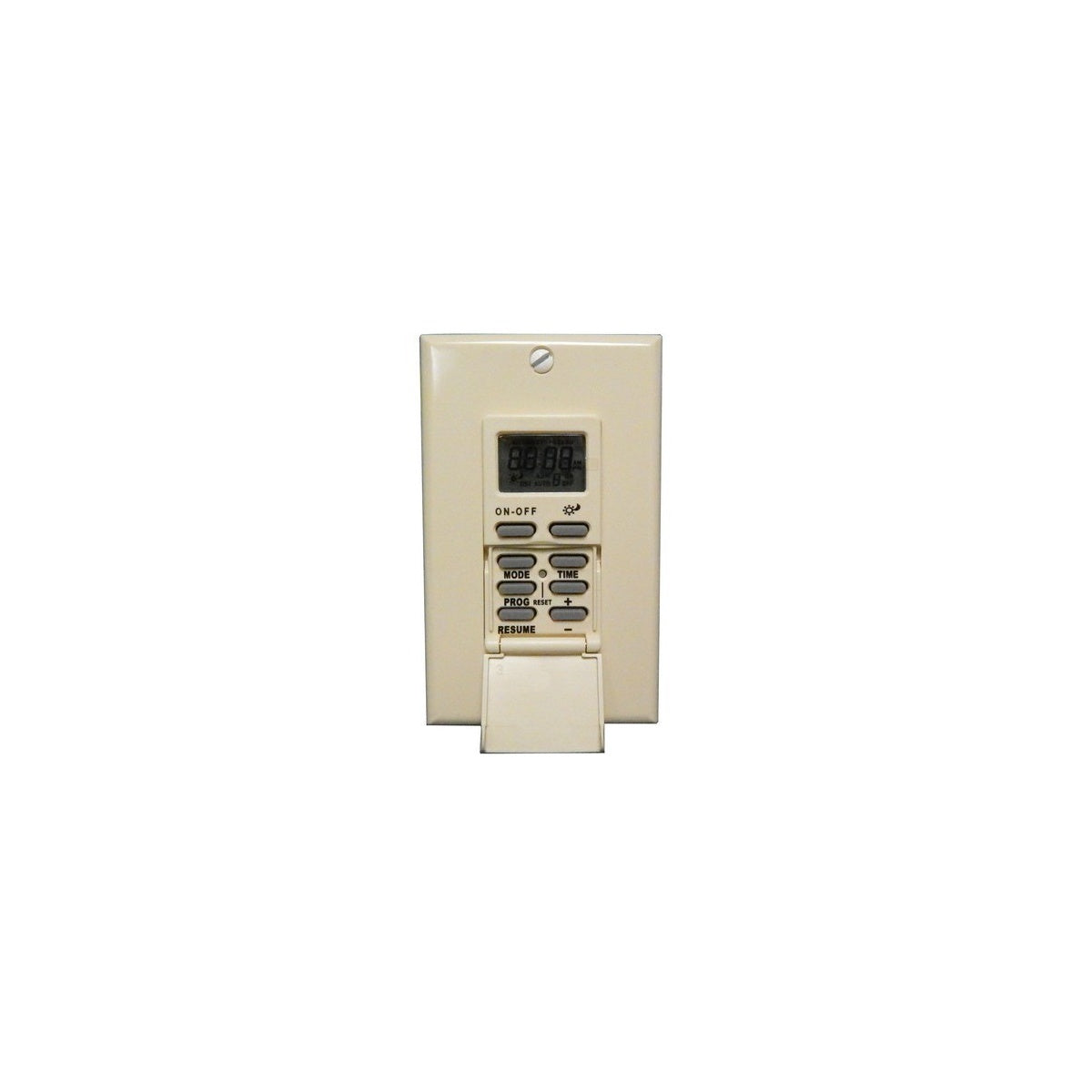

7 Day In-Wall Digital Self-Adjusting Timer - SunTracker Ivory

This 7 Day In-Wall Digital Self-Adjusting Timer by Morris Products is designed for precise control of lighting and electrical devices in residential or commercial settings. It automatically adjusts for sunrise, sunset, and daylight savings time, providing reliable scheduling without manual intervention. Ideal for electrical distributors and lighting solutions providers, this timer supports various load types and integrates easily into existing wiring setups.

Specifications

• Voltage: 125 VAC, 60 Hz
• General Load Capacity: 15 A, 1875 W
• Resistive Load Capacity: 15 A, 1875 W
• Tungsten (Incandescent) Load Capacity: 8 A, 1000 W
• Ballast (Fluorescent) Load Capacity: 8 A, 125 VAC
• Motor Load Capacity: 1/4 H.P., 125 VAC
• Product Weight: 0.6 lb
• Color: Ivory
• Manufacturer Part Number: 80515

Features

• Digital 7-day programmable timer with up to 7 ON/OFF events per week
• Self-adjusting SunTracker feature automatically sets for sunrise and sunset times
• Automatic Daylight Savings Time adjustment
• Multiple operating modes: Automatic, Random (security feature), and Manual
• Compatible with standard compact fluorescent (CFL) bulbs (excluding CFLs marked "not for timer use")
• Easy installation with standard in-wall wiring: requires hot and neutral wires
• Override function with manual ON/OFF buttons
• Reset function to clear all settings and restart

Downloads & Links

• Spec Sheet
