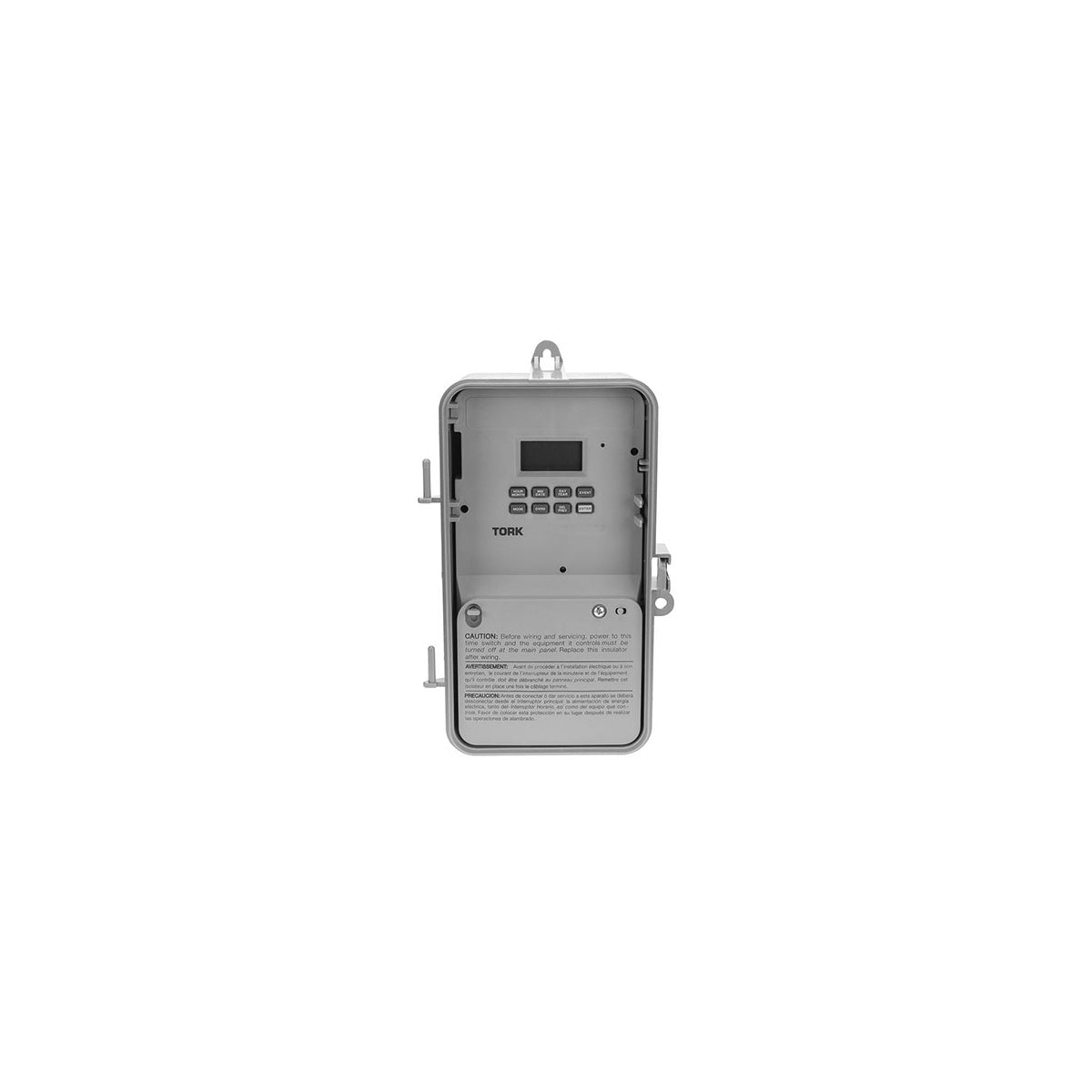

7 Day Digital Holiday 2CH 20A 120-277V
SKU: #161968
Part: #DG200A
UPC: 786261822093
7 Day Digital Holiday 2CH 20A 120-277V
SKU: #161968
Part: #DG200A
UPC: 786261822093
Total Price: $569.68 per each Sold in increments of 1 each
Description
Specifications
- Brand Name: NSi
- Scheduling: 365-7 Day
- Type: 365-7 Day Time Switch
- Number of Channels: 2
- ON/OFF Set Points: 56
- Astronomic: No
- Holiday Schedules: Yes
- Voltage Rating: 120 - 277 VAC
- Enclosure: NEMA 3R Noryl Indoor-Outdoor
- Action: SPDT
- Frequency Rating: 50-60 Hz
- Mounting: Screw Mount
- Operating Temperature: -31 to + 131 F
- Application: Indoor-Outdoor Lighting-HVAC-School Warning And Other Traffic Lights-Water Heaters
- Standard: cULus
Downloads
Operating ManualWiring Diagram
Catalog Page
