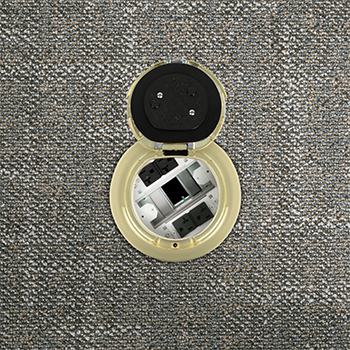

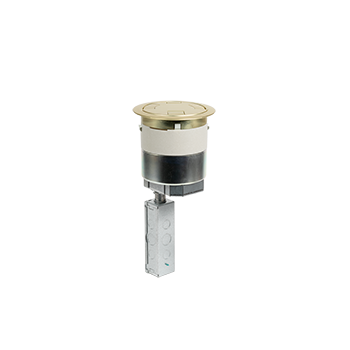

6IN PREWIRED SURF STYLE ASSEMBLY SB SATIN BRASS Poke-Thru Device

The Wiremold 6IN Prewired Surface Style Assembly in Satin Brass is a recessed poke-thru device designed for retrofit and new construction applications. It provides convenient access to power, communications, and audio/video services recessed below floor level, ensuring maximum device protection. Ideal for use in meeting rooms, classrooms, healthcare facilities, and commercial buildings, this device supports flexible configurations with three gangs of capacity to meet diverse space requirements. The low-profile metal cover with sliding doors allows cables to neatly egress, reducing tripping hazards while protecting cables. This product is UL Listed and UL Fire Classified for use in up to 3-hour fire rated floors, meeting stringent safety and accessibility standards. Manufactured in the USA by Wiremold, it is suitable for electrical distributors and switchgear suppliers focusing on lighting solutions and wire and cable management.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 6ATC2PSB
• UPC: 786564096481
• Order Minimum: 1 unit
• Dimensions (W x H x L): 7.25 in x 16.25 in x 7.25 in
• Weight: 9.54 lbs
• Cubic Capacity: 2578.88 in¬≥
• Cable Entry: Knockouts
• Construction: Assembled
• Country of Origin: United States
• Made in USA: Yes

Features

• Recessed device with three gangs for configurable power, communications, and A/V services recessed 5" below floor level

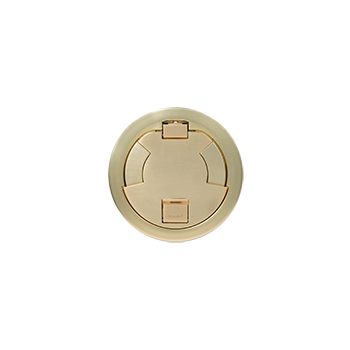

• Durable metal cover in satin brass finish designed to sit on top of finished floor surfaces such as carpet, tile, wood, polished concrete, or terrazzo

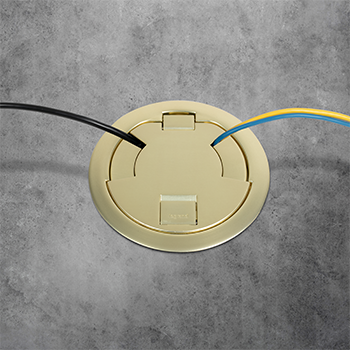

• Sliding egress doors that lock in open position and automatically close around cables to reduce tripping hazards
• UL Listed and UL Fire Classified for up to 3-hour rated floors, maintaining fire classification of the floor
• Meets ADA Accessibility Guidelines with an 8¬∞ beveled edge to limit slope changes and enhance safety
• Compatible with Legrand AVIP devices and most A/V manufacturer‚Äôs 1-gang decorator style devices
• Pre-pour sleeve option available to create cast-in-place core hole for easier installation and positioning before concrete pour
• TopGuard‚Ñ¢ protection exceeds UL scrub water exclusion requirements for tile, carpet, and wood floors
• Suitable for use in air handling spaces per NEC Sec 300-22(C)
