6AT Unwired Evolution‚Ñ¢ Poke Thru Device, Surface Style Cover, Gray - Electrical Floor Access Solutions

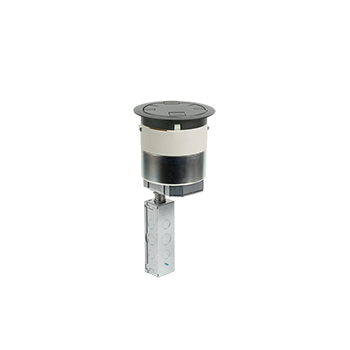

The 6AT Unwired Evolution‚Ñ¢ Poke Thru Device provides recessed access to power, communications, and audio/video services below floor level, designed for retrofit and new construction. This device is ideal for commercial buildings, healthcare facilities, classrooms, and meeting rooms, offering a safe and durable solution for wire and cable management. The surface style cover in gray is designed to sit on top of finished floor surfaces such as carpet, tile, wood, polished concrete, or terrazzo, providing a low-profile, ADA-compliant floor access point.

Specifications

• Product Weight: 8.83 lbs
• Dimensions: 7.25 in (Width) x 7.25 in (Height) x 16.25 in (Depth)
• Core Hole Size: 6 in diameter
• Cubic Capacity: 24.5 in¬≥
• Cable Entry: Knockouts & Pass Through
• Color: Gray
• Made in USA
• Country of Origin: United States
• Manufacturer: Wiremold
• Manufacturer Part #: 6ATC2GY
• Order Minimum Quantity: 1

Features

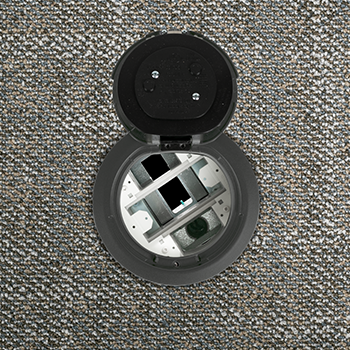

• Three (3) recessed compartments for power, communications, and A/V devices recessed 5" (127mm) below floor level for maximum protection and device longevity.

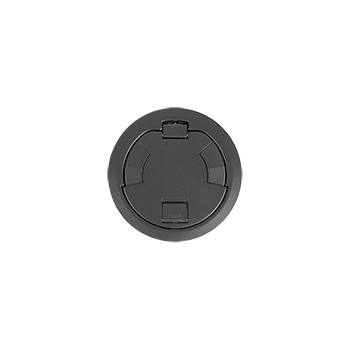

• Durable die-cast aluminum surface style cover with an 8¬∞ beveled edge that meets ADA guidelines and reduces tripping hazards.

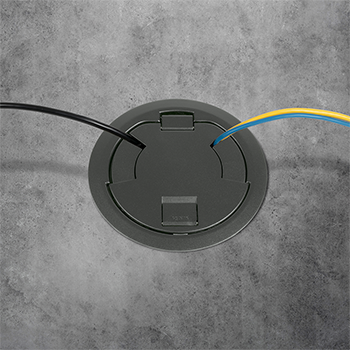

• Auto-close egress doors that lock in position when slid open and automatically close around cables, minimizing opening size and protecting cables.
• Compatible with Legrand's AVIP devices and most A/V manufacturer 1-gang decorator style devices.
• Designed for use with carpet, tile, wood, laminate, concrete, and terrazzo floor coverings.
• Includes pass-through housing assemblies and junction box for convenient cable routing.
• Pre-pour sleeve option available for cast-in-place core hole installation, reducing labor and cost.
• Meets UL Fire Classified standards for up to 3-hour rated floors, maintaining fire rating of the floor assembly.
• TopGuard‚Ñ¢ Protection ensures compliance with UL scrub water exclusion requirements for tile, carpet, and wood floors.
• Suitable for use in air handling spaces per National Electrical Code Sec 300-22(C).
