6AT Prewired Evolution‚Ñ¢ Poke Thru Device, Surface Style Cover, Aluminum - Electrical Distributor Solutions

The 6AT Prewired Evolution‚Ñ¢ Poke Thru Device is designed for retrofit and new construction applications, providing recessed access to power, communications, and audio/video services below floor level. This device offers maximum protection for installed equipment and is ideal for commercial office, education, healthcare, and open-space architecture environments. Its surface style aluminum cover is designed to sit on top of finished floors including carpet, tile, wood, polished concrete, or terrazzo, making it suitable for a variety of floor coverings.

Specifications

• Application: Commercial Office, Education
• Material: Steel and Aluminum
• Color: Aluminum
• Mounting: Step On
• Core Hole Size: 6 in
• Cubic Capacity: 24.5 in¬≥
• Dimensions: 7.25 in (Width) x 7.25 in (Height) x 16.25 in (Depth)
• Cable Entry: Knockouts & Pass Through
• Knockouts: 3/4" - 2"
• Product Weight: 9.44 lbs
• Made in USA: Yes
• Construction: Assembled
• Country of Origin: United States
• Manufacturer: Wiremold
• Manufacturer Part #: 6ATC2PAL

Features

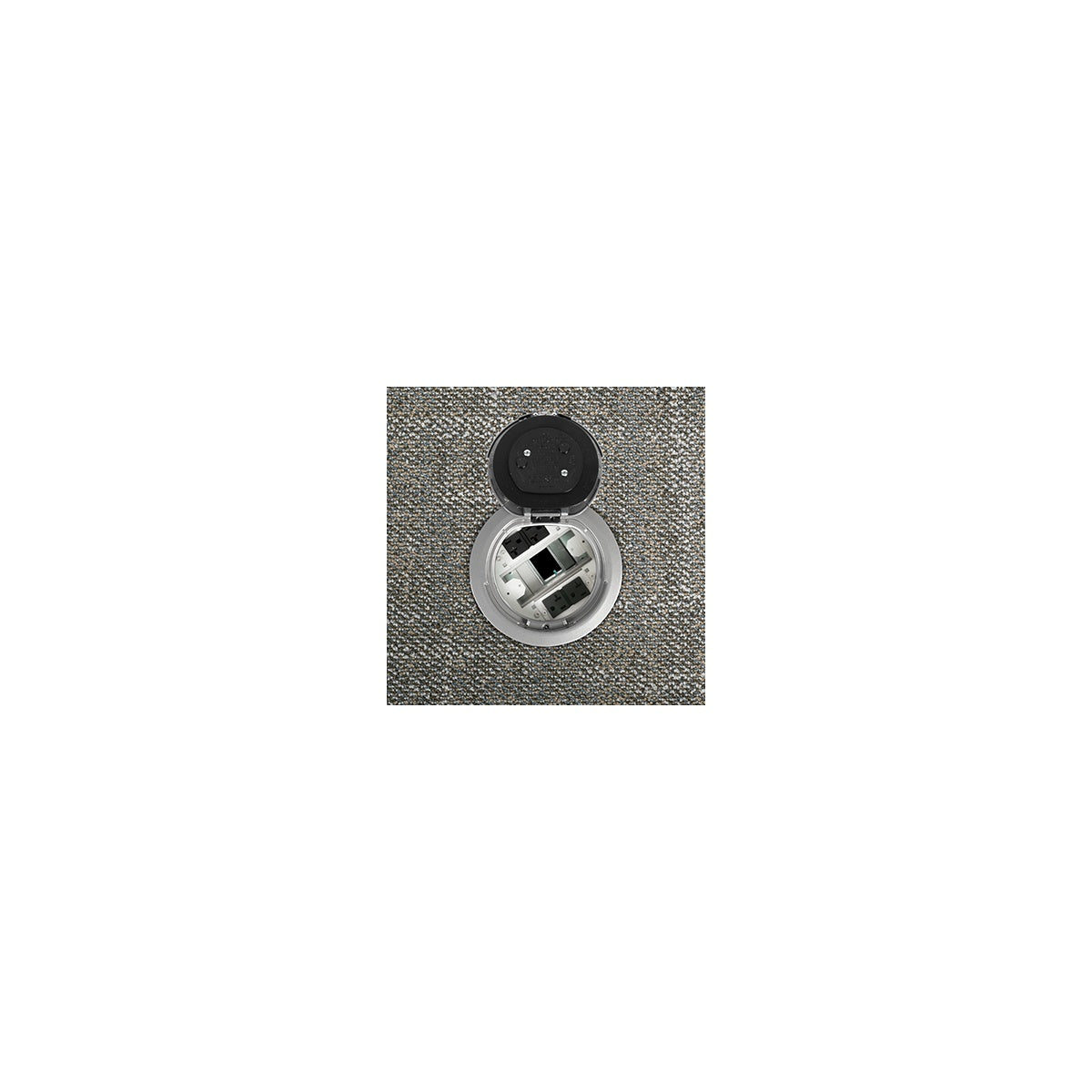

• Three (3) gangs of capacity allowing configuration for power, communications, and A/V services
• Recessed devices 4" below floor level for maximum protection and longevity

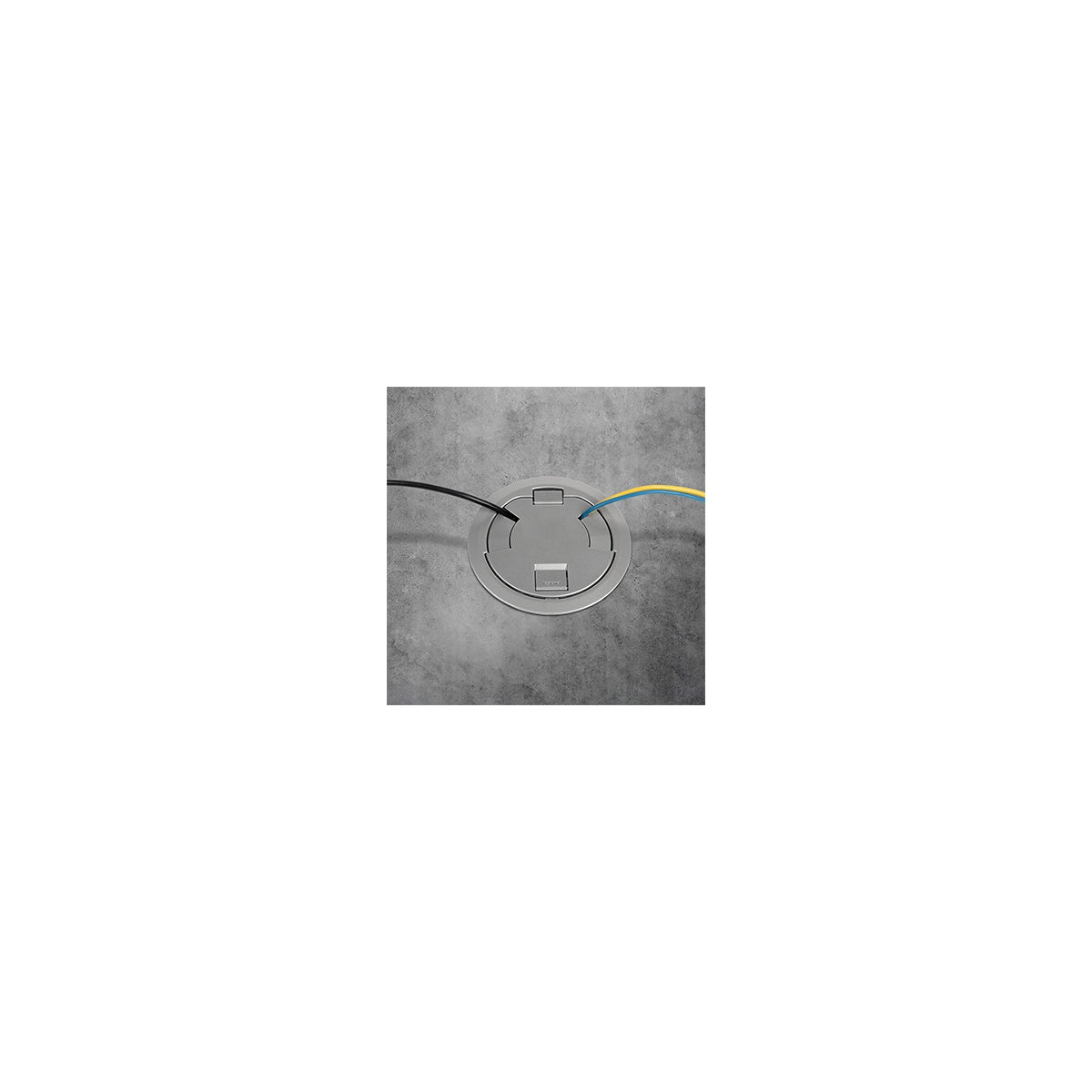

• Durable die-cast aluminum surface style cover designed for finished floor surfaces
• Step-on installation for quick, easy mounting without additional fasteners or a second installer
• Auto-close sliding egress doors that lock open and close tightly around cables, reducing trip hazards
• Compatible with Legrand AVIP devices and most 1-gang decorator style A/V devices
• UL Listed and UL Fire Classified for up to 2-hour rated floors
• Meets ADA Accessibility Guidelines with beveled trim flange to reduce tripping hazards
• Suitable for use in air handling spaces per National Electrical Code Sec 300-22(C)
• Available in multiple powder-coated finishes to match any space
