6AT Prewired Evolution‚Ñ¢ Poke Thru Device, Flush Style Cover, Aluminum - Electrical Floor Access Solutions

The 6AT Prewired Evolution‚Ñ¢ Poke Thru Device is designed for retrofit and new construction applications, providing recessed access to power, communications, and audio/video services below floor level. This device is ideal for commercial office, education, healthcare, and other open-space architecture environments requiring reliable and protected electrical floor access. It is suitable for various floor coverings including carpet, tile, wood, laminate, and concrete, making it a versatile solution for electrical distributors and switchgear suppliers seeking robust wire and cable management solutions.

Specifications

• Application: Commercial Office, Education
• Material: Steel and Aluminum
• Color: Aluminum
• Mounting: Step On
• Dimensions (HxWxD): 7.25 in x 7.25 in x 16.25 in
• Core Hole Size: 6 in
• Cubic Capacity: 24.5 in¬≥
• Knockouts: 3/4" - 2"
• Cable Entry: Knockouts & Pass Through
• Product Weight: 10.39 lbs
• Made in USA: Yes
• Country of Origin: United States
• Manufacturer: Wiremold
• Manufacturer Part #: 6AT2PAL

Features

• Recessed design with three gangs of capacity recessed 4" below floor level to maximize device protection and longevity

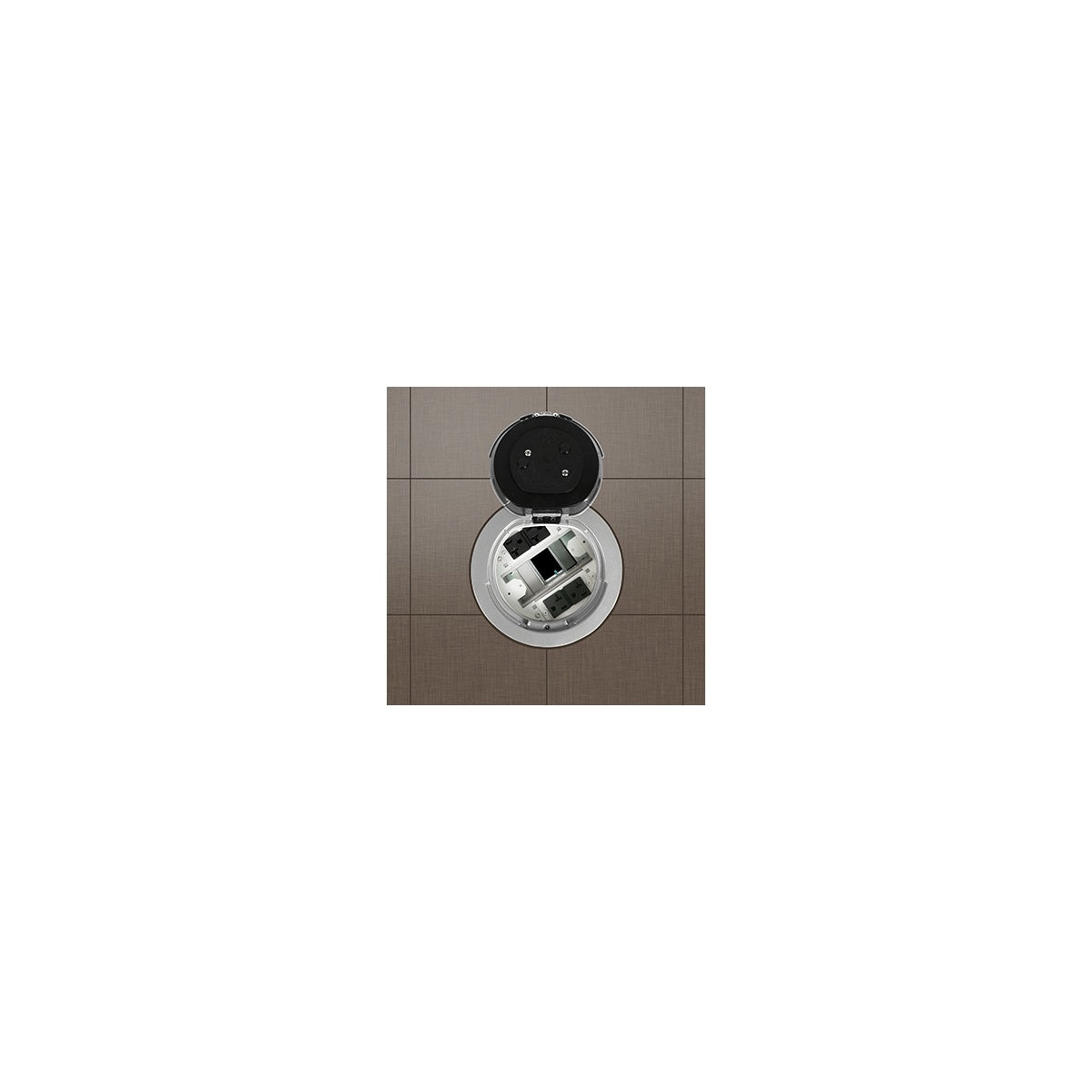

• Flush style aluminum cover designed to sit flush with finished floor coverings such as carpet, tile, or wood
• Low-profile metal cover available in multiple powder-coated and plated finishes to match any space
• Step-on mounting allows quick and easy installation without additional fasteners or a second installer
• Compatible with power, communications, and audio/video services, supporting flexible configurations for space needs
• Knockouts and pass-through cable entry options provide versatile wiring access
• UL Listed and UL Fire Classified for up to 2-hour rated floors, maintaining fire safety standards
• Meets ADA Accessibility Guidelines with beveled flange design to minimize tripping hazards
• Suitable for use in air handling spaces in accordance with National Electrical Code Section 300-22(C)
