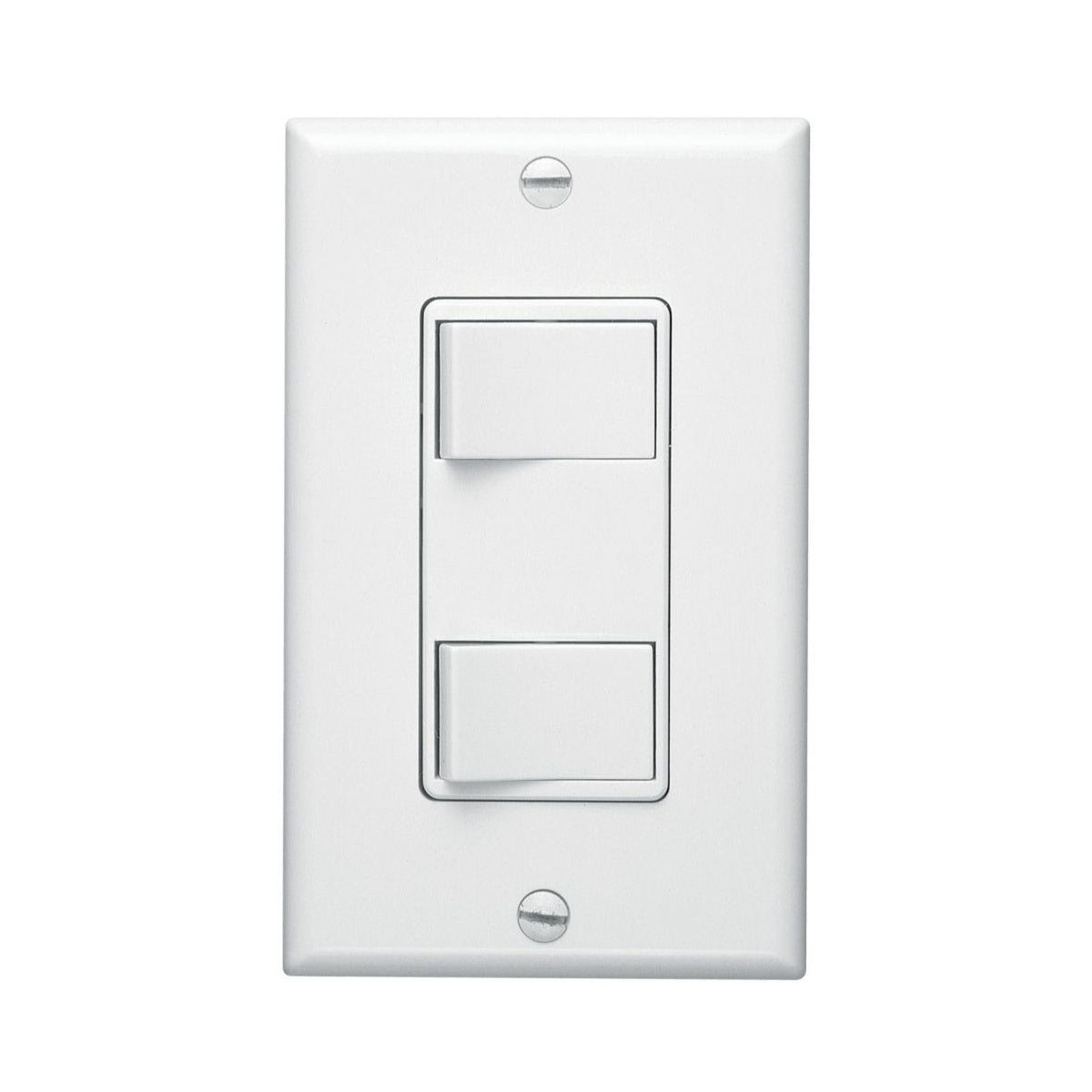

68W Multi Function Wall Control Switch

The 68W Multi Function Wall Control Switch by Broan is designed for controlling electrical appliances such as range hoods and lighting. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring a reliable multi-function switch. This switch supports 2-rocker or 3-rocker configurations for versatile ON/OFF control in residential or commercial electrical installations.

Specifications

• Manufacturer: Broan
• Manufacturer Part #: 68W
• Product Weight: 0.35 lb
• Electrical Rating: Each rocker rated at 15 AMPS, 120 VAC; Total load must not exceed 20 AMPS, 120 VAC
• Wire Compatibility: Copper or copper-clad wire only; #14 AWG for push-in terminals; #12 or #14 AWG for screw terminals
• Switch Box Requirements: 3½" deep single-gang or 2" deep double-gang box for 2-rocker; 2½" deep double-gang box with adapter for 3-rocker
• UPC: 026715038855

Features

• Multi-function control with 2 or 3 rocker switches for versatile appliance operation
• Designed for safe installation with grounded switch box requirement
• Includes push-in and screw terminal wiring options for ease of installation
• Compatible with range hoods and other electrical appliances requiring ON/OFF switching
• UL approved wiring clamps recommended for secure cable attachment
• Warranty void if miswired; installation must comply with local electrical codes and NEC

Downloads & Links

• Installation/Operator
