Performance Overview

• Style: Single-Sided
• Size: 8 ft
• Reach Height: 12 ft
• Type: Type IA Duty Rating
• Load Capacity: 300 lbs
• Performance Rating: 4 star

Features

• Heavy duty internal spreaders
• Every rivet backed up by metal, metal plates or washers to protect rails
• All steps and two rear horizontals are knee-braced
• Back-up plates reinforce all top connectors

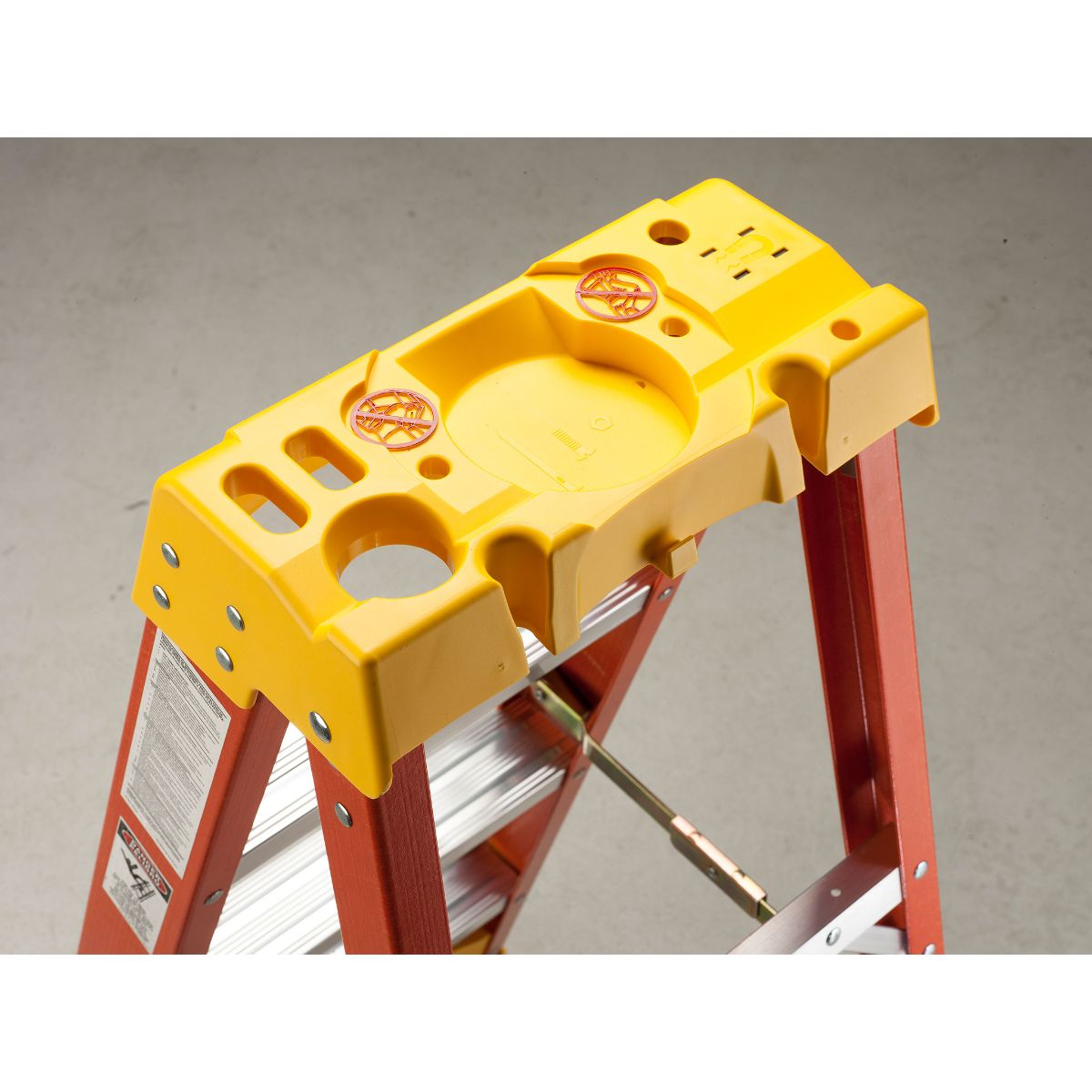

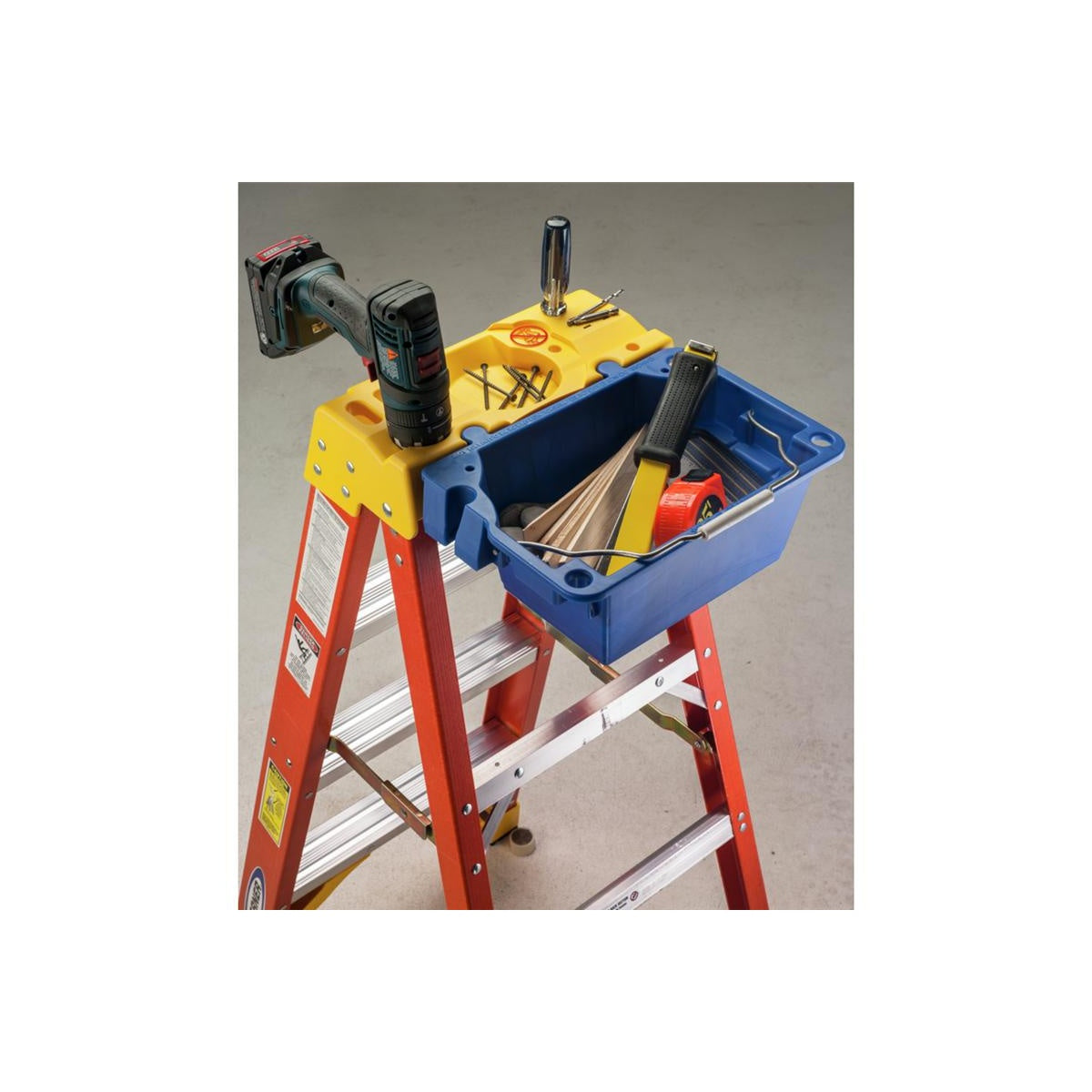

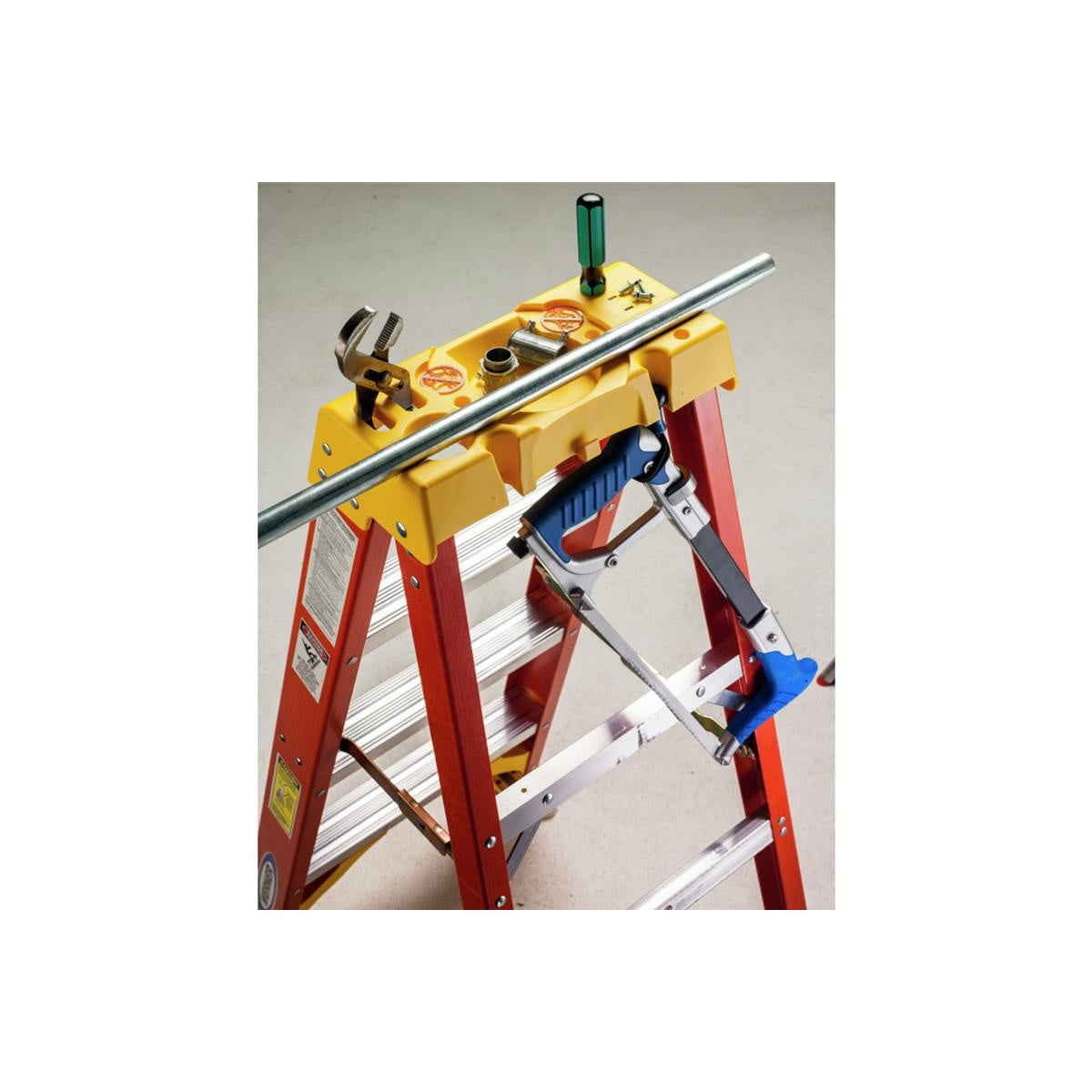

• HolsterTop with Lock-In System secures tools to increase productivity
• Full set of rear horizontals spaced one per foot
• Shoulder bolt and nut on top hinge
• Double riveted slip-resistant TRACTION-TRED® steps
• Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2
• 4 rivets attach top to each front rail

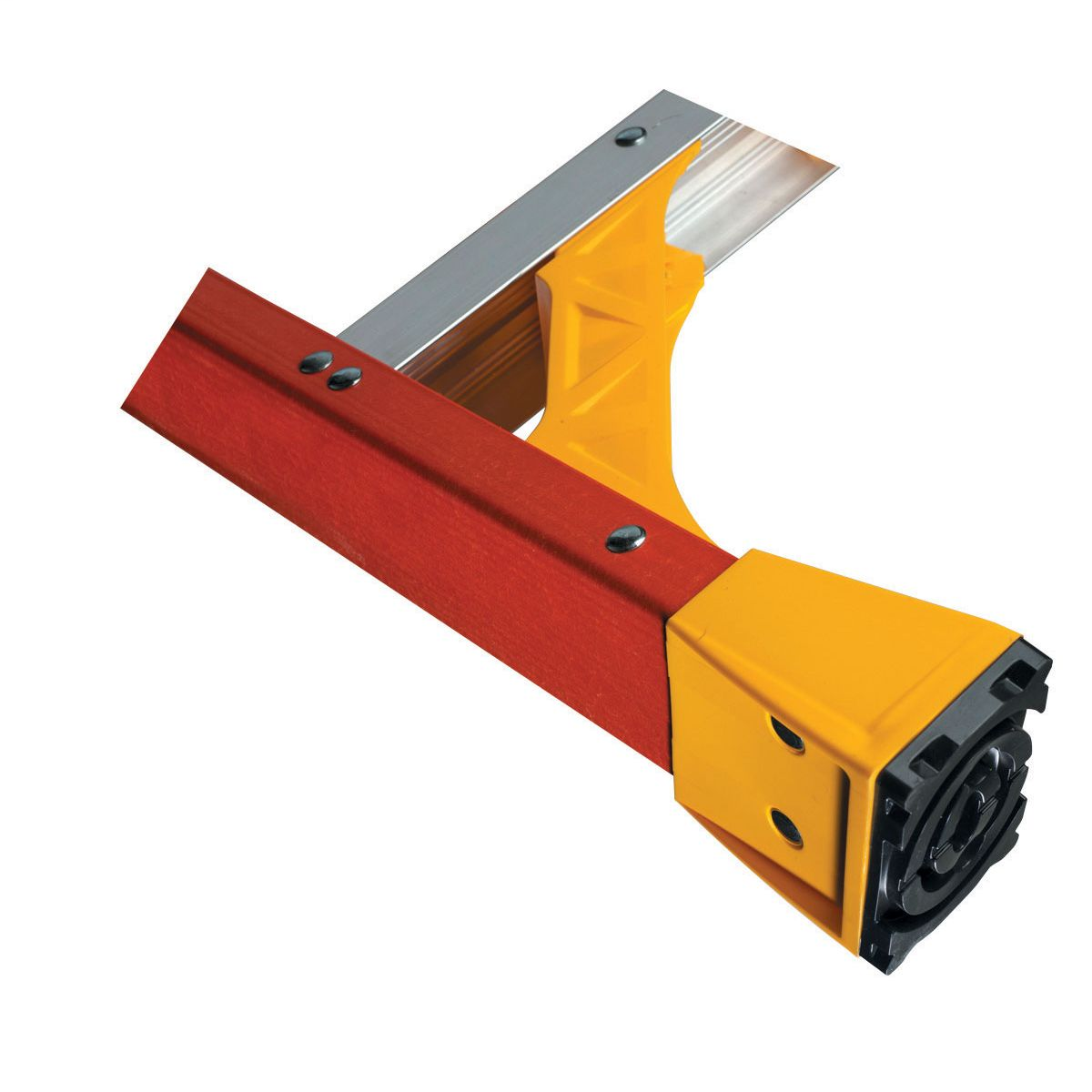

• Slip-resistant foot pads attached to the EDGE® structure

Specifications

• Reach Height: 12 ft
• Edge Bracing: Heavy
• Material: Fiberglass
• With Pail Shelf: No
• Certifications: ANSI A14.5 (2007); OSHA
• Type: Type IA Duty Rating
• Performance Rating: 4 star
• Max. Standing Height: 5 ft 9 in

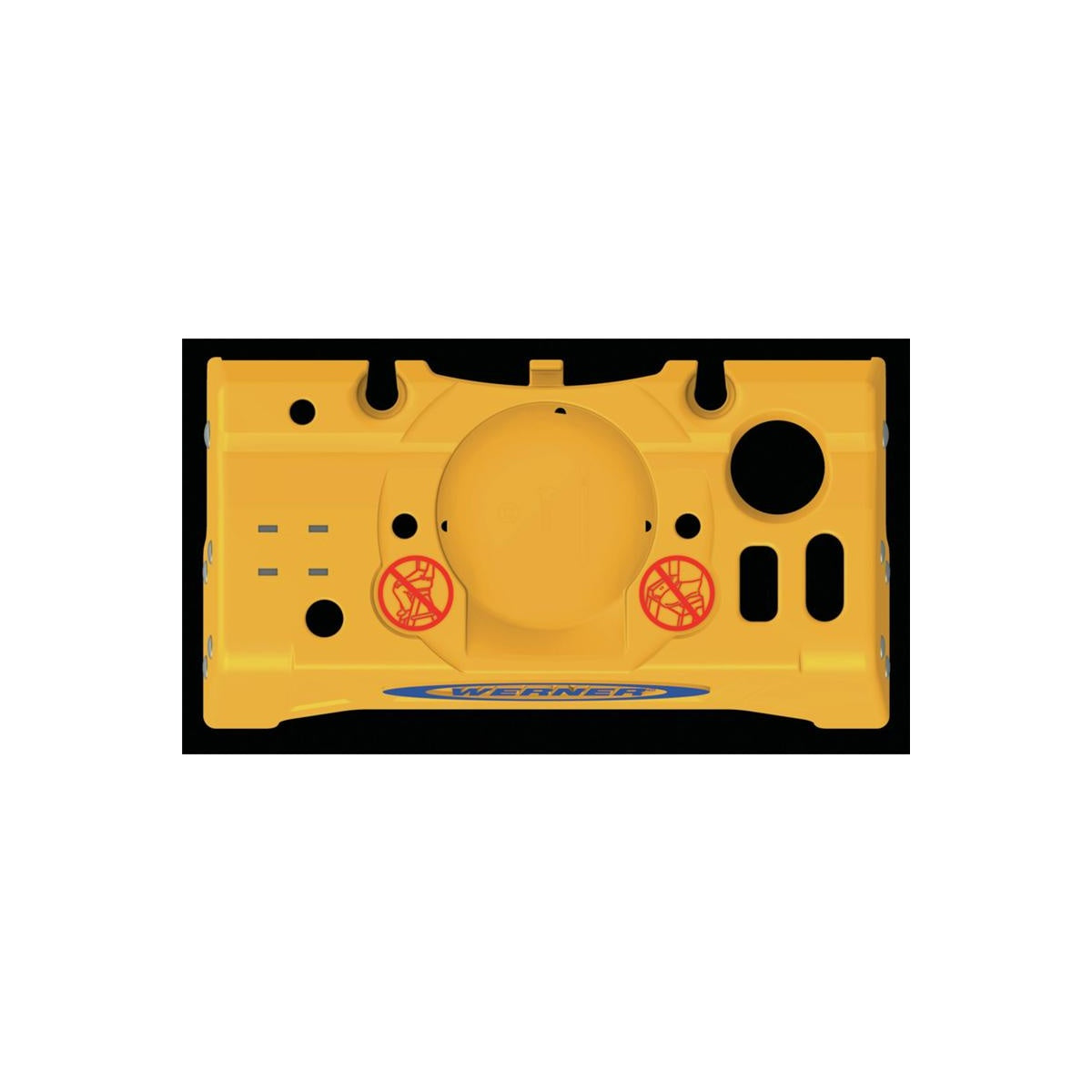

• Description of Top Features: Paint tray slot, can hook, Lock in accessory sockets, 2 tool holes, drill hole, p int, quart & gallon paint can, 2 parts trays, tape measure slot
• Size: 8 ft
• Approx. Spread: 53-5/8 in
• Approx. Cu. Ft. Per Unit: 8.1
• Approx. Width: 26-7/8 in
• Approx. Shipping Wt. Lbs.: 30
• Load Capacity: 300 lbs
• Spreader Material: Steel

Dimensions

• Rear Flange Dimension: 1-3/16 in
• Steps Dimension: 3 in
• Top Dimension: 5-3/4 in x 13 in
• Front Rails Dimension: 3-1/8 in
• Rear Rails Dimension: 1-7/8 in
• Front Flange Dimension: 1-3/16 in

Accessories

• AC27-P Lock-In Paint Cup

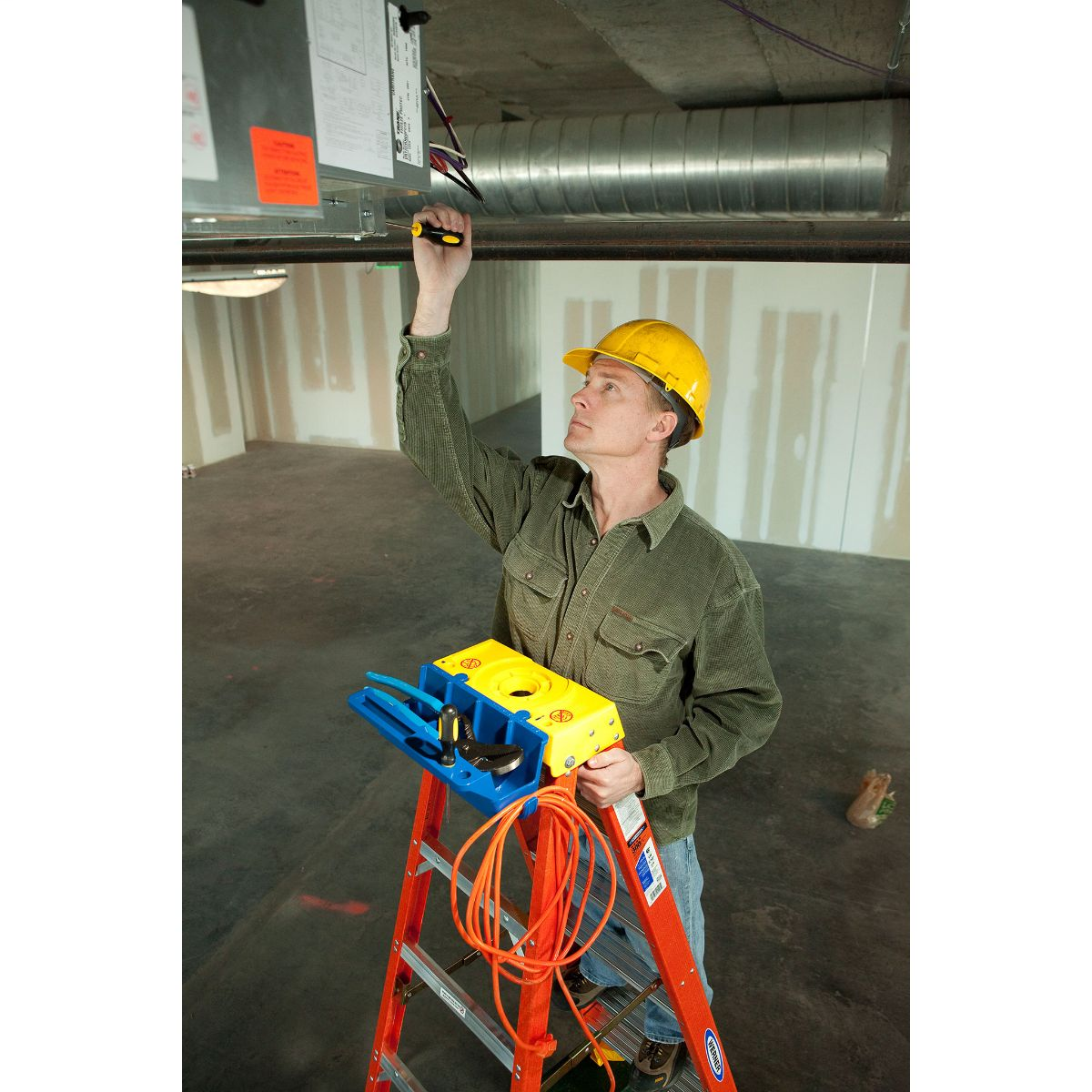

• AC54-JC Lock-In Job Caddy
• PK76-9 Universal Pail Shelf
• AC56-UH Lock-In Utility Hook
• PK76-3 Auto-Closing Pail Shelf
• 76-2 Molded Plastic Pail Shelf
• AC24 Multipurpose Project Tray
• 21-20 Grating Shoes
• AC52-UB Lock-In Utility Bucket
• AC11 Stepladder Hanger
• AC50-JB-3 Lock-In Job Bucket
• AC58-TL Lock-In Tool Lasso
