600089A37 SHUNT TRIP BL
SKU: #396544
Part: #B255H00S01
UPC: 662643649420
600089A37 SHUNT TRIP BL
SKU: #396544
Part: #B255H00S01
UPC: 662643649420
Next day delivery
Description

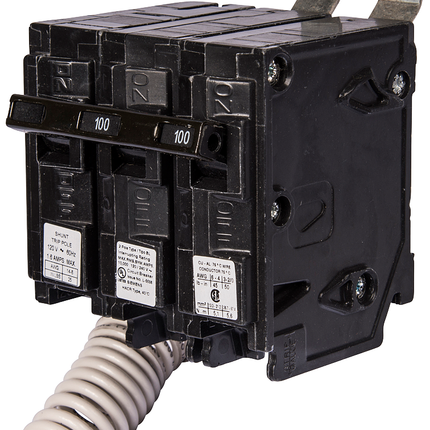

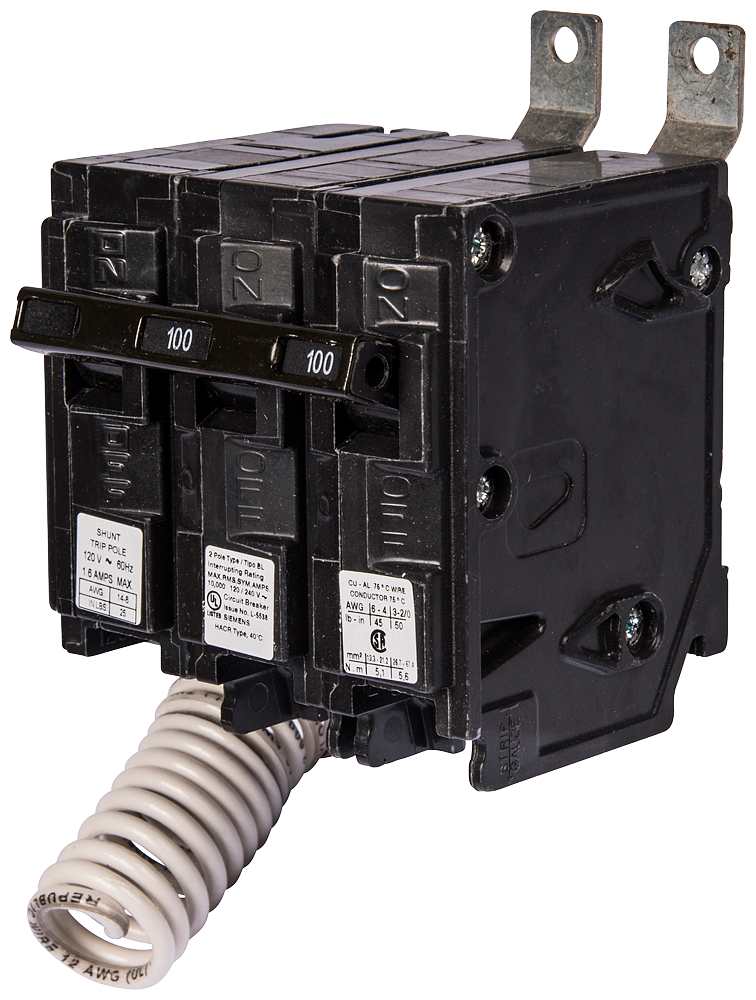

600089A37 SHUNT TRIP BL Molded Case Circuit Breaker
The Siemens 600089A37 SHUNT TRIP BL is a low voltage molded case circuit breaker designed for panelboard mounting in electrical distribution systems. It operates at 120/240VAC and is suitable for use by electrical distributors and switchgear suppliers requiring reliable circuit protection with shunt trip functionality. This 2-pole breaker provides thermal magnetic trip protection and complies with UL 489 standards.
Specifications
- Manufacturer: Siemens
- Type: BL Molded Case Circuit Breaker
- Voltage Rating: 120/240V
- Number of Poles: 2
- Interrupt Rating: 22 AIC
- Trip Range: Thermal Magnetic
- Special Feature: Shunt Trip 120V
- Mounting Type: Panelboard Mounting, Bolt-On Electrical Connection
- Dimensions (W x H x D): 3 in x 2 in x 3 in
- Standard Compliance: UL 489
- Country of Origin: Mexico
- Product Weight: 1.08 lbs
Features
- Shunt trip feature enables remote tripping of the breaker at 120V
- Thermal magnetic trip mechanism for reliable circuit protection
- Compact design suitable for panelboard mounting
- Bolt-on electrical connection ensures secure installation
