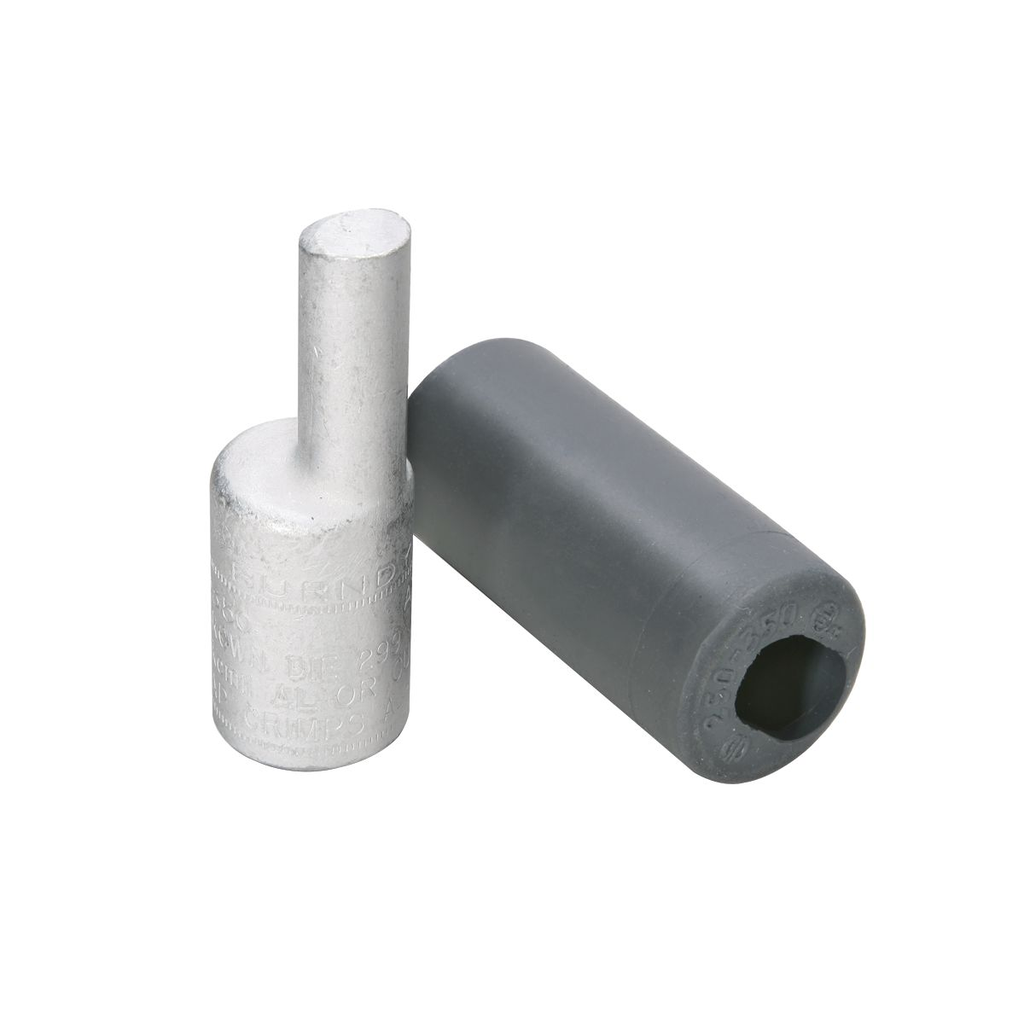

600 kcmil Aluminum Termination Pin – Electrical Wire Termination

This 600 kcmil aluminum termination pin is designed for wire termination applications in electrical distribution and lighting solutions. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable aluminum-to-copper conductor connections. The pin features an offset pin connection type and is compatible with both aluminum and copper conductors.

Specifications

• Material: Aluminum
• Conductor Material: Aluminum / Copper
• Connection Type: Offset Pin
• Pin Diameter: 0.73 inch
• Pin Length: 1.64 inch
• Finish: Tin-Plated
• Color Coding: Yellow
• Insulation: Yes
• Insulation Type: Rubber
• Conductor Type: Code/Flex
• Width: 4.02 in
• Product Weight: 0.4600 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Aluminum compression pin adapter rated for aluminum and copper conductors
• Tin-plated finish for enhanced corrosion resistance
• Rubber insulation for electrical safety
• Color-coded yellow for easy identification
