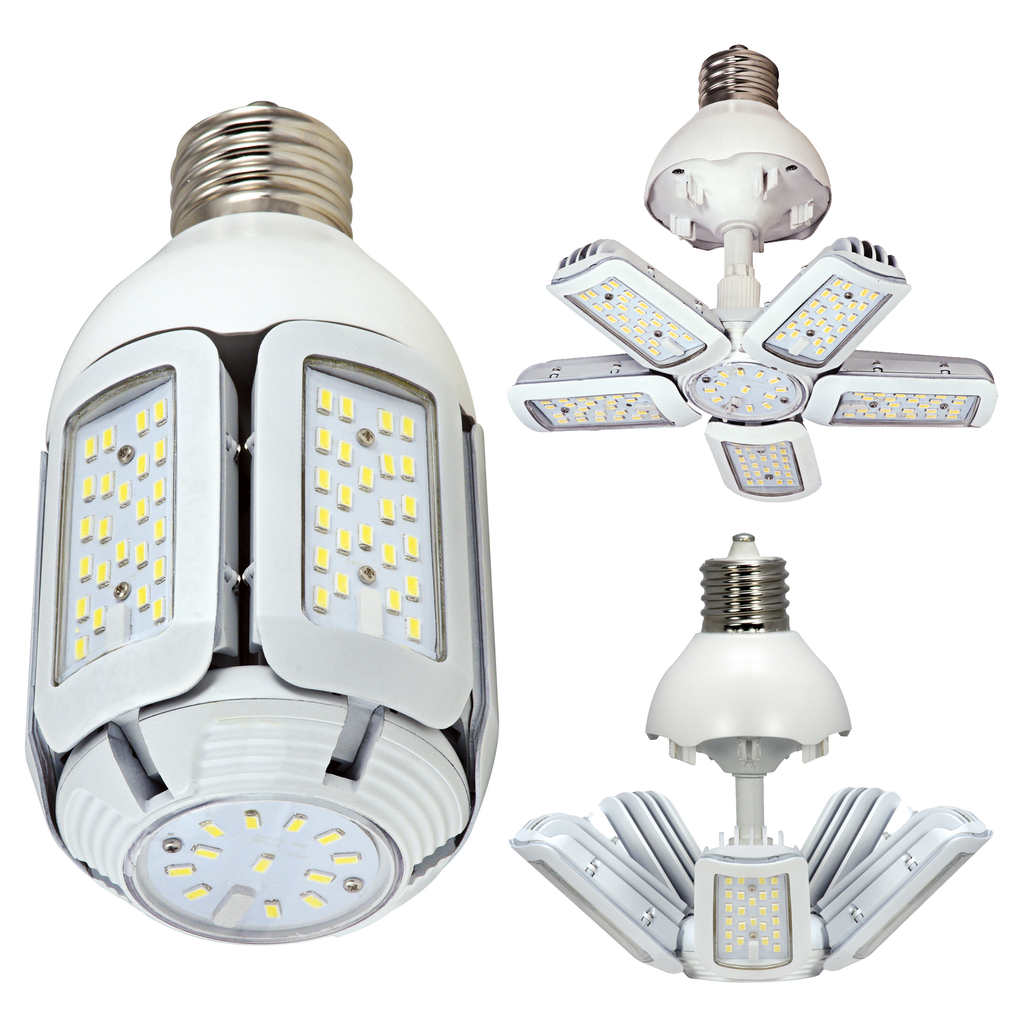

60 Watt LED HID Replacement Lamp – LED Lighting Solutions

This 60 Watt LED HID Replacement lamp by Satco is designed for indoor lighting applications, providing a natural light output with a color temperature of 5000K. It features a Mogul extended base (EX39) compatible with standard fixtures and offers an adjustable beam angle with a 360-degree spread. Suitable for electrical distributors and switchgear suppliers, this LED lamp operates on a wide voltage range of 100-277V and delivers an efficient 7800 lumens output, replacing traditional 500W incandescent bulbs.

Specifications

• Manufacturer: Satco
• Manufacturer Part #: S29752
• Wattage: 60W
• Voltage Range: 100-277V
• Lumens: 7800 lumens
• Color Temperature: 5000 kelvins (Natural Light)
• Beam Spread: 360 degrees
• Base Type: Mogul Extended (EX39)
• Finish: Clear
• Lens Color: Clear
• Housing Color: White
• IP Rating: IP65
• Average Rated Life: 50,000 hours
• Operating Temperature Range: -13¬∞F to +113¬∞F (-25¬∞C to +45¬∞C)
• Amperage: 0.600-0.217 Amperes
• Weight: 2.05 lbs
• Dimmable: No
• Operating Frequency: 50/60 Hz
• Power Factor: >0.9
• Safety Listing: cULus
• Location Rating: Damp
• RoHS and FCC Compliant
• DLC Approved

Features

• Direct wire range voltage from 100 to 277 volts for versatile installation
• Built-in surge protection rated at 2.5KV for enhanced durability
• Approved for use in totally enclosed fixtures
• Operates in both base up or base down positions
• Suitable for indoor environments with damp location rating
• Emits no UV light and contains no mercury
• Adjustable beam angle for customizable lighting distribution
• Energy-efficient LED technology with a 5000K natural light output
• Long service life reducing maintenance and replacement costs

Downloads & Links

• Spec Sheet
