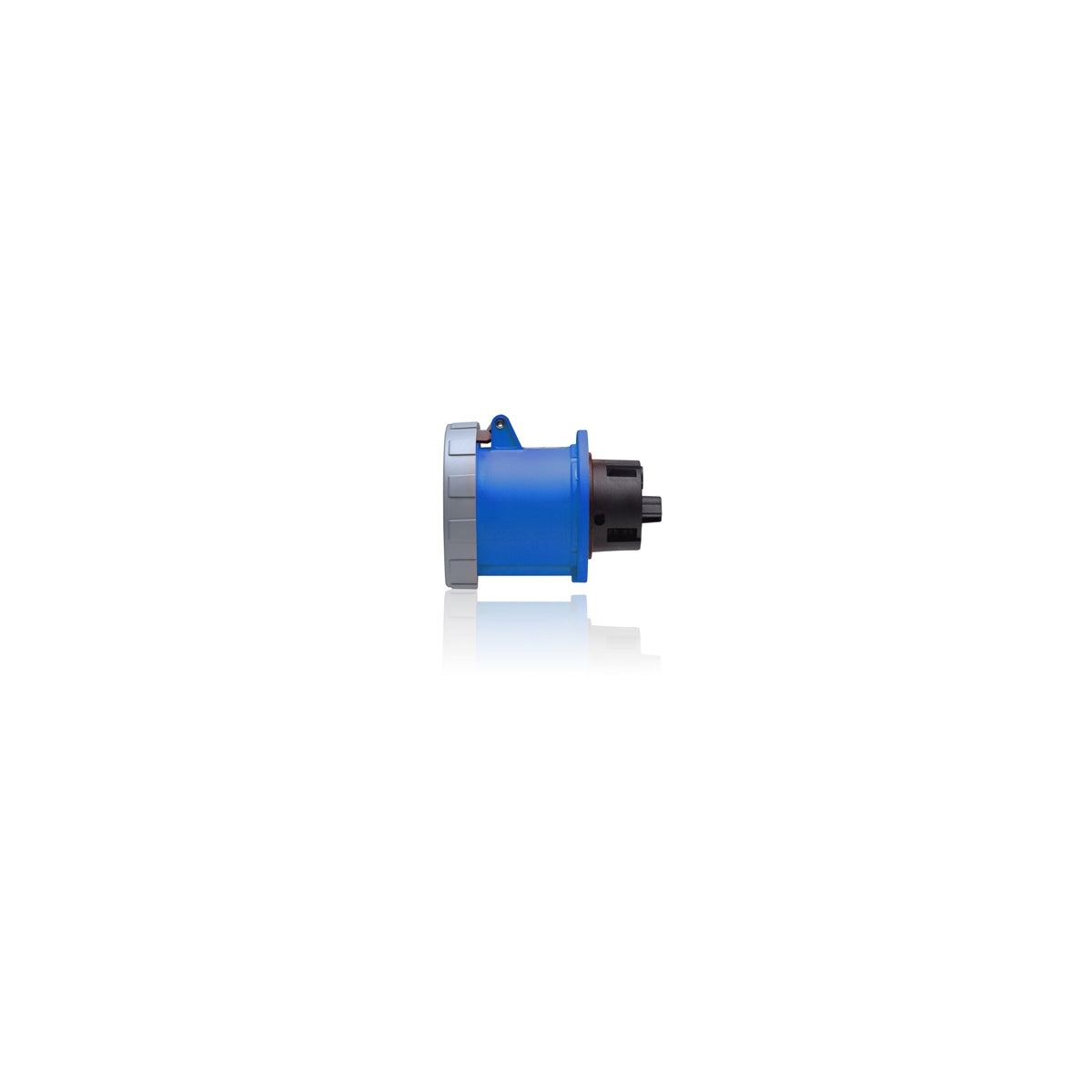

60 Amp, 250 Volt 3-Phase, 3P, 4W, Outlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - BLUE
SKU: #14803
Part: #460R9W
UPC: 078477839027
60 Amp, 250 Volt 3-Phase, 3P, 4W, Outlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - BLUE
SKU: #14803
Part: #460R9W
UPC: 078477839027
Description
60 Amp, 250 Volt 3-Phase Receptacle - Industrial Grade Watertight Outlet
This 60 Amp, 250 Volt 3-Phase, 3P, 4W North American Pin & Sleeve Receptacle is designed for industrial applications requiring reliable and watertight electrical connections. Manufactured by Leviton, this device is suitable for use in harsh environments where durability and safety are critical. It complies with CSA standard C22.2 No 182.1 and features an IP67 rating for protection against dust and water ingress. Ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring robust receptacles for power distribution.
Specifications
- Amperage: 60 amperes
- Voltage: 250 Volt
- Phases: 3-Phase
- Poles: 3
- Device Type: Receptacle
- Body Material: Valox 357
- Color: Blue
- Ingress Protection: IP67
- Dielectric Withstand Voltage: 2000 volts
- Flammability Class: Rated V-0 Per UL 94
- Manufacturer: Leviton
- Manufacturer Part Number: 460R9W
- Product Weight: 1.6 lbs
- UPC: 078477839027
- Certification: CSA C22.2 No 182.1
Features
- Industrial grade construction for durability in demanding environments
- Watertight design compliant with IP67 for protection against dust and water
- Valox 357 body material providing high mechanical strength and flame resistance
- Designed to meet IEC standards 309-1 and 309-2 for pin and sleeve devices
- Compatible only with IEC-rated devices to ensure safety and prevent improper mating
- Easy installation with assembly screws and cable clamp system for secure wiring
- Suitable for use with copper or copper-clad wire conductors
- Includes grounding wire connection requirement for safety
