Features

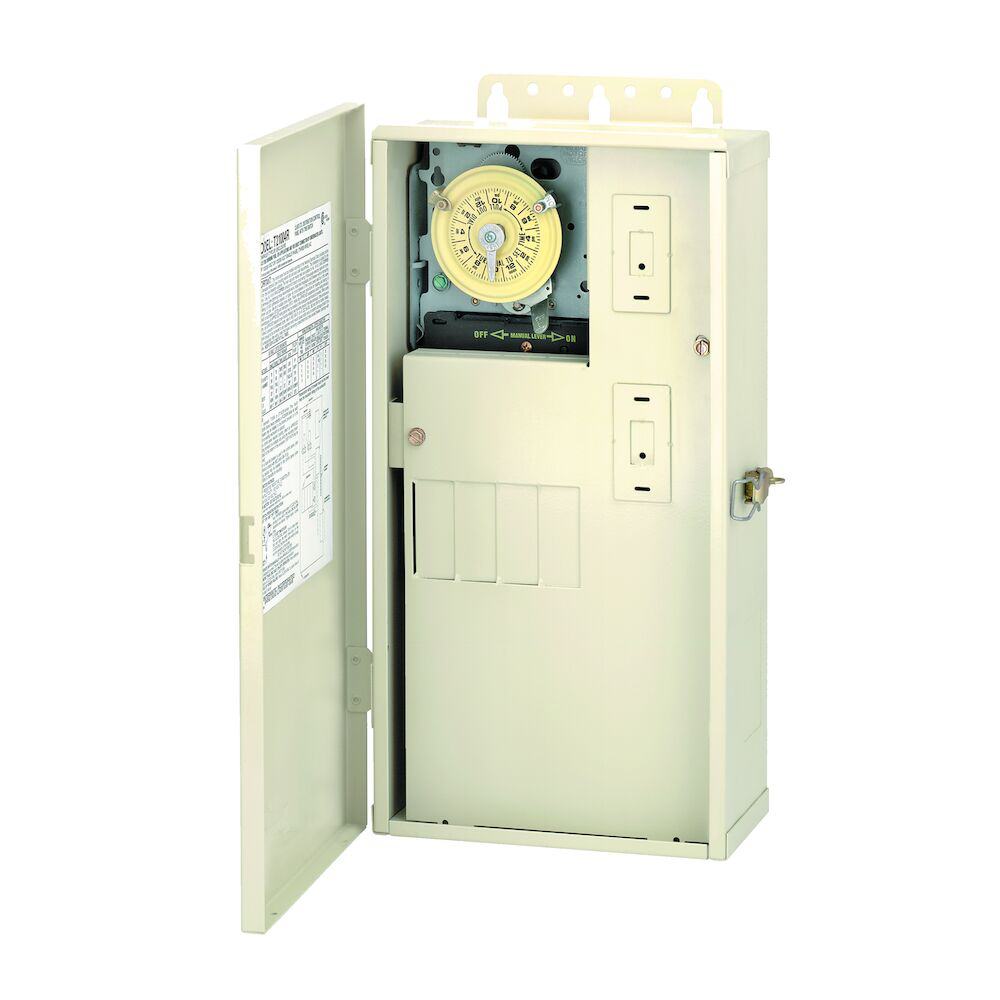

• Four breaker spaces
• Accepts PF1000M, P1403ME, P1353ME, P4043ME, P4243ME,T100M or RC2000M Series mechanisms
• Accepts many interchangeable type breakers
• Load center dead front has two knockouts for switches or GFCIs and one on the side
• Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately

Prop 65

• Please see the Warning @ www.P65Warnings.ca.gov - Lead

Specifications

• Country of Origin: Mexico
• Product Height: 16.875 in; 428.6 mm
• Product Depth: 4.75 in; 120.7 mm
• Operating Temperature Min: -40°F; -40°C
• Operating Temperature Max: 130°F; 54°C
• Warranty Period: 1-Year limited
• Color: Beige
• Applications: Distribution/Control Panel; Motor Control; Pump Control
• Input Voltage Ranges: 208-277 VAC, 60 Hz
• Number Of Breaker Knockouts: 4
• Number Of Circuits: 1
• Enclosure Type: 3R Beige metal
• Switch Type: DPST
• Power Consumption Max W: 3 W
• Load Center Ratings: 60 A, 120 VAC, 60 Hz; 60 A, 208 VAC, 60 Hz; 60 A, 240 VAC, 60 Hz, Single Phase
• Pilot Duty Load Ratings Ranges: 1000 VA, 120-240 VAC, 60 Hz
• Load Center Rating Display: 60 A, 120/240 VAC or 120/208 VAC, Single Phase
• Mechanism Supply Voltage: 240 VAC, 60 Hz
• Mechanisms: T104M
• PDF Standards And Certifications: cCSAus
• Material: Metal

Certifications

• CSA Certification: cCSAus

Load Ratings

• Pilot Duty Load Ratings: 1000 VA, 120 VAC, 60 Hz; 1000 VA, 208 VAC, 60 Hz; 1000 VA, 240 VAC, 60 Hz
• Tungsten Load Ratings: 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz
• Tungsten Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
• Resistive Load Ratings: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
• Resistive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
• Inductive Load Ratings: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
• Inductive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
• Motor Load Ratings Ranges: 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz

Knockout

• Knockout Dimensions Bottom: (5) combination 1/2" - 3/4" and (3) combination 3/4" - 1"
• Knockout Dimensions Back: (1) combination 1/2" - 3/4" and (1) 3/4" - 1"
• Knockout Dimensions Left: (1) combination 1/2" - 3/4"
• Knockout Dimensions Right: (1) 1 3/4" x 2 3/4"
• Number Of Receptacle Switch Knockouts: 2
