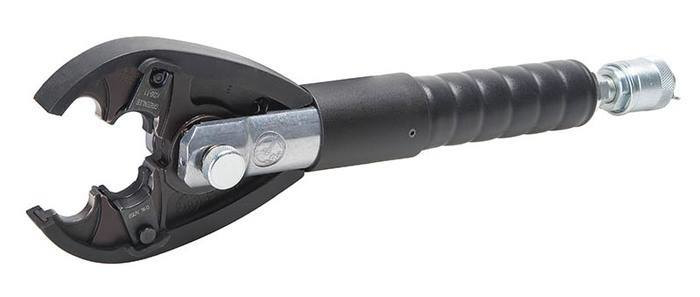

6-Ton Remote Crimping Tool – Hydraulic Crimping Tool for Electrical Applications

The Greenlee 6-Ton Remote Crimping Tool (Model RK425) is a handheld, single-acting hydraulic crimping tool designed for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers. It features removable crimping jaws and requires an external 10,000 psi hydraulic power source, such as Greenlee hydraulic pumps or intensifiers, to deliver precise and reliable crimps in electrical connectors and cables. This tool is engineered for professional crimping applications on copper and aluminum connectors, ensuring secure electrical connections in a variety of industrial and utility settings.

Specifications

• Crimping Force: 6 tons (53 kN)
• Length: 15" (381 mm)
• Width (head open): 4" (108 mm)
• Weight (with jaws): 4 lbs. (1.8 kg)
• Crimp Cycle Time: Approximately 4 seconds
• Hydraulic Connection: 3/8" male screw-type coupler
• Maximum Operating Pressure: 10,000 PSI (700 bar)
• Country of Origin: Germany
• Manufacturer: Greenlee
• Manufacturer Part Number: RK425
• UPC: 783310015574

Features

• Single-acting hydraulic tool with internal spring return for efficient operation
• Compatible with seven cutting and crimping jaws, including patented quick release pin for secure jaw engagement
• Lightweight design enables single-handed operation for improved jobsite productivity
• Flip-top crimping head accommodates a wide range of conductor sizes without the need to change dies
• Removable crimping jaws allow flexibility for various connector types and sizes
• Durable construction suitable for professional electrical and utility applications
• Requires an external 10,000 psi hydraulic power source, compatible with Greenlee pumps and intensifiers

Downloads & Links

• Brochure
• Operator's Manual
