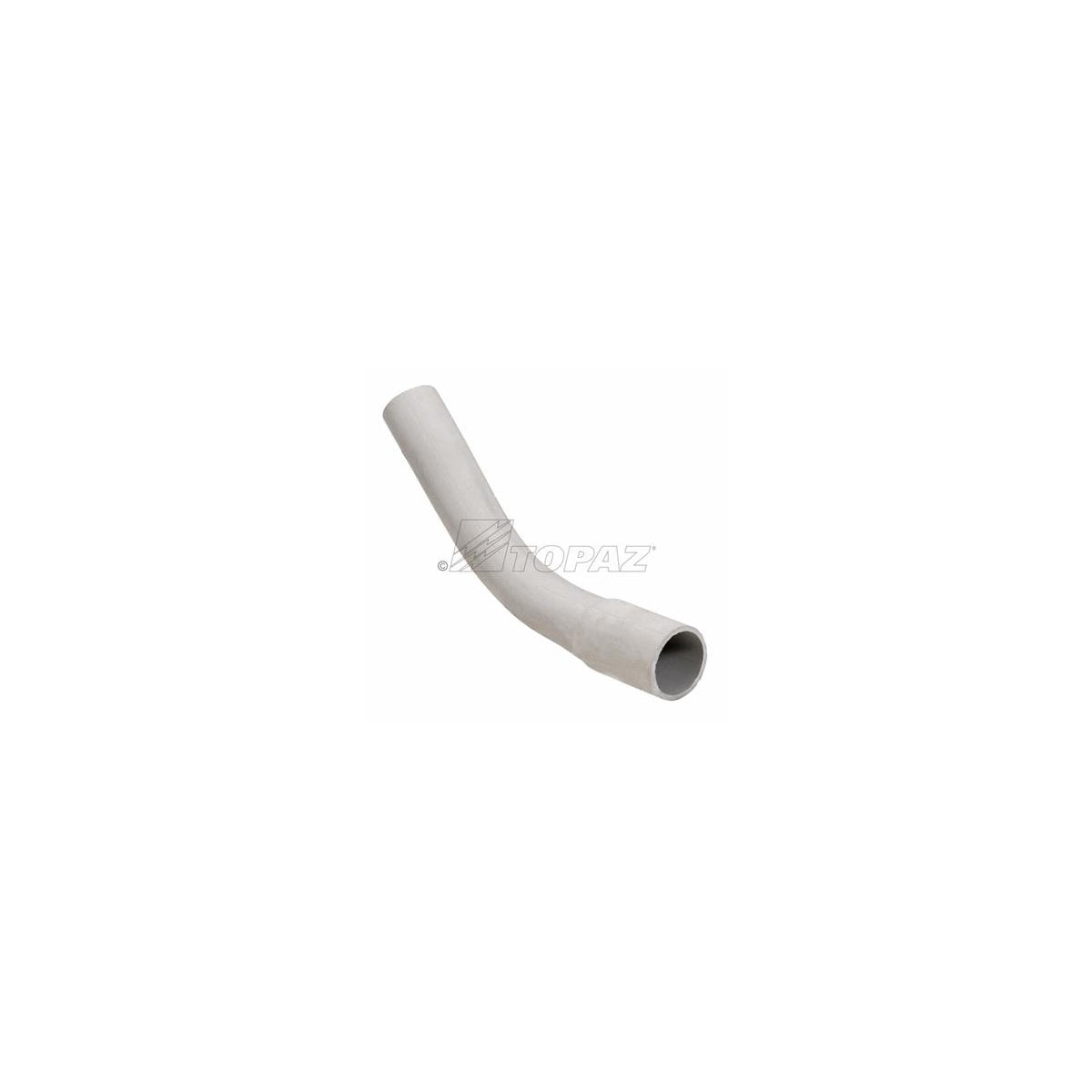

6" Schedule 40 PVC 45° Bell End Elbows – Electrical Conduit Fittings

Topaz’s 6" Schedule 40 PVC 45° Bell End Elbows provide a reliable solution for enabling fast, easy, and secure 45-degree directional changes in conduit runs. Designed for use by electrical distributors and switchgear suppliers, this fitting facilitates design configuration changes in electrical conduit systems. Suitable for both above-ground and below-ground installations, including concrete encasement, it supports robust wire and cable protection in diverse environments.

Specifications

• Size: 6"
• Material: Schedule 40 PVC
• Directional Change Angle: 45°
• Weight: 10.95 lbs
• UPC: 751338231870
• Manufacturer Part #: 1260B
• Minimum Radius: 30"

Features

• Heated and bent Schedule 40 PVC conduit enabling precise 45° directional change
• One end features a standard conduit bell, the opposite end is a spigot (plain) end
• Both ends are designed for solvent weld connections
• Suitable for use above ground, buried, and in concrete encasement
• cULus approved for sizes 1/2" to 6"

Downloads & Links

• Spec Sheet
