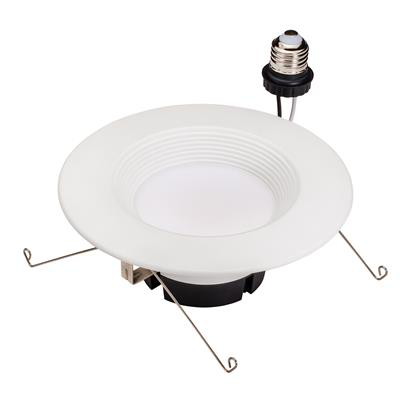

6" Performance CCT Selectable 11W, Baffle Trim - Recessed Downlighting

Topaz’s 6” Performance CCT Selectable 11W Baffle Trim recessed downlight offers versatile lighting solutions suitable for retrofit and new construction applications. Designed for commercial, residential, and multi-family settings, this luminaire provides five selectable color correlated temperature (CCT) options. It is compatible with insulated and non-insulated ceilings and features easy installation with V-spring clips, quick-connectors, and an E26 adapter, making it an efficient choice for electrical distributors and lighting solution providers.

Specifications

• Power: 11W
• Luminous Flux: 1135.8 Lumens
• Efficacy: 105.6 Lumens per Watt
• Input Voltage: 120 V
• Input Current: 0.0949 A
• Power Factor: 0.945
• Frequency: 60 Hz
• Color Temperature Options: 2700K, 3000K, 3500K, 4000K, 5000K selectable
• Product Weight: 4.96 lbs
• Manufacturer Part Number: RTL/603WH/11W/CTS-46

Features

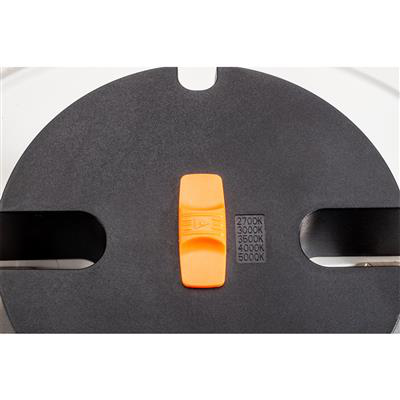

• Five selectable CCT options via integrated switch for flexible lighting design
• Suitable for insulated and non-insulated ceiling installations (Type IC and Non-IC)

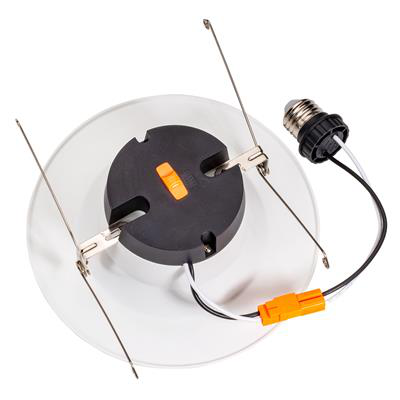

• Easy installation with V-spring clips and quick-connectors
• Equipped with an E26 Edison base adapter for retrofit compatibility
• Compact 6" baffle trim design for aesthetic integration
• Energy-efficient LED technology with high lumen output and efficacy

Downloads & Links

• RLM79 - TL603WH11WCTS
• Installation Sheet_RTL 5 and 6 inch - Color Selectable
• IES File - RTL603WH11WCTS.IES
• Spec Sheet
• Dimmer Compatibility-CCT select downlights
