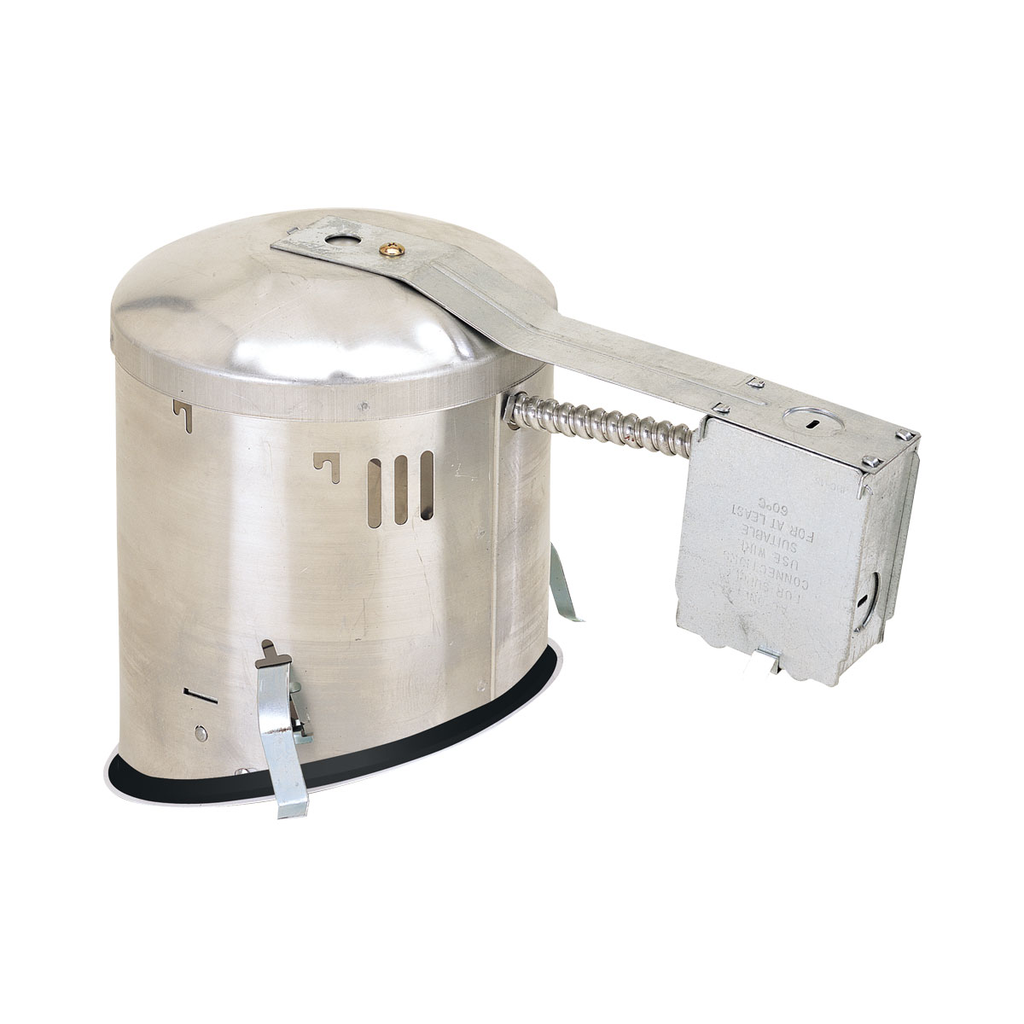

6" Line Voltage IC AT Sloped Ceiling Remodel Housing Lighting Solution

The 6" Line Voltage IC Air-Tight Sloped Ceiling Remodel Housing by Nora Lighting is designed for use in existing sheet rock insulated ceilings. It is suitable for direct contact with thermal insulation and provides energy savings through airtight construction that reduces airflow through the ceiling. This remodel housing is compatible with Nora 6" sloped line voltage trims and all LED retrofits, making it ideal for electrical distributors and lighting solutions providers seeking reliable and efficient recessed lighting housings.

Specifications

• Manufacturer: Nora Lighting
• Manufacturer Part #: NHRIC-926QAT
• Input Voltage: 120V
• Socket Type: Medium base
• Maximum Wattage: 75W (varies by trim selection)
• Housing Material: 0.035" Aluminum with riveted dome cap
• Structural Arm Material: 0.045" Galvanized steel
• Dimensions (W x H x L): 7.125 in x 8.5 in x 15.5 in
• Product Weight: 1.7 lbs
• Junction Box: Prewired 15 cubic inch 0.064" thick galvanized steel with multiple knockouts and quick connectors
• Air Flow Restriction: <2 CFM per ASTM-283 Air-Tight requirements
• Mounting: High tension springs for existing sheet rock ceilings; accommodates ceiling thickness from 5/8" to 3/4" and pitches from 1/12 to 6/12
• UL Listing: cULus listed for damp location and through branch circuit wiring

Features

• IC Air-Tight design reduces airflow through the ceiling for energy savings
• Rated for direct contact with insulation (not for spray foam insulation)
• Quick connect feature with UL approved connectors for easy wiring
• Installation-ready for existing sheet rock ceilings
• Galvanized steel socket plate adjusts for ceiling pitch
• Protective cap included to protect socket interior during ceiling painting
• Thermal protector rated for 90°C affixed to inner top surface
• Accommodates ceiling pitches from 1/12 to 6/12 with designated trims

Downloads & Links

• Spec Sheet
