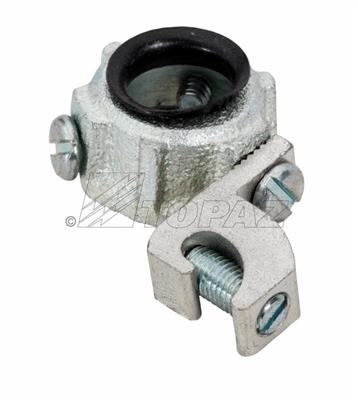

6" Insulated Malleable Iron Metallic Grounding Bushings Threadless – Electrical Grounding Solutions

Insulated metallic grounding bushings are designed for use with aluminum lay-in grounding lugs to terminate conduit service. These bushings are suitable for applications involving copper or aluminum bare ground connectors. The protective thermoplastic throat liners are rated to 105°C to prevent wire insulation damage. Available in threadless set screw models from 1/2” to 6” sizes, these grounding bushings are constructed from high-grade malleable iron for durability and reliability, making them ideal for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers.

Specifications

• Material: Malleable Iron
• Connection: Female Threaded
• Size: 6"
• Product Weight: 1.82 lbs
• Manufacturer: Southwire
• Manufacturer Part #: 340BMSS
• Thermoplastic Liner Temperature Rating: 105°C

Features

• Protective thermoplastic throat liner prevents wire insulation damage
• Threadless set screw design allows locking in any desired position
• Compatible with threaded or threadless rigid conduit or IMC
• Suitable for indoor or outdoor use with aluminum lay-in lug
• Round surface design prevents damage to wire insulation
• UL listed for safety and compliance
• High-grade malleable iron construction with zinc-plated finish

Downloads & Links

• 340BMSS
