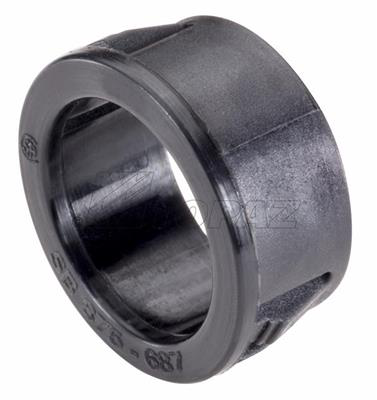

6/6 Nylon Knockout Bushings 1"x1" – Electrical Knockout Protection

Topaz 6/6 Nylon Knockout Bushings provide reliable insulation and mechanical protection for electrical knockouts. Designed for use in electrical distribution, lighting solutions, wire and cable management, and switchgear applications, these bushings convert raw edged holes into smooth, insulated openings. They are suitable for mounting panels up to 1/4" thick and enable fast, snap-in installation with locking fingers that resist push back forces exceeding 35 pounds.

Specifications

• Material: 6/6 Nylon
• Color: Black
• Connection: Female Threaded
• Inside Diameter: 1"
• Knockout Size: 1"
• Product Weight: 0.0110 lbs
• Manufacturer: Southwire
• Manufacturer Part #: SB137516

Features

• Constructed of lightweight, corrosion-proof 6/6 nylon
• Snap-in installation for quick and easy mounting in electrical knockouts
• Smooth rounded surface facilitates easy wire pulling
• Resists wear, abrasion, and vibration damage
• Capable of withstanding push back force greater than 35 pounds
• UL recognized for safety and reliability

Downloads & Links

• Spec Sheet
