5DIW52PBSD, Ceiling Fan
SKU: #104677
Part: #5DIW52PBSD
UPC: 014817576627
5DIW52PBSD, Ceiling Fan
SKU: #104677
Part: #5DIW52PBSD
UPC: 014817576627
Next day delivery
Description

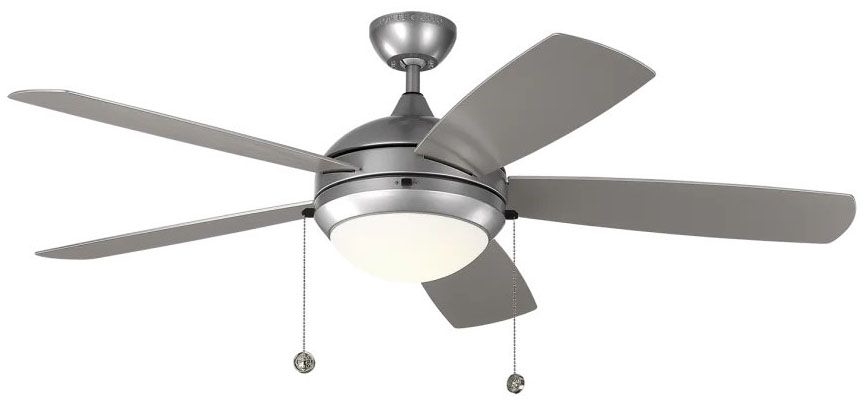

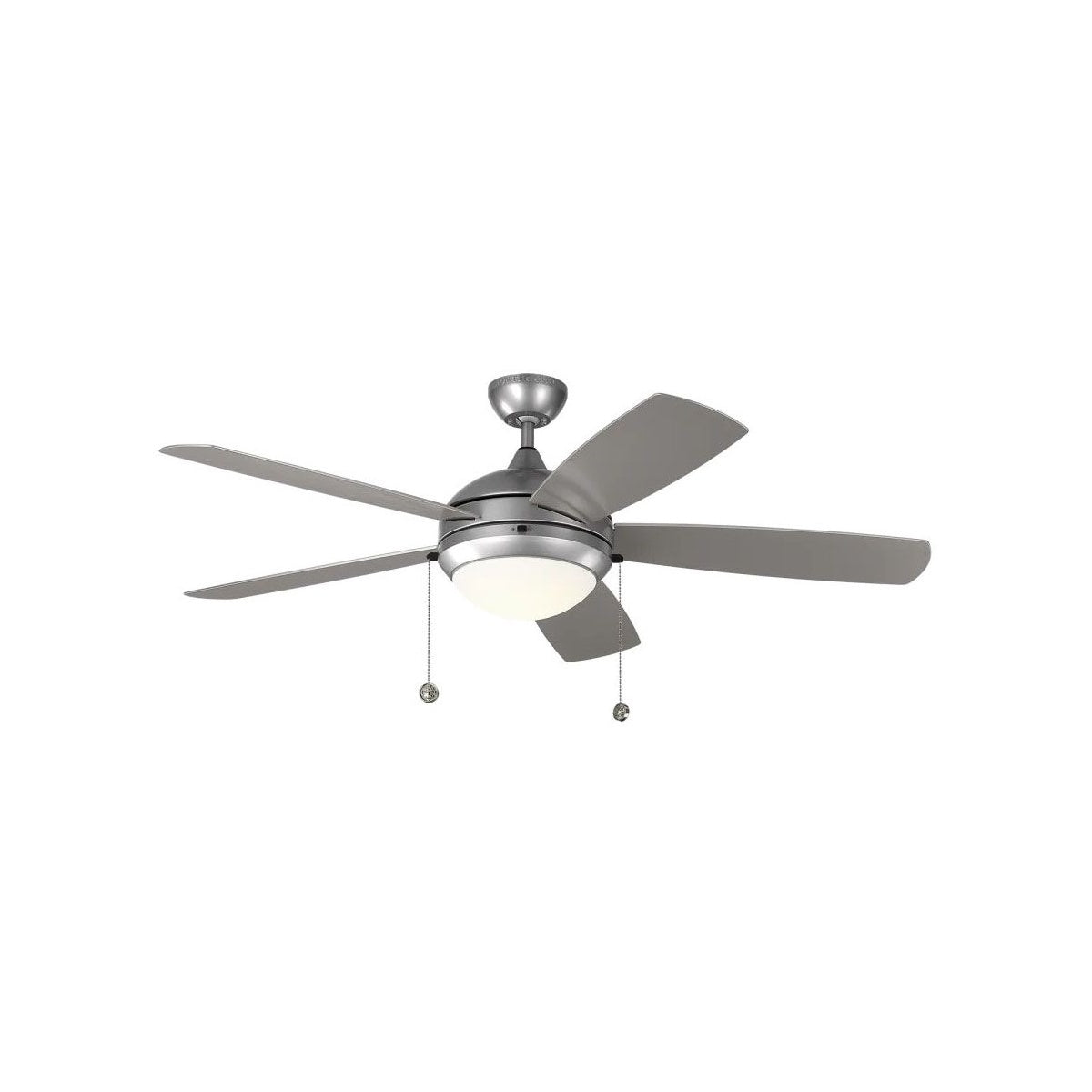

5DIW52PBSD Ceiling Fan - Outdoor Lighting Solutions
The 5DIW52PBSD ceiling fan by Monte Carlo is designed for outdoor use, providing efficient air circulation with a premium power 153 x 18 mm torque-induction motor for quiet operation. This triple capacitor, 3-speed reversible motor ensures versatile speed control and durability, suitable for various outdoor environments. The fan features precision balanced motor and blades to minimize wobble, with a 12-degree blade pitch optimized for effective airflow. An extra-long 6.5-foot lead wire allows compatibility with long downrods, making it adaptable for different ceiling heights. This product is ideal for electrical distributors and lighting solutions providers seeking reliable outdoor ceiling fans with integrated lighting and robust performance.
Specifications
- Manufacturer: Monte Carlo
- Model Number: 5DIW52PBSD
- Blade Sweep Width: 52 Inch
- Motor Size: 153 mm x 18 mm
- Motor Type: Torque-induction, triple capacitor, 3-speed reversible
- Blade Pitch: 12 degrees
- Blade Material: ABS
- Finish: Painted Brushed Steel
- Lead Wire Length: 6.5 feet
- Weight: 25.5 lbs
- Intended Use: Outdoor
- Mounting: Maximum slope angle 30° with included hardware
- Lighting: Integrated downlight, 20W, 715 lumens net, 2700K CCT, CRI 90+
- Controls: Pull chain operation, 3-speed, manual reverse switch
- Energy Use at High Speed: 66 Watts (standard), 41 Watts (weighted average)
- Airflow at High Speed: 4781 CFM (standard), 3415 CFM (weighted average)
- Energy Efficiency: 73 CFM/Watt (standard), 83 CFM/Watt (weighted average)
- Housing Width: 11.1 Inch
- Fixture Drop: 15.1 Inch
- Blade Drop: 10.6 Inch
- Downrod Length: 4.5 Inch (additional lengths available)
Features
- Quiet operation with precision balanced motor and blades
- Triple capacitor motor for reliable 3-speed reversible control
- Designed for outdoor environments with wet rating
- Integrated LED downlight with high color rendering index (CRI 90+)
- Long lead wire accommodates installation with long downrods
- Matte opal glass light diffuser for uniform illumination
- Compatible with slope ceiling canopy kit for angled ceilings
