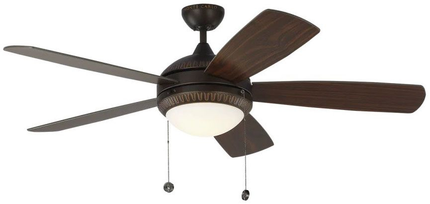

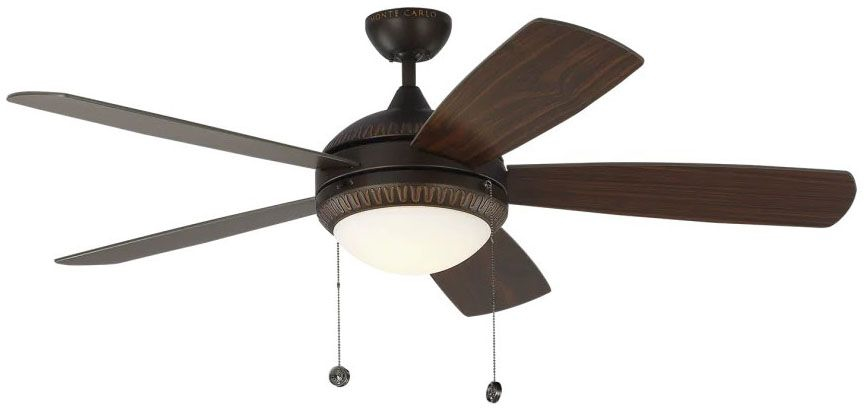

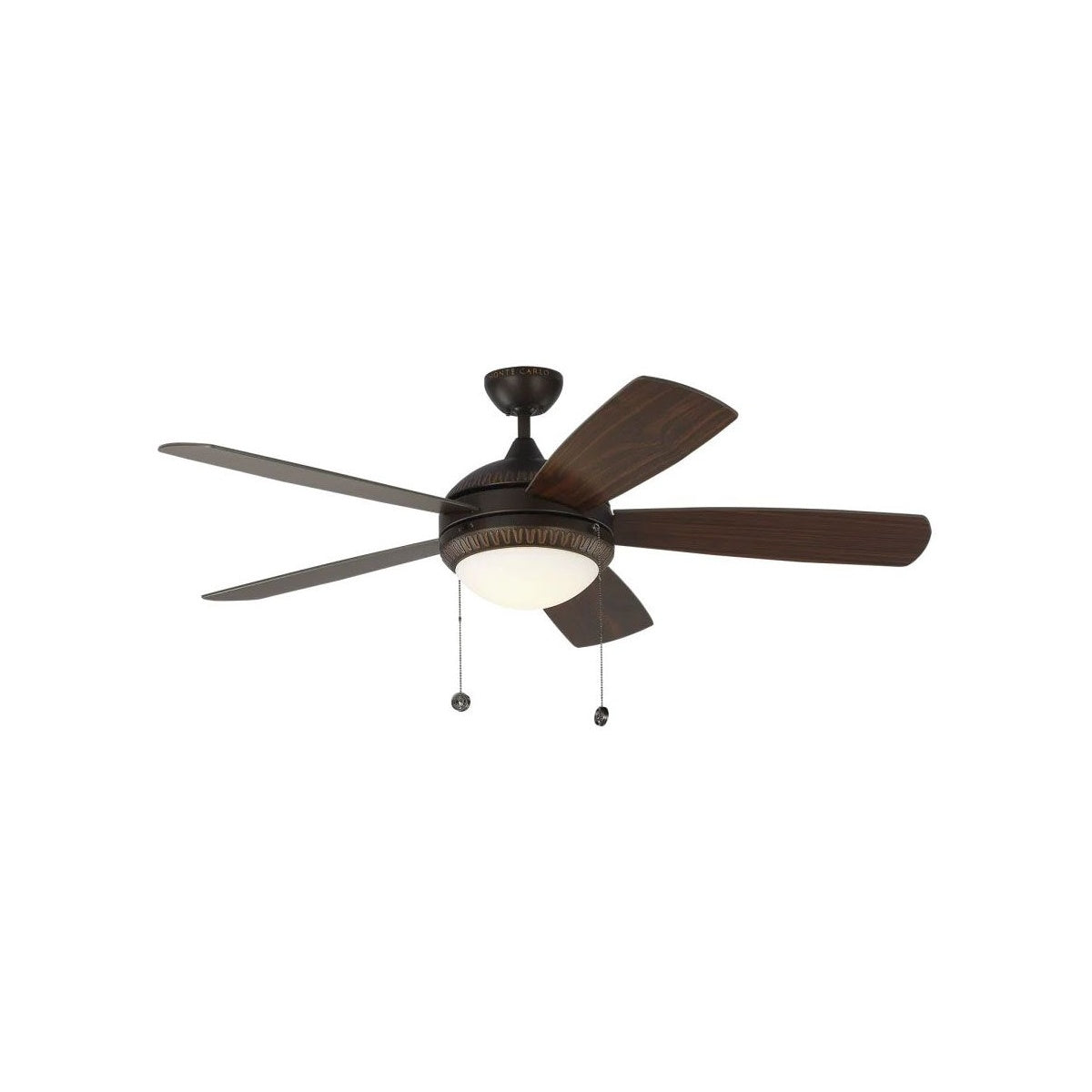

5DIO52RBD Ceiling Fan with Integrated LED Lighting

The 5DIO52RBD Ceiling Fan by Monte Carlo is a 52-inch ceiling fan designed for residential and commercial applications requiring efficient air circulation and integrated lighting. This model features a traditional ornate housing design combined with modern functionality, including a 20W integrated LED downlight producing 715 lumens. It is suitable for use by electrical distributors and lighting solutions providers offering quality ceiling fans with built-in illumination. The fan operates via pull-chain controls with three speeds and a manual reverse switch, providing versatile airflow management.

Specifications

• Blade Sweep: 52 Inch
• Number of Blades: 5
• Blade Material: Plywood
• Blade Finish: Bronze (Blade)
• Integrated Downlight Power: 20W LED
• Light Output: 715 Lumens
• Color Temperature (CCT): 2700K
• Color Rendering Index (CRI): 90+
• Control Type: Pull Chain Operation, 3-speed, Manual Reverse Switch
• Maximum Ceiling Slope: 30° (with included hardware)
• Housing Width: 11.1 Inch
• Fixture Drop: 15.1 Inch
• Blade Pitch: 12°
• Motor Size: 153mm x 18mm
• Weight: 23.8 lbs
• Manufacturer: Monte Carlo
• Manufacturer Part Number: 5DIO52RBD

Features

• Traditional ornate housing design elevates aesthetic appeal
• Integrated LED light with energy-efficient 20W power consumption
• High-quality plywood blades with bronze finish for durability and style
• Pull-chain control with three speeds and manual reverse for flexible airflow direction
• Suitable for ceiling slopes up to 30° with included mounting hardware
