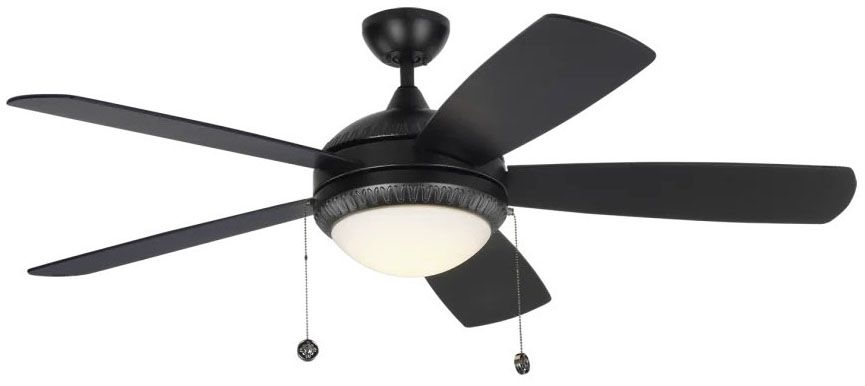

5DIO52BKD Ceiling Fan – Discus Ornate 52 with Integrated LED Light

The 5DIO52BKD Ceiling Fan by Monte Carlo is a 52-inch matte black ceiling fan designed for residential and commercial lighting and air circulation applications. Featuring a traditional ornate housing detail, this fan integrates a 20W LED downlight providing 715 lumens of light output with a color temperature of 2700K and CRI above 90 for quality illumination. It operates via a pull chain with three-speed settings and includes a manual reverse switch for seasonal airflow control. This model is suitable for installation on ceilings with slopes up to 30°, making it a versatile option for various interior environments. Electrical distributors and lighting solution providers will find this fan ideal for combining efficient air movement with integrated lighting in wire and cable installations and switchgear setups.

Specifications

• Blade Sweep: 52 inches
• Number of Blades: 5
• Blade Pitch: 12°
• Blade Material: Plywood
• Finish: Matte Black Housing and Blades, Matte Opal Glass
• Integrated LED Downlight: 20W, 715 Lumens Net
• Color Temperature (CCT): 2700K
• Color Rendering Index (CRI): 90+
• Mounting: Maximum Ceiling Slope 30° with Included Hardware
• Controls: Pull Chain Operation, 3-Speed, Manual Reverse Switch
• Motor Size: 153mm diameter x 18mm height
• Fixture Drop: 15.1 inches
• Blade Drop: 10.6 inches
• Housing Width: 11.1 inches
• Downrod Length: 4.5 inches (additional lengths available separately)
• Product Weight: 23.6 lbs

Features

• Traditional ornate detailing on housing for enhanced design
• Integrated LED light source for energy-efficient illumination
• Pull chain control with three fan speeds for customizable airflow
• Manual reverse switch enables seasonal airflow adjustment—forward for cooling, reverse for heating
• Matte black finish on housing and blades with matte opal glass for a cohesive aesthetic
• Durable plywood blades with 12° pitch for optimal air movement
• Suitable for ceilings with slopes up to 30°, increasing installation versatility
• Motor with permanently lubricated bearings requiring no oiling
• Maintenance-friendly design with sealed lacquer plating to minimize discoloration or tarnishing
