5DIO52AGPD Ceiling Fan – Lighting Solutions

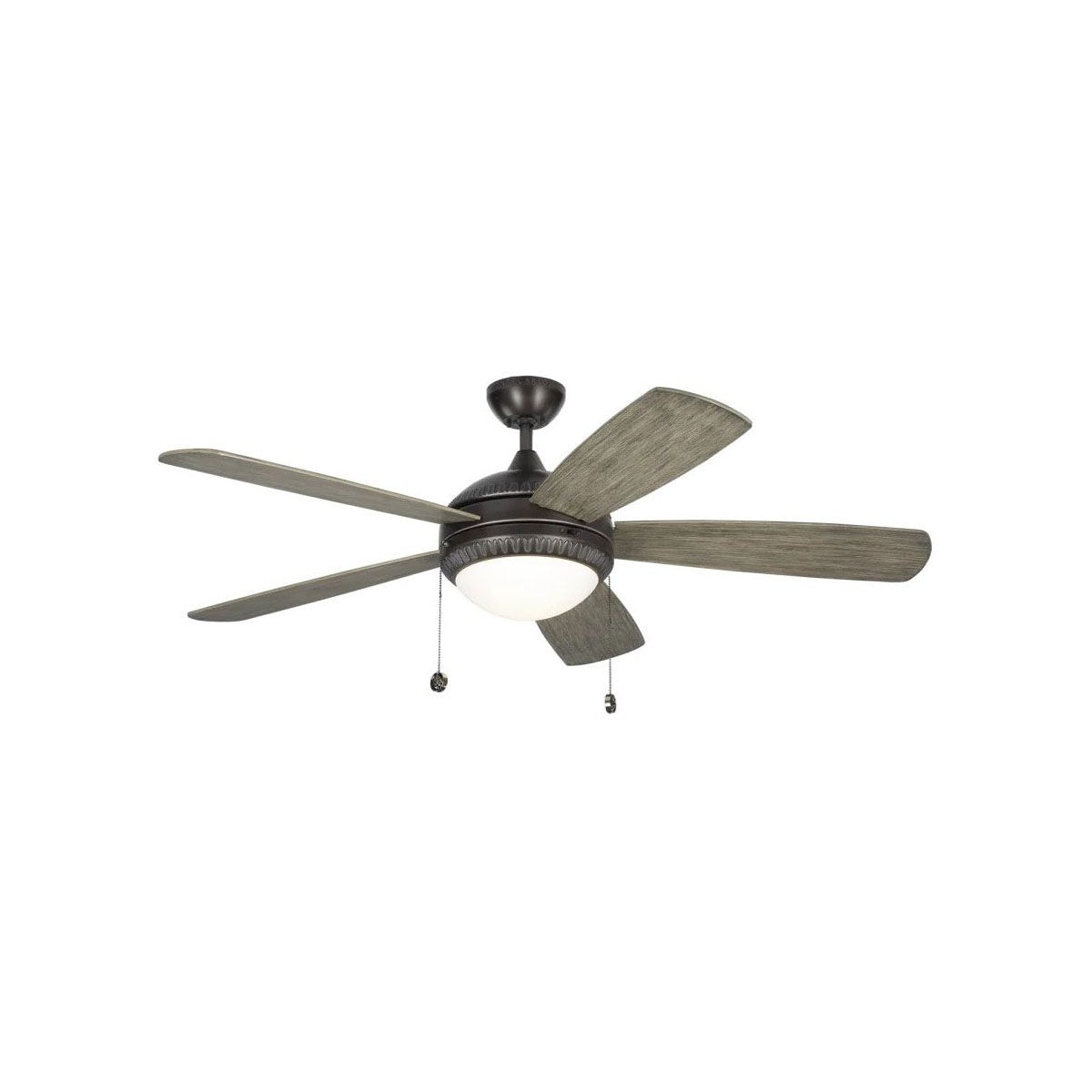

The 5DIO52AGPD Ceiling Fan by Monte Carlo is a 52-inch ceiling fan designed to provide efficient air circulation combined with integrated lighting. This model features a traditional ornate housing design in aged pewter finish, suitable for residential and commercial environments requiring both lighting and ventilation. The fan is ideal for electrical distributors and lighting solutions providers seeking a reliable ceiling fan with integrated LED lighting and manual controls.

Specifications

• Blade Sweep: 52 Inch
• Number of Blades: 5
• Blade Pitch: 12°
• Blade Material: Plywood
• Housing Finish: Aged Pewter
• Integrated Light Wattage: 20W LED
• Light Output: 715 Lumens Net
• Color Temperature (CCT): 2700K
• Color Rendering Index (CRI): 90+
• Mounting: Maximum Ceiling Slope 30° with Included Hardware
• Controls: Pull Chain Operation with 3 Speeds and Manual Reverse Switch
• Fixture Width: 11.1 Inch
• Fixture Drop: 15.1 Inch
• Blade Drop: 10.6 Inch
• Downrod Length: 4.5 Inch (additional lengths available)
• Motor Size: 153mm x 18mm
• Product Weight: 23.6 lbs
• UPC: 014817576559

Features

• Traditional ornate housing design enhancing aesthetic appeal
• Integrated 20W LED downlight providing energy-efficient illumination
• High lumen output of 715 lumens with warm 2700K color temperature
• Five plywood blades with a 12° pitch for optimized airflow
• Manual pull chain operation with three fan speeds and reversible airflow
• Compatible with slope ceilings up to 30° using included hardware
• Durable aged pewter finish housing with light grey weathered oak blades
