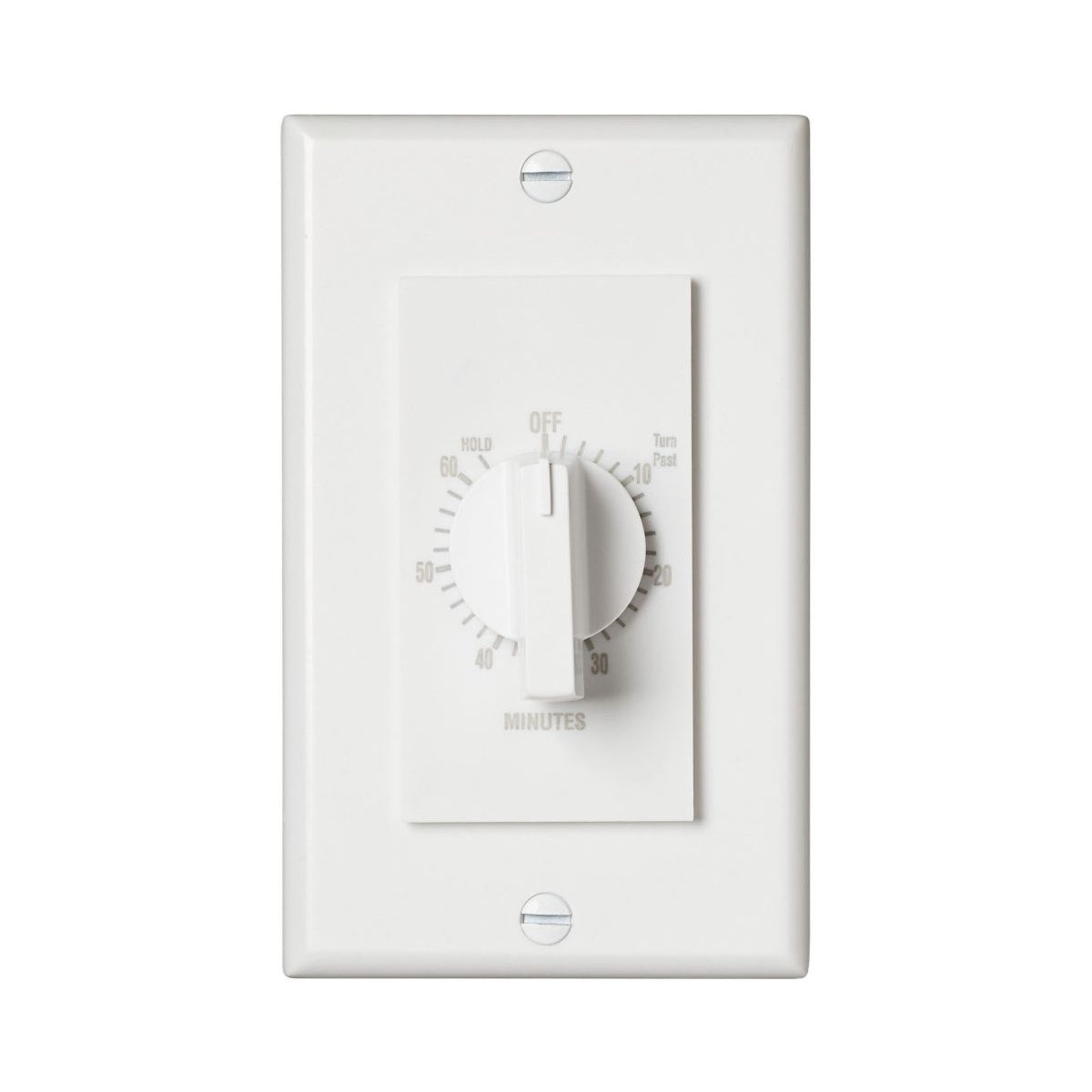

59W Ventilation Fan Time Control Switch

The 59W Ventilation Fan Time Control Switch by Broan is designed to operate ventilation fans with precise timing control. Suitable for use in electrical distribution and lighting solutions, this switch provides timed or continuous operation of fans, enhancing energy efficiency and user convenience. It fits standard single-gang switch boxes and is compatible with Broan heaters and fans within specified Amp ratings, making it a reliable component for electrical distributors and switchgear suppliers.

Specifications

• Manufacturer: Broan
• Model Number: 59W
• Voltage: 120V
• Current Capacity: 20 Amp (120V) or 10 Amp (240VAC)
• Time Control Range: Up to 60 minutes
• Fits: Single-gang box
• Color: White
• Product Weight: 0.4 lb
• Compatible with all Broan heaters and fans within Amp ratings

Features

• Operates ventilation fans continuously or for any set period up to 60 minutes
• Simple dial timer with "OFF" and "HOLD" positions for continuous operation
• Designed with Normally Open (NO) and Normally Closed (NC) contacts for flexible wiring
• Easy installation with color-matched oval head screws and standard switch plate
• Includes a D-shaped shaft knob for secure dial adjustment
• Meets electrical code requirements for safe wiring and grounding

Downloads & Links

• Installation/Operator
• Specification/Technical
